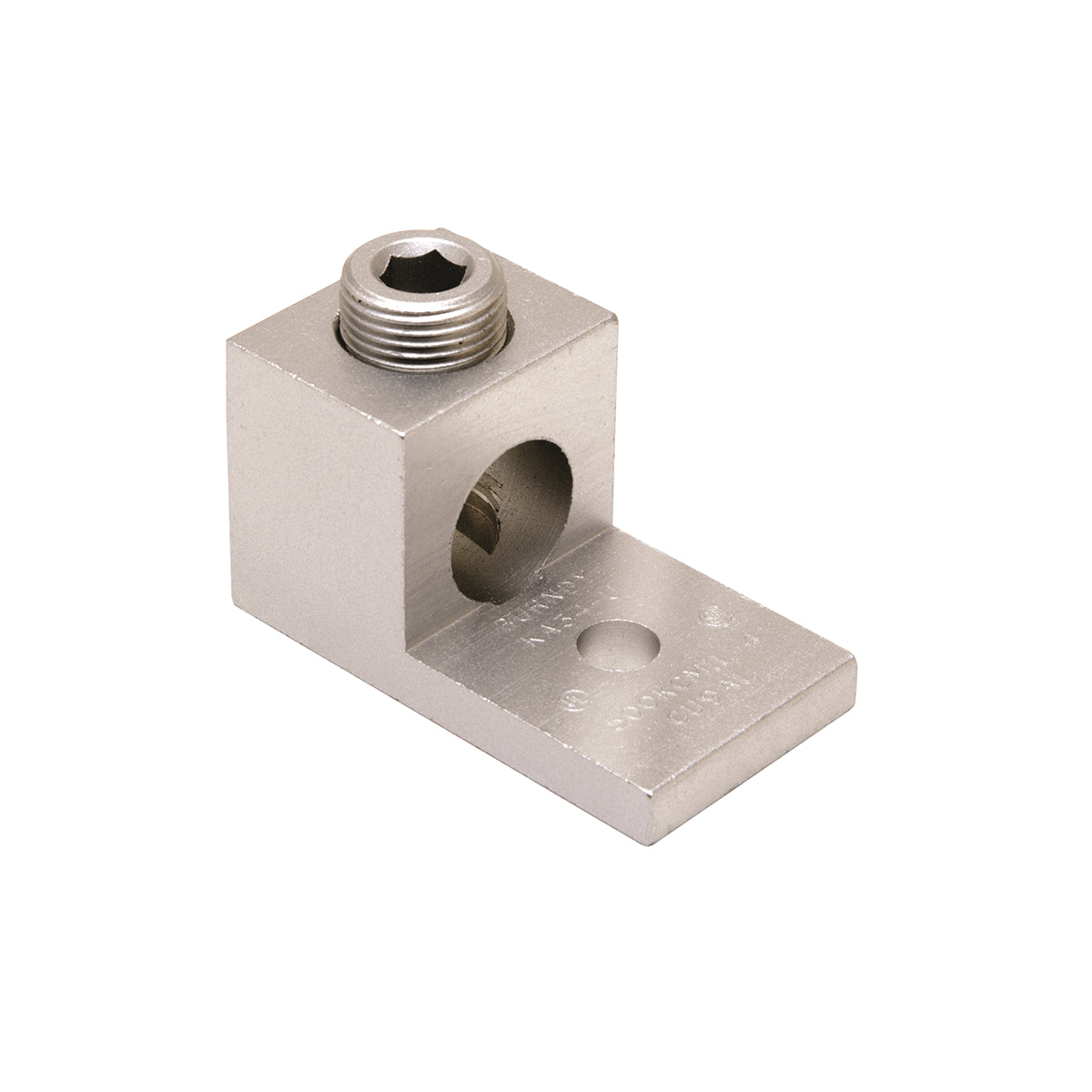

Hubbell KA30U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 300 kcmil Aluminum/Stranded Copper Conductor, 1/4 in Stud

Product Description

The Hubbell KA30U is a dual rated universal mechanical bolted lug and terminal designed for both aluminum and stranded copper conductors. Its application spans a range from six AWG to three hundred kcmil. This terminal ensures a strong connection with a quarter-inch stud and features a single bolt hole for secure attachment.

• Made for aluminum and copper conductors.
• Supports conductor sizes from six AWG to three hundred kcmil.
• Electro-zinc plated finish for corrosion resistance.

Product Highlights

Ideal for commercial electrical connections, the KA30U is compliant with multiple standards, ensuring safety and reliability in installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: KA30U

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 6 AWG to 300 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Dimensions: 2 in L x 1.12 in H
• Finish: Electro-Zinc Plated
• Material: Aluminum
• Number of Bolt Holes: 1
• Series: KA-U
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A/486B Certified, Buy American Act Compliant
• Stud Size: 1/4 in
• Temperature Rating: 194 deg F
• Tongue Size: 1.02 in W x 0.25 in THK
• Tongue Type: Straight
• Torque Rating: 275 in-lb
