Product Description

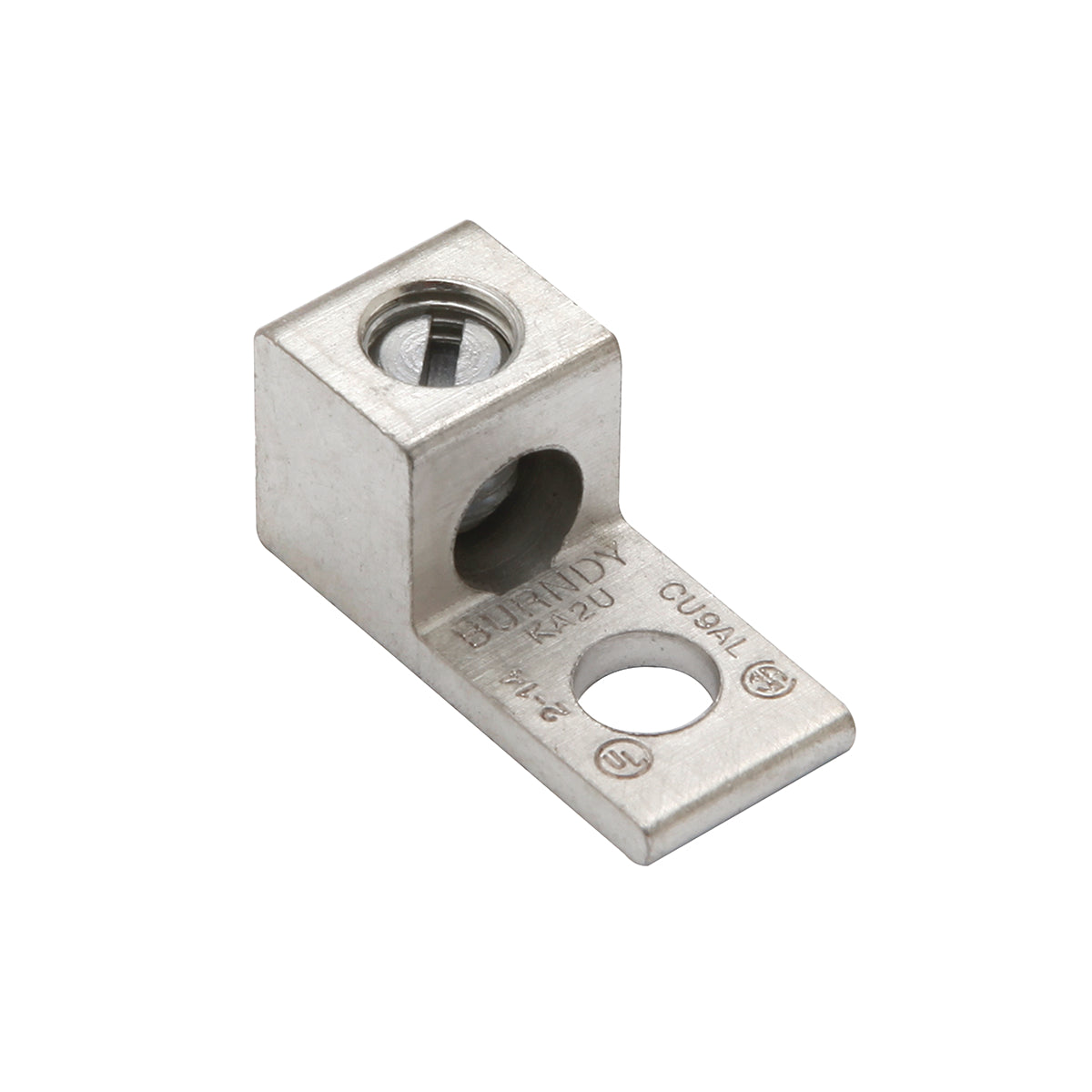

The Hubbell KA2U is a mechanical bolted lug and terminal designed for aluminum and copper conductors. It supports conductor sizes ranging from fourteen to two AWG. The lug is equipped with a quarter-inch stud and one bolt hole, making it simple to install.
- Suitable for dual-rated applications
- Constructed from high-strength aluminum alloy
- Electro-zinc plated for low contact resistance
Product Highlights
This mechanical lug is part of the KA-U series, known for its versatility in connecting conductors efficiently.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: KA2U
Technical Specifications
-
Application: For aluminum and copper conductors
-
Conductor Size: 14 to 2 AWG
-
Material: Aluminum
-
Stud Size: 1/4 in
-
Voltage Rating: 600 V
-
Temperature Rating: 194 deg F
-
Dimensions: 1.16 in L x 0.55 in H
-
Finish: Electro-Zinc Plated
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA Certified
