Hubbell KA29U KA-U BUR Al.Term.Lug 6-250MCM ALCU W/5/16Stud Hole

Product Description

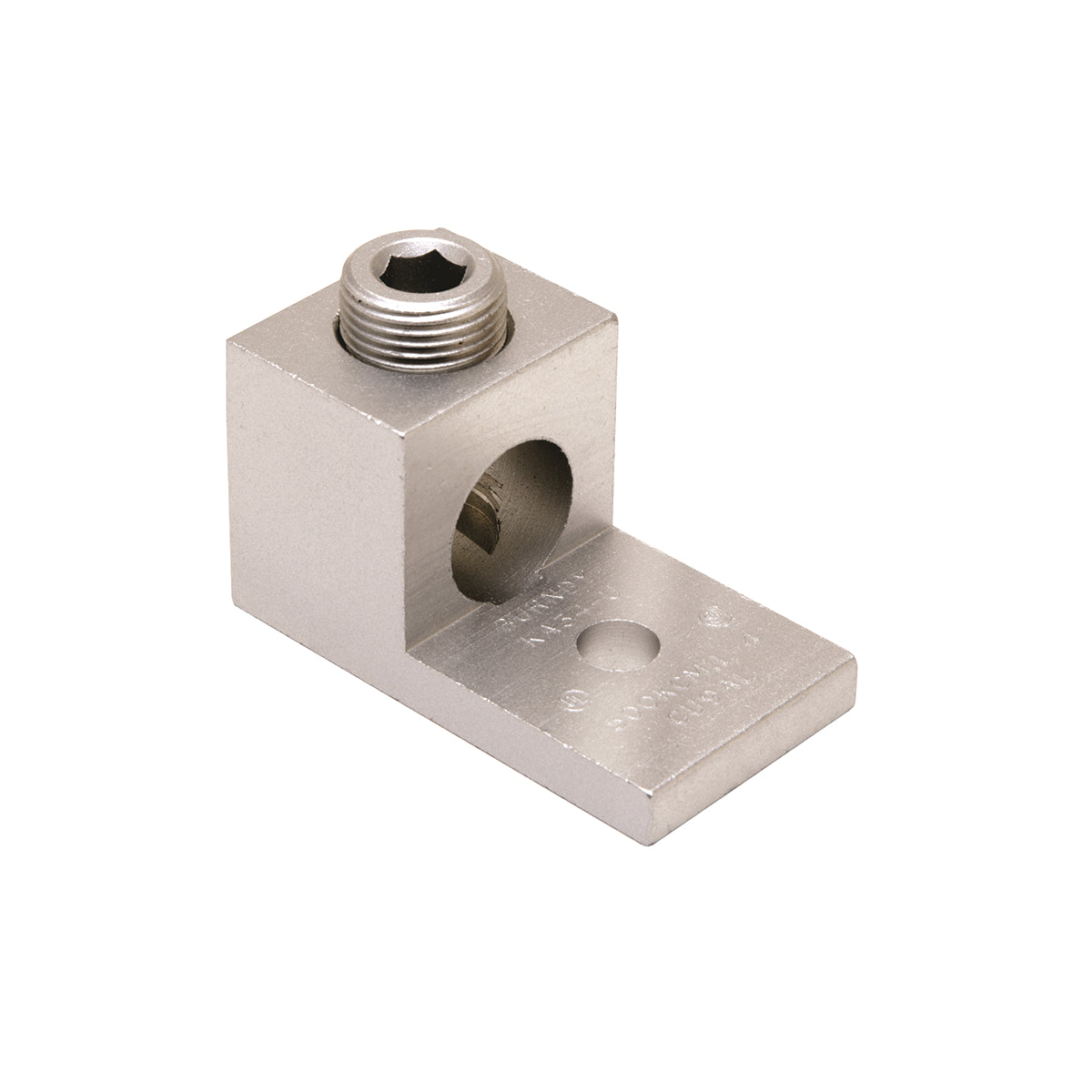

The Hubbell KA29U is a mechanical bolted lug and terminal designed for connecting aluminum and stranded copper conductors. This type KA-U dual rated universal lug accommodates cable sizes from six AWG to two hundred fifty kcmil. It features a five-sixteenth inch stud with one bolt hole for secure attachment.

• Compatible with aluminum and copper conductors
• Temperature rated up to one hundred ninety-four degrees Fahrenheit
• Electro-TiN coated for increased durability

Product Highlights

This product is ideal for HVAC and electrical applications requiring reliable connections.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Conductor Size: Six AWG to two hundred fifty kcmil

Technical Specifications

• Conductor Type: Aluminum/Stranded Copper
• Dimensions: Two inches length x one inch width
• Finish: Electro-TiN Coated
• Manufacturer Part Number: KA29U
• Material: Aluminum
• Number of Bolt Holes: One
• Specifications: One-Conductor, one screw
• Standards/Approvals: UL 468A/468B, CSA Certified, AL9CU Rated, ARRA Compliant, RoHS Compliant, BAA Compliant
• Stud Size: Five-sixteenth inch
• Temperature Rating: One hundred ninety-four degrees Fahrenheit
• Tongue Size: Zero point nine four inches length x one point zero two inches width x zero point two five inches thick
• Type: Type KA-U Dual Rated Universal
