Product Description

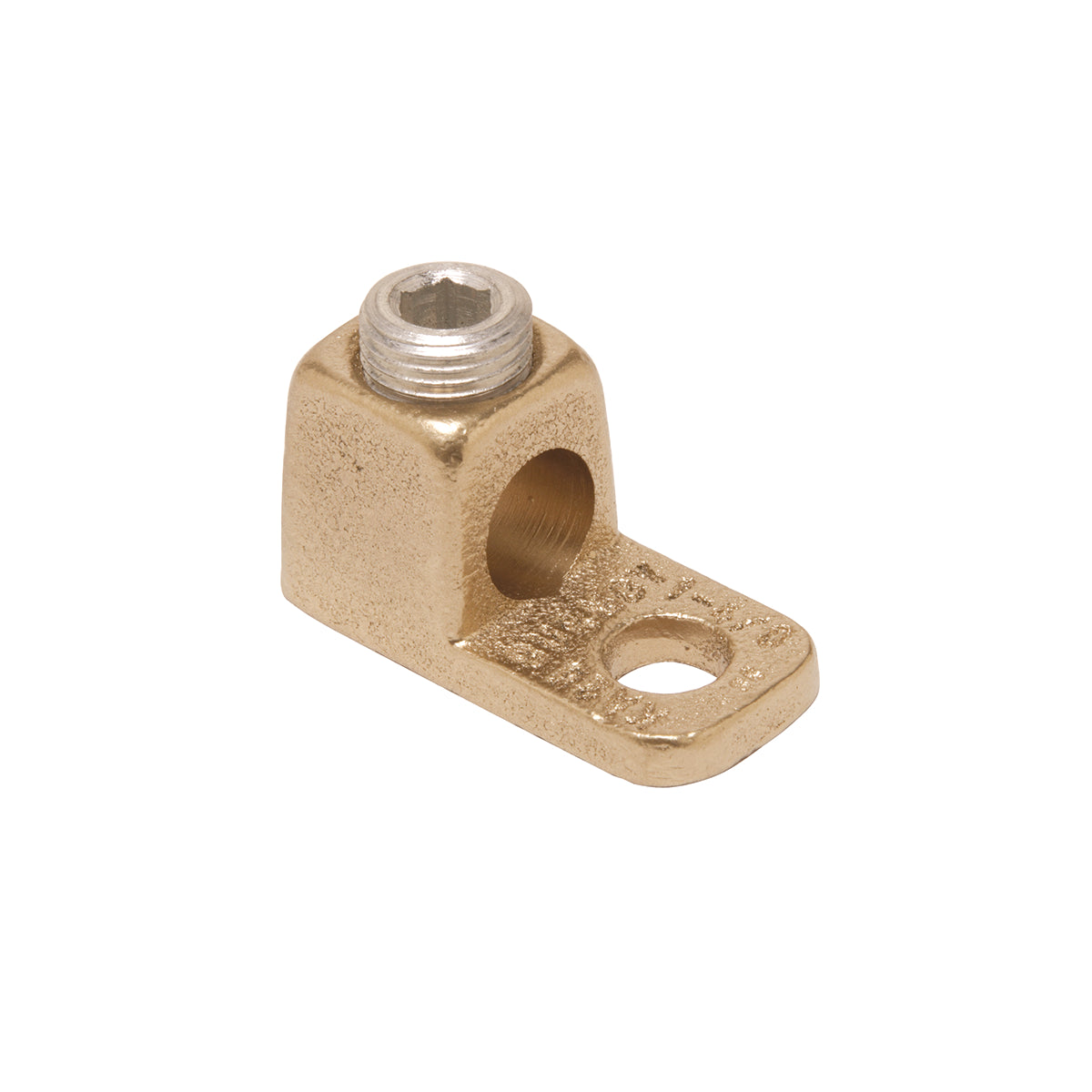

Hubbell KA28 is a mechanical bolted lug designed for use with stranded copper conductors ranging from one to four awg. It has a three eighths inch stud and includes one bolt hole for secure fastening. The tongue dimensions are one point nine three seven inches wide by point one nine inches thick. This sturdy product is ideal for electrical tasks that require reliable connectivity.
- Compatible with stranded copper conductors
- Suitable for use with a three eighths inch stud
- Designed for electrical applications requiring secure lugs
Product Highlights
This lug provides durable connections for both residential and commercial electrical setups.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181036485
Technical Specifications
-
Application: For copper cable, joining a wide range of cable to equipment pads or terminal blocks and light industrial
-
Conductor Size: 1 to 4/0 AWG
-
Conductor Type: Stranded Copper
-
Dimensions: 1-15/16 in L x 1-1/4 in H
-
Finish: Electro-Zinc Plated
-
Includes: 1-Hole of 27/64 in and 46/73 in Screw
-
Manufacturer Part Number: KA28
-
Material: Copper
-
Number of Bolt Holes: 1
-
Series: KA Series
-
Specifications: 0.81 in L Collar, Hex Screw, 275 in-lb Installation Torque, 5/8 in Bolt
-
Standards/Approvals: RoHS Compliant, UL 468A/468B, UL 486A, UL 486B
-
Stud Size: 3/8 in
-
Temperature Rating: 194 deg F
-
Tongue Size: 1.937 in W x 0.19 in THK
-
Tongue Type: Straight
-
Type: Mechanical
