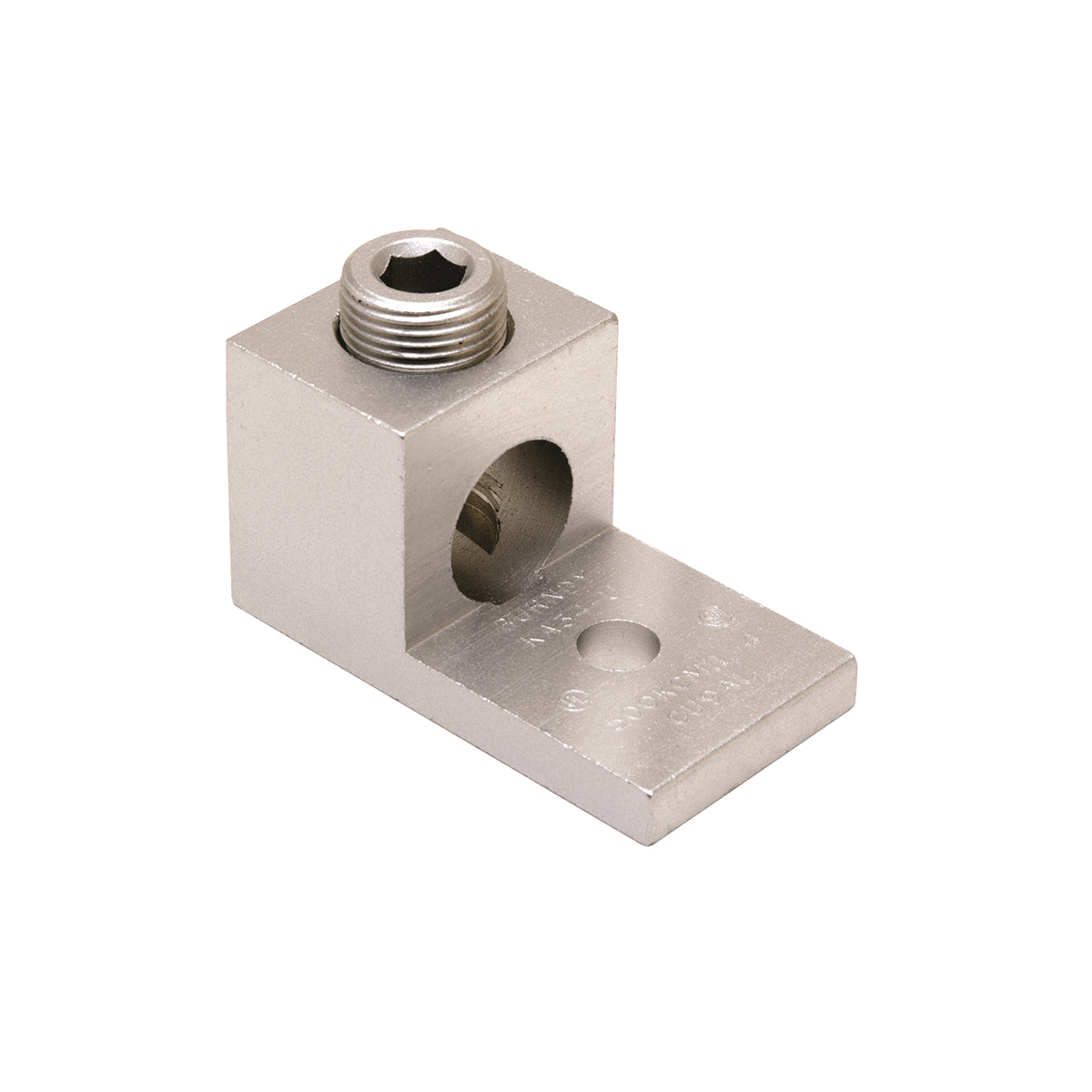

Hubbell KA26U KA-U Mechanical Terminal Lug 6 to 2/0 Stranded Copper/Aluminum with 1/4 Stud

Product Description

The Hubbell KA26U is a mechanical bolted lug designed for use with both copper and stranded aluminum conductors. It accommodates conductor sizes from six to two/zero AWG and features a quarter-inch stud. This product is part of the KA-U series and ensures a secure connection with minimal resistance.

• Fits conductors from 6 to 2/0 AWG
• Constructed with high-strength aluminum alloy
• Electro-zinc plating for corrosion resistance

Product Highlights

This terminal lug offers durability and reliability for electrical connections in a variety of applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: Mechanical Terminal Lug

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 6 to 2/0 AWG
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 1.47 in L x 0.63 in W
• Finish: Electro-Zinc Plated
• Series: KA-U
• Stud Size: 1/4 in
• Temperature Rating: 194 deg F
