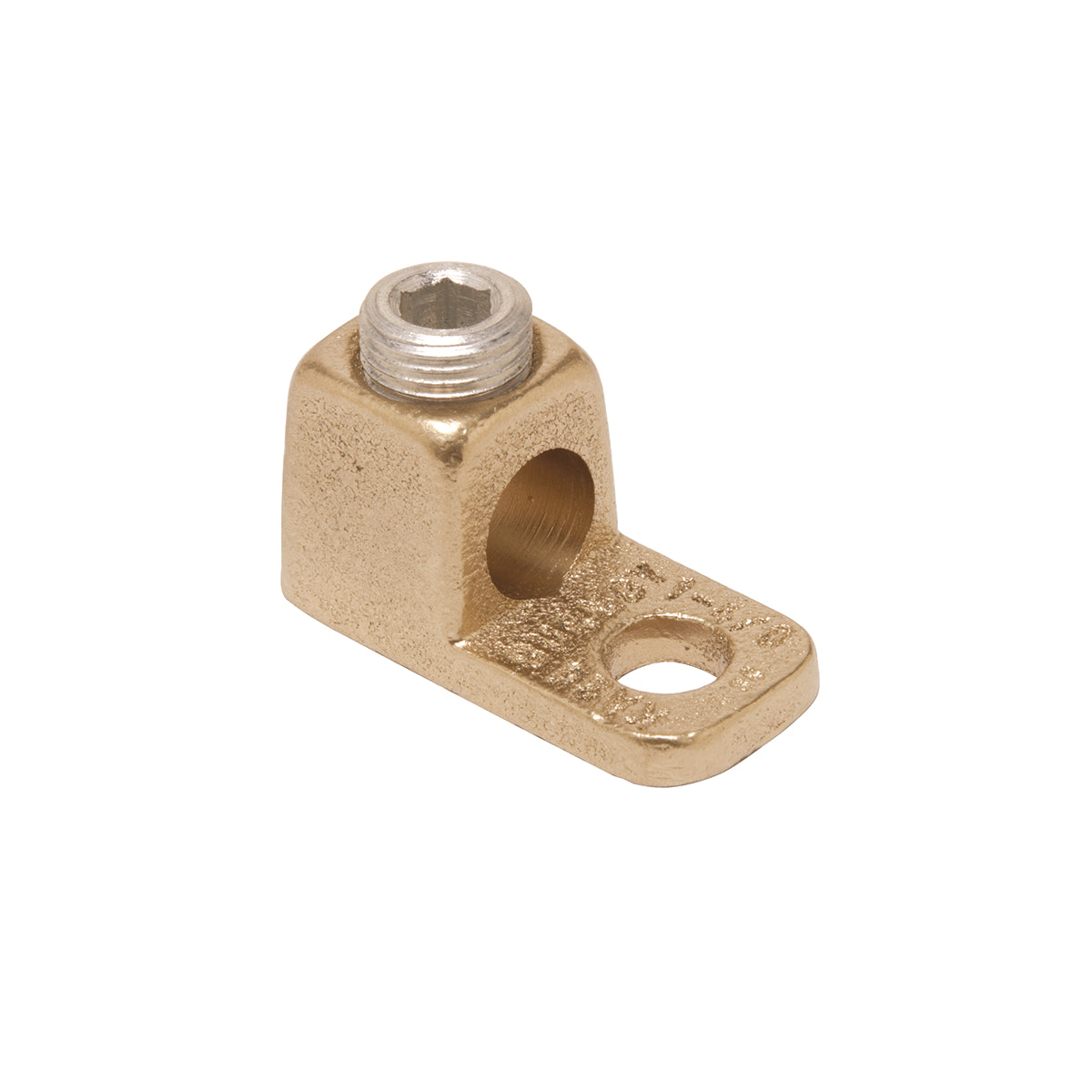

Hubbell KA25 Ka-Lug Mechanical Terminal Lug 4-1/0 AWG Stranded Copper 3/8 in Stud

Product Description

The Hubbell KA25 is a mechanical bolted lug designed for stranded copper conductors sized four to one aught AWG. This product features a three eighths inch stud and one bolt hole, suitable for various electrical connection needs.

• Compatible with copper cable for effective joining to equipment pads or terminal blocks.
• Dimensions of one point six eight seven five inches in length and zero point nine four inches in height.
• Electro-zinc plated for enhanced durability and corrosion resistance.

Product Highlights

This lug is built for reliable electrical connections in light industrial applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181036350

Technical Specifications

• Conductor Size: 4 to 1/0 AWG
• Conductor Type: Stranded Copper
• Stud Size: 3/8 in
• Number of Bolt Holes: 1
• Finish: Electro-Zinc Plated
• Temperature Rating: 194 deg F
• Specifications: (1) Hex Screw, 0.69 in L Collar, 200 in-lb Installation Torque
• Standards/Approvals: RoHS Compliant, UL 468A/468B
• Tongue Size: 0.75 in W x 0.13 in THK
• Tongue Type: Straight
• Dimensions: 1.6875 in L x 0.94 in H
