Hubbell K4A29U4N Burndy K4A-U Universal Terminal Lug Conductor 6 AWG to 250 kcmil 1/2 in Stud

Product Description

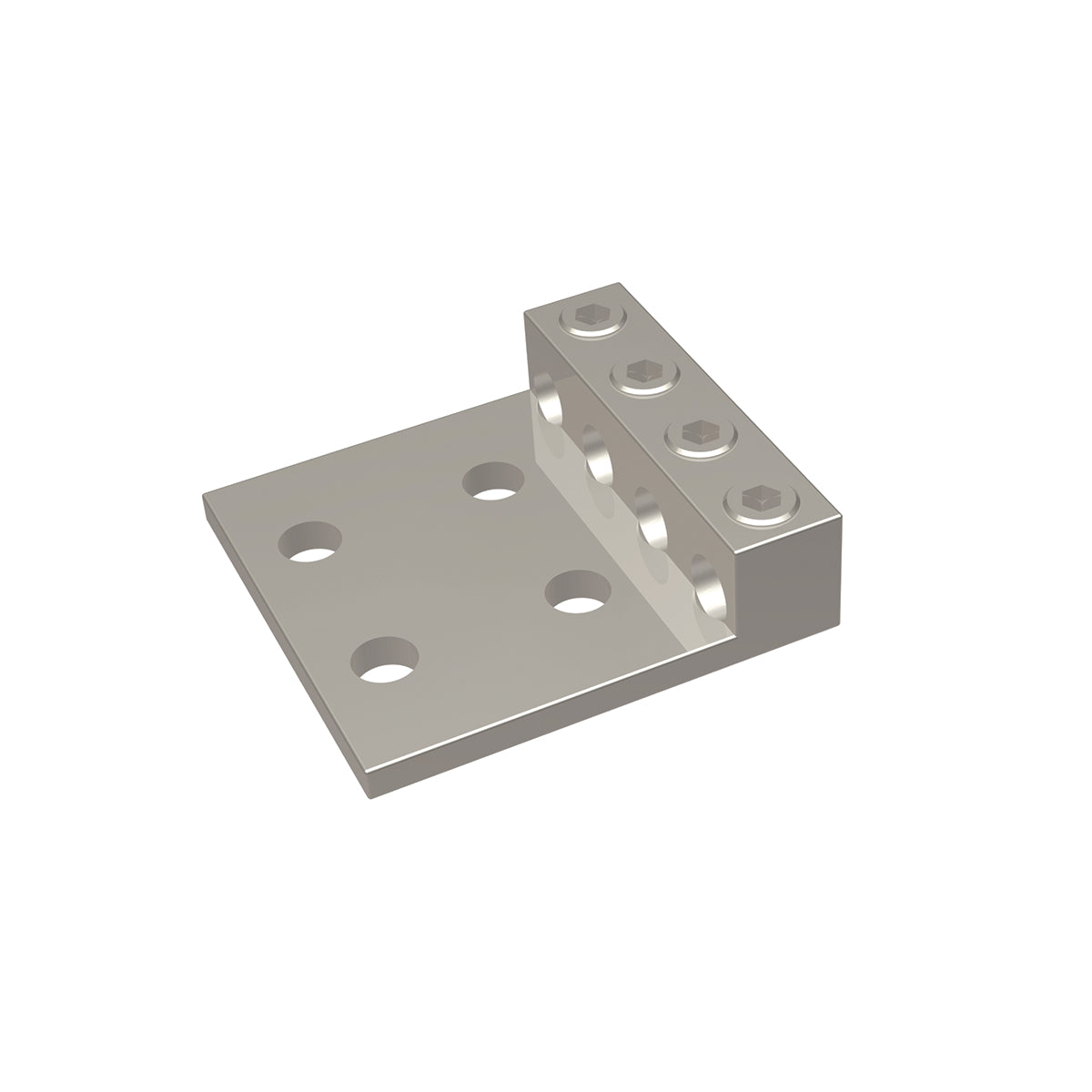

The Hubbell K4A29U4N is a universal terminal lug designed for use with aluminum and stranded copper conductors. It accommodates conductor sizes ranging from six AWG to two hundred fifty kcmil and features a half-inch stud with four bolt holes. This terminal lug is made of high strength aluminum alloy and comes tin plated to ensure low contact resistance.

• Accommodates conductor sizes from 6 AWG to 250 kcmil
• Constructed from aluminum alloy with electro-zinc plating
• Features 4 bolt holes and standard NEMA stud holes

Product Highlights

This product is built for reliable electrical connections in various applications, making it ideal for commercial and industrial usage.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Burndy

Technical Specifications

• Conductor Size: 6 AWG to 250 kcmil
• Material: Aluminum Alloy
• Stud Size: 1/2 inches
• Number of Bolt Holes: 4

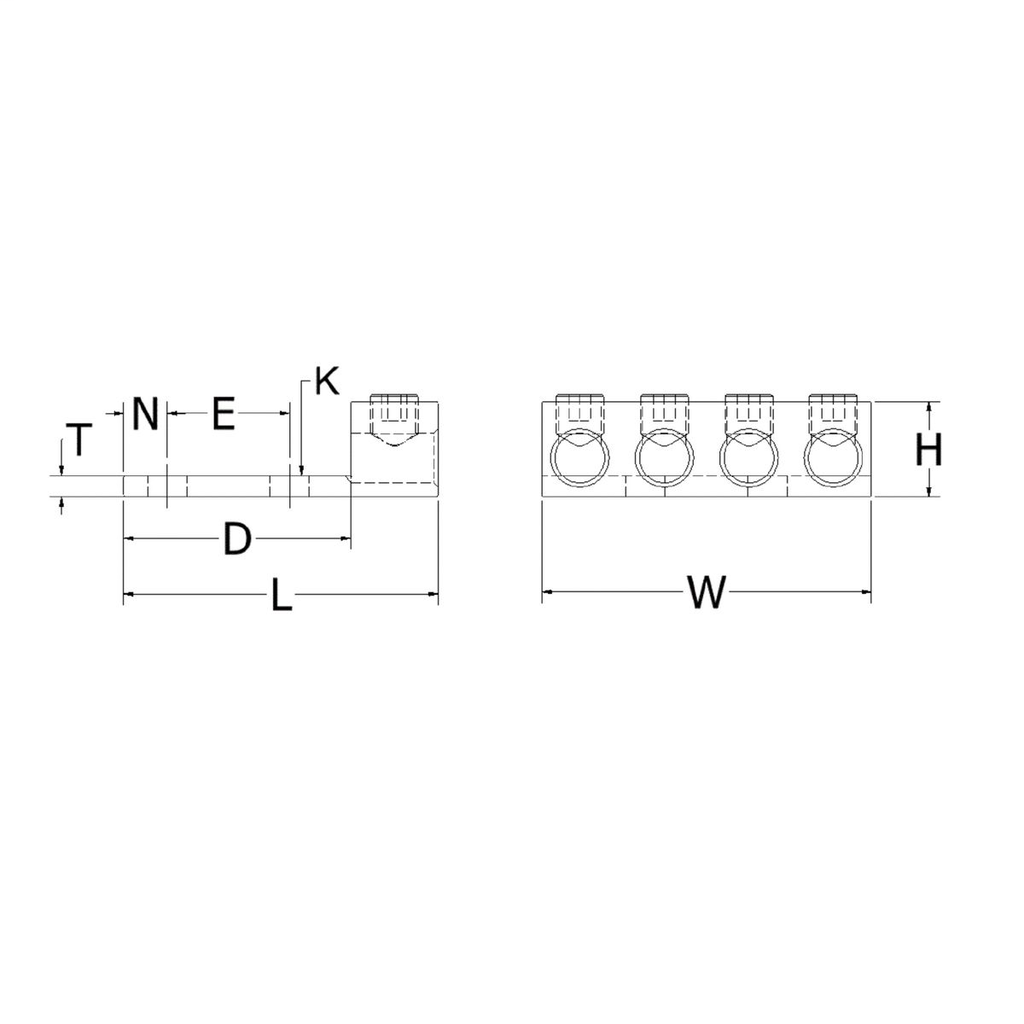

• Dimensions: 4.25 inches L x 3.69 inches W x 1.19 inches H
• Temperature Rating: 194°F
• Application: Suitable for both aluminum and copper conductors
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 467, CSA Certified
