Hubbell K3A36U2N BUR Three:2STR-600 Dual Rate

Product Description

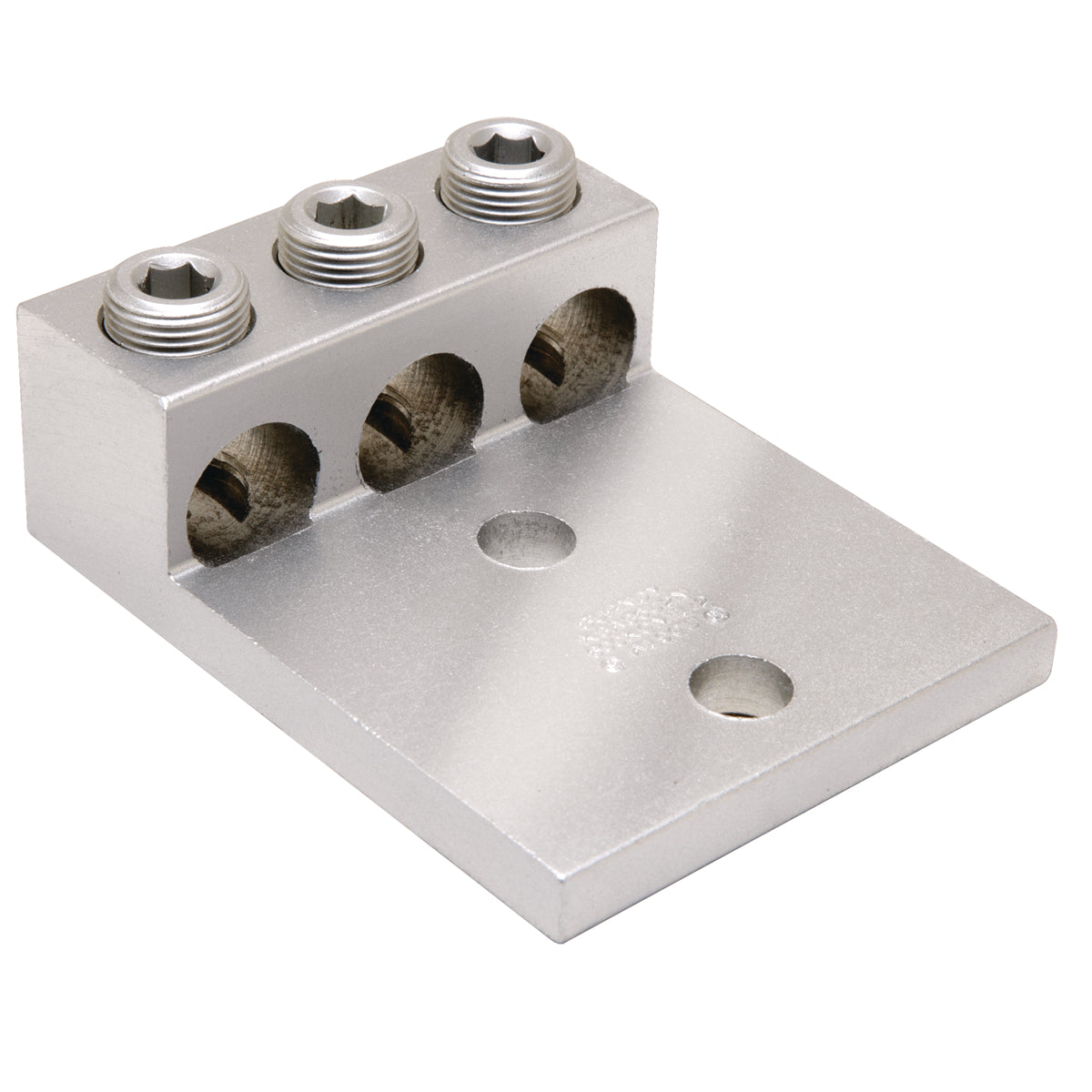

The Hubbell K3A36U2N is a dual-rated mechanical bolted lug designed for reliable connections in electrical systems. This product is suitable for copper and stranded aluminum conductors ranging from two AWG to six hundred kcmil. The lug features a half-inch stud and two bolt holes, ensuring secure mounting and stability.

• Dual rated for both copper and aluminum conductors.
• Dimensions are four point six nine inches long by three point six three inches wide.
• Constructed from aluminum with a TiN coating for durability.

Product Highlights

Ideal for electrical applications requiring strong connections, the K3A36U2N offers versatility with a straight tongue design and is compliant with various safety standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181060120

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 2 AWG to 600 kcmil
• Material: Aluminum
• Finish: TiN Coated
• Stud Size: 1/2 in
• Temperature Rating: 194 deg F
