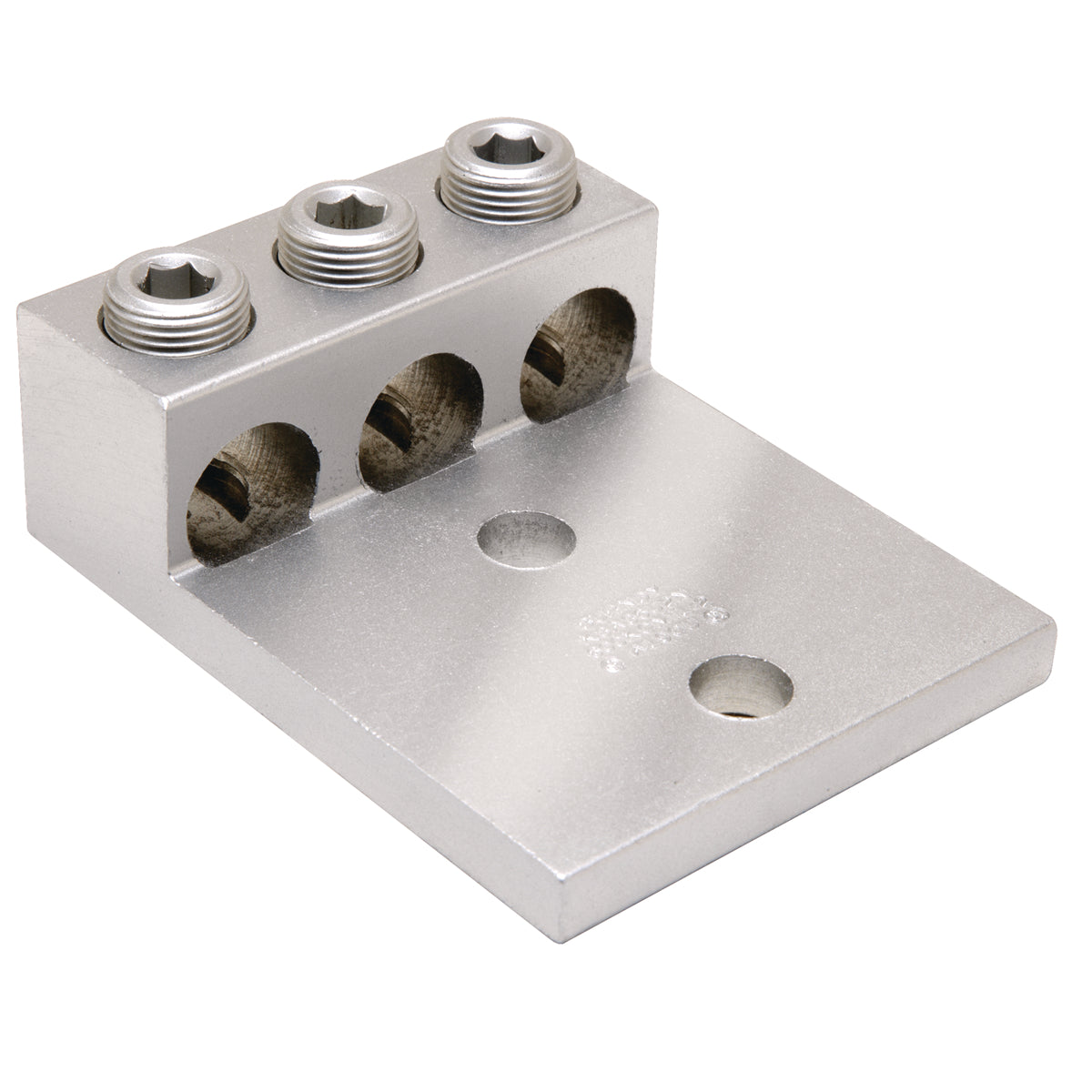

Hubbell K3A29U2N BURNDY THREE:6STR-250 DUAL RATE 78181060110

Product Description

The Hubbell K3A29U2N is a mechanical bolted lug and terminal designed for universal applications. This dual rated product accommodates copper and stranded aluminum conductors ranging from six AWG to two hundred fifty kcmil. It features a half-inch stud and two bolt holes for secure mounting.

• Suitable for aluminum and copper conductors
• Durable aluminum construction with TiN coating
• Fits standard NEMA stud holes

Product Highlights

Designed to provide a reliable electrical connection, the K3A29U2N is efficient for commercial and industrial use.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: K3A29U2N

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 4 inches L x 2.81 inches W
• Finish: TiN Coated
• Material: Aluminum
• Number of Bolt Holes: 2
• Series: K3A-U
• Standards/Approvals: UL 468A/468B, CSA Certified, UL 486A, UL 486B
• Stud Size: 1/2 inches
• Temperature Rating: 194 degrees F
• Tongue Size: 3.01 inches W x 0.31 inches THK
• Tongue Type: Straight
• Specifications: 1.19 inches H x 2.81 inches W Collar
