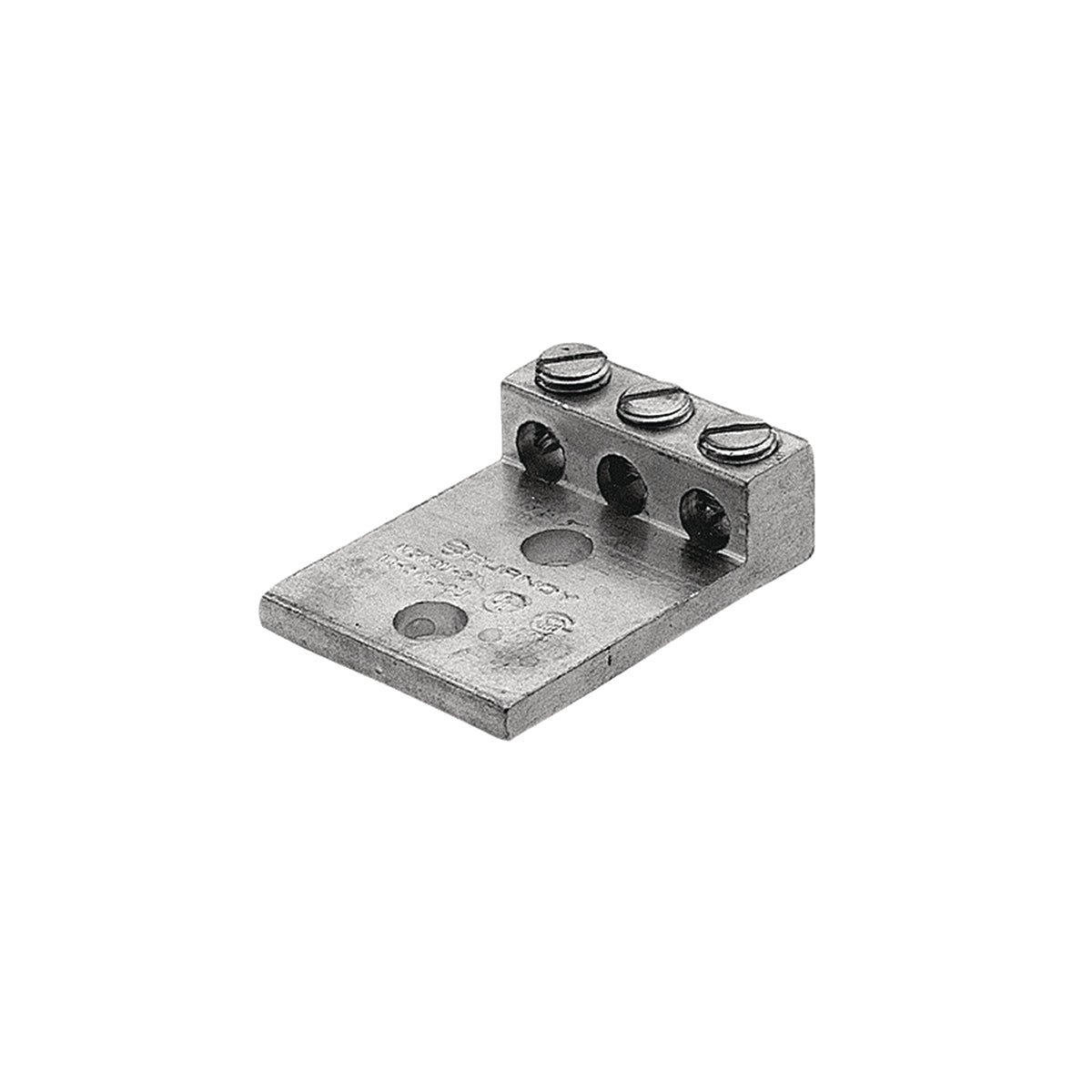

Hubbell K3A25U2 Aluminum Universal Terminal, 3 Conductor, 2 Hole, 14-1/0 AWG (Str), 3/8 inches Stud, 1 inches Stud Hole Spacing

Product Description

The HUBBELL K3A25U2 is an aluminum universal terminal, designed as a 3-conductor, 2-hole lug suitable for 14-1/0 AWG (Str) conductors. It features a 3/8" stud and 1" stud hole spacing. Constructed from high-strength aluminum alloy and electro tin-plated, it ensures low contact resistance. This terminal is Al/Cu rated for versatile use.

• Aluminum Universal Terminal
• Suitable for 14-1/0 AWG (Str) conductors
• Features a 3/8" stud and 1" stud hole spacing

Product Highlights

Aluminum universal terminal with 3 conductors, 2 holes, and Al/Cu rating, designed for secure and reliable connections.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: K3A25U2
• Country of Origin: United States

Technical Specifications

• Conductor Size: 14-1/0 AWG (Str)
• Stud Size: 3/8"
• Stud Hole Spacing: 1"
• Number of Conductors: 3
• Number of Holes: 2
• Material: Aluminum
• Rating: Al/Cu Rated
• Plating: Tin Plated
• Application: For Aluminum and Copper Conductors
• Catalog Number: K3A25U2
• Connector Type: Parallel Set-Screw
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 50 LBS/in
• Material - Hardware: Aluminum
• Number Of Ports: 3
• Physical Attribute - Number of Screws: 3
• Physical Attribute - Screw Type: Slot
• Plated: Y
• Plating Type: Tin plated
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• UPC: 781810370537
• UPC 14 Digit GTIN: 00781810370537
• Dimension - Bolt Hole Size inch: 0.44 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 2.09 in
• Dimension - Height fraction: 7/8 in
• Dimension - Height inch: 0.88 in
• Dimension - Height mm: 22.4 mm
• Dimension - Hole Size fraction: 7/16
• Dimension - Hole Size inch: 0.45 in
• Dimension - Hole Size mm: 11 mm
• Dimension - L Length Overall mm: 56 mm
• Dimension - Length Overall inch: 2.19 in
• Dimension - N inch: 0.34 in
• Dimension - Pad Width inch: 2.02 in
• Dimension - Stud Size inch: 3/8 in
• Dimension - Width fraction: 1-47/50 in
• Dimension - Width inch: 1.64 in
• Dimension - Width mm: 49 mm
• Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
• Conductor - AL Str Size Range: 14 Str.-1/0 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
• Conductor - Copper Str Size Range: 14 Str.-1/0 AWG
• Certification - CSA Approved: Yes
• Certification - UL Listed Direct Burial: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• Brand: BURNDY
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
• Standard: UL 486A-486B
