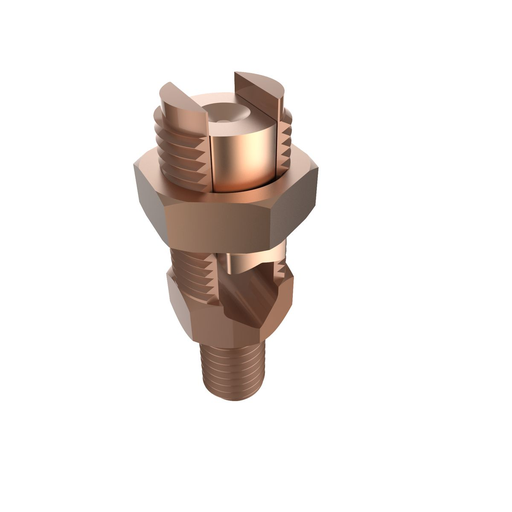

Hubbell K2C23B1 Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8 Stud

Product Description

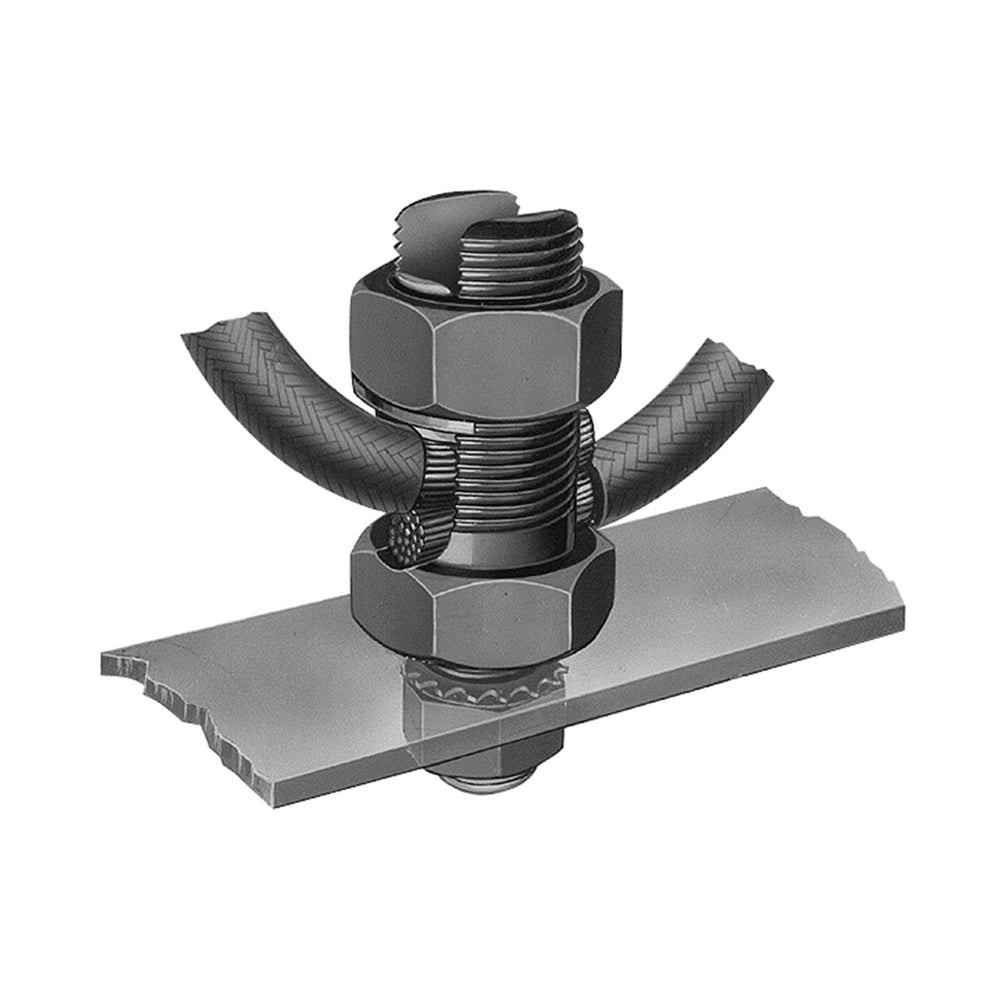

The Hubbell K2C23B1 is a mechanical grounding connector designed for cable to flat applications. It supports stranded copper wires from eight to two AWG and solid copper wires from ten to one AWG with a three-eighths inch stud. This connector is suitable for direct burial and is utilized for grounding one or two cables to various structures.

• Conductor sizes supported: 8-2 AWG (Stranded) and 10-1 AWG (Solid)
• Made from durable bronze material
• Direct burial capability for reliable grounding

Product Highlights

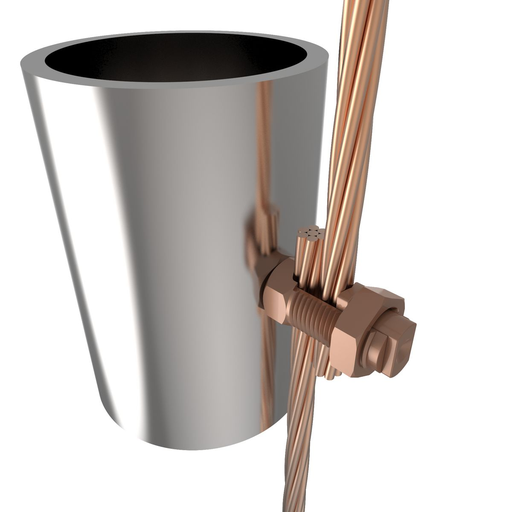

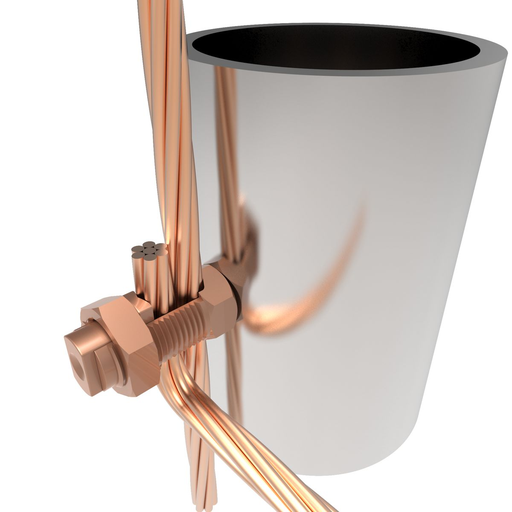

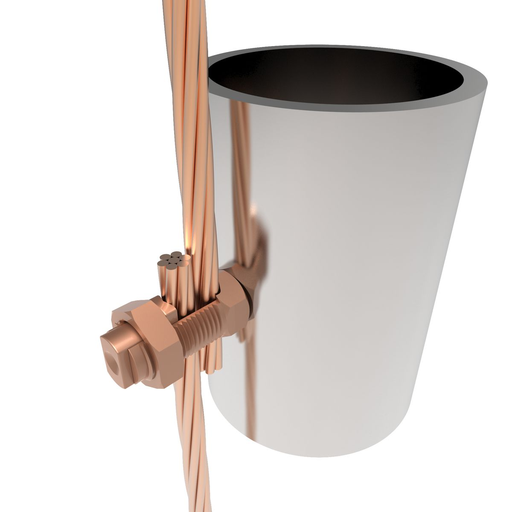

This connector is engineered for efficient grounding of cables, ensuring a solid connection to steel structures, fence posts, and transformers.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Body Width: 0.62 inches
• Overall Length: 2.47 inches
• Diameter: 1-1/8 inches
• Height: 1.05 inches
• Material: Bronze
• Conductor Size: 2 AWG
• Direct Burial: Yes
• Country of Origin: USA
