Product Description

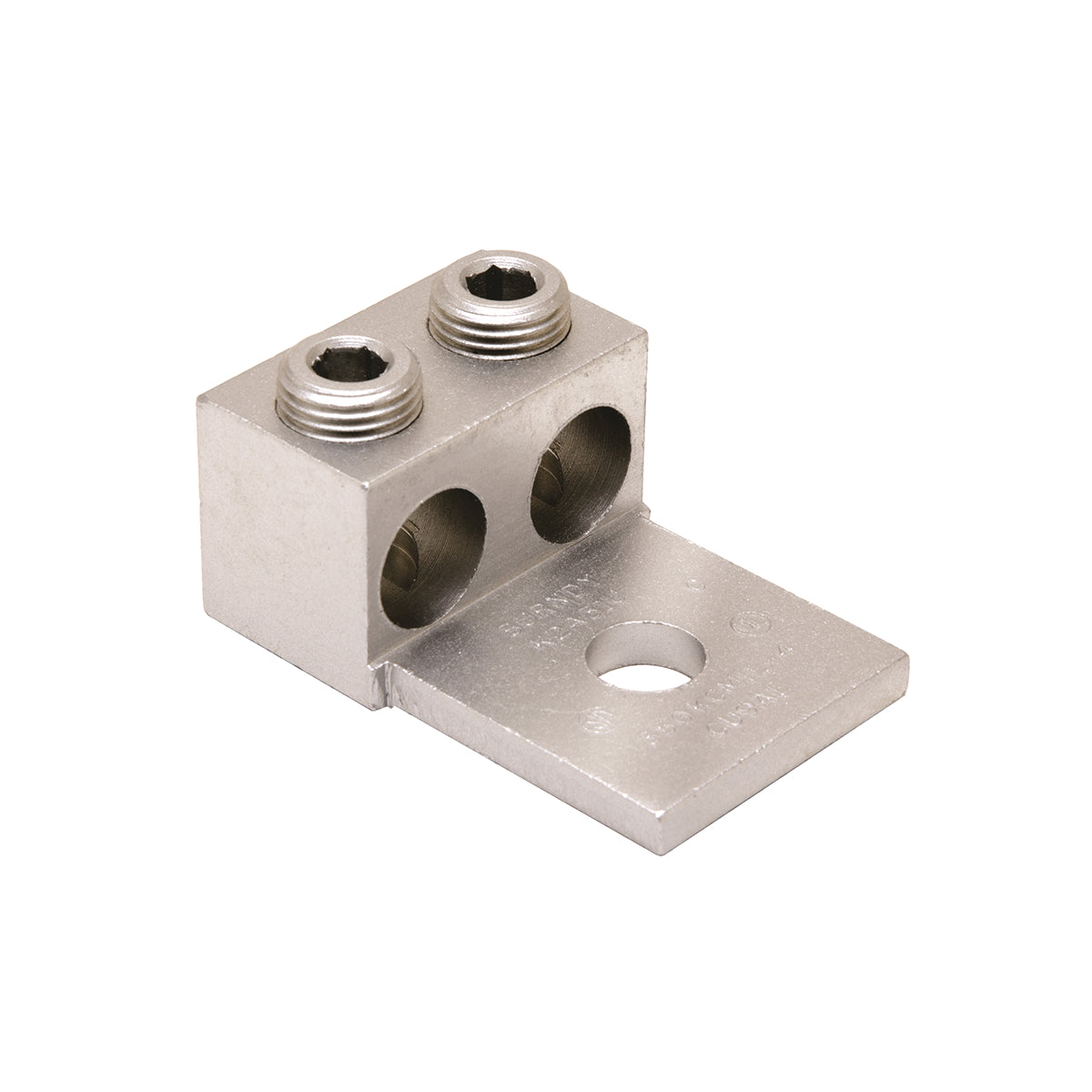

The Hubbell K2A31U is a dual rated universal mechanical bolted lug designed for aluminum and stranded copper conductors from six AWG to three hundred fifty kcmil. This product features one half inch stud and one bolt hole, ensuring reliable electrical connections. The tongue measures one point ninety-four inches wide by zero point twenty-five inches thick, optimized for easy installations and secure connections.
- Durable construction with electro-zinc plating
- Designed for aluminum and copper conductors
- Max installation torque of two hundred seventy-five inch-pounds
Product Highlights
The K2A31U is a reliable choice for professional electricians. Its robust design and dual rating make it suitable for various applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181060015
Technical Specifications
-
Application: For aluminum and copper conductors
-
Conductor Size: 6 AWG to 350 kcmil
-
Material: Aluminum
-
Stud Size: 1/2 in
-
Temperature Rating: 194 deg F
-
Dimensions: 2.88 in L x 1.25 in H
-
Tongue Size: 1.94 in W x 0.25 in THK
-
Tongue Type: Straight
-
Series: K2A-U
