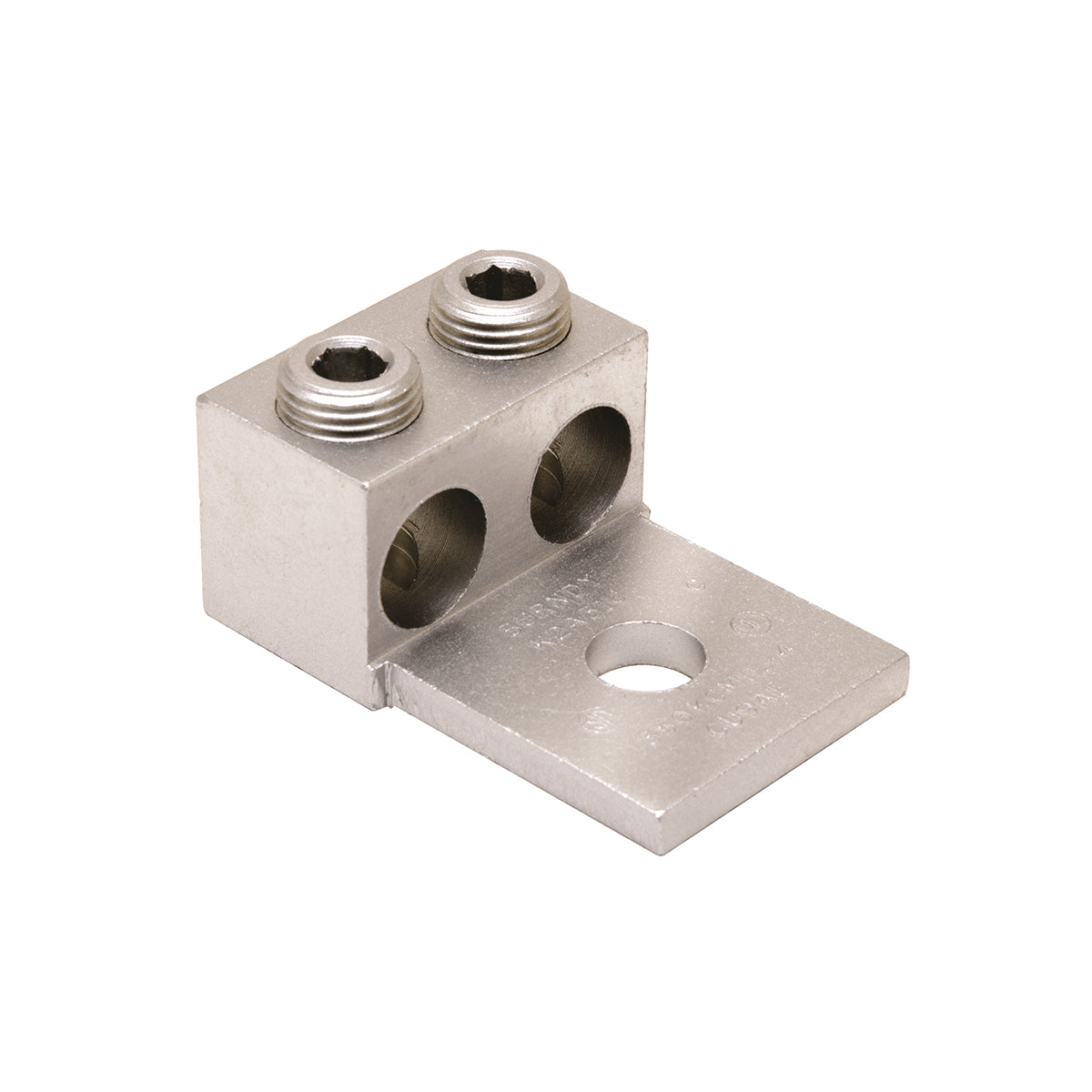

Hubbell K2A29U K2A-U Dual Rated Universal Mechanical Bolted Lug 6 AWG to 250 kcmil 3/8 in Stud

Product Description

The Hubbell K2A29U is a dual rated universal mechanical bolted lug and terminal. It is suitable for both aluminum and stranded copper conductors, accommodating sizes from six AWG to two hundred fifty kcmil. This product features a three-eighths inch stud and one bolt hole, providing reliable electrical connections.

• Mechanically bolted for strong electrical connections
• Compatible with aluminum and copper conductors
• Designed for easy installation with a single bolt hole

Product Highlights

The K2A29U is a robust and reliable choice for various electrical applications due to its durable construction and ease of use.

Product Information

Standard Information

• Brand: Hubbell
• MPN: K2A29U

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Dimensions: 2.56 in L x 1.12 in H
• Finish: Electro-Zinc Plated
• Material: Aluminum
• Number of Bolt Holes: 1
• Series: K2A-U
• Specifications: 1.2 in H x 1.66 in W Collar, (2) Allen Screw, 50 in-lb Installation Torque, 2-Conductor
• Standards/Approvals: ARRA Compliant, UL 486A/486B
• Stud Size: 3/8 in
• Temperature Rating: 194 deg F
• Tongue Size: 1.66 in W x 0.25 in THK
• Tongue Type: Straight
• Type: Dual Rated Universal
