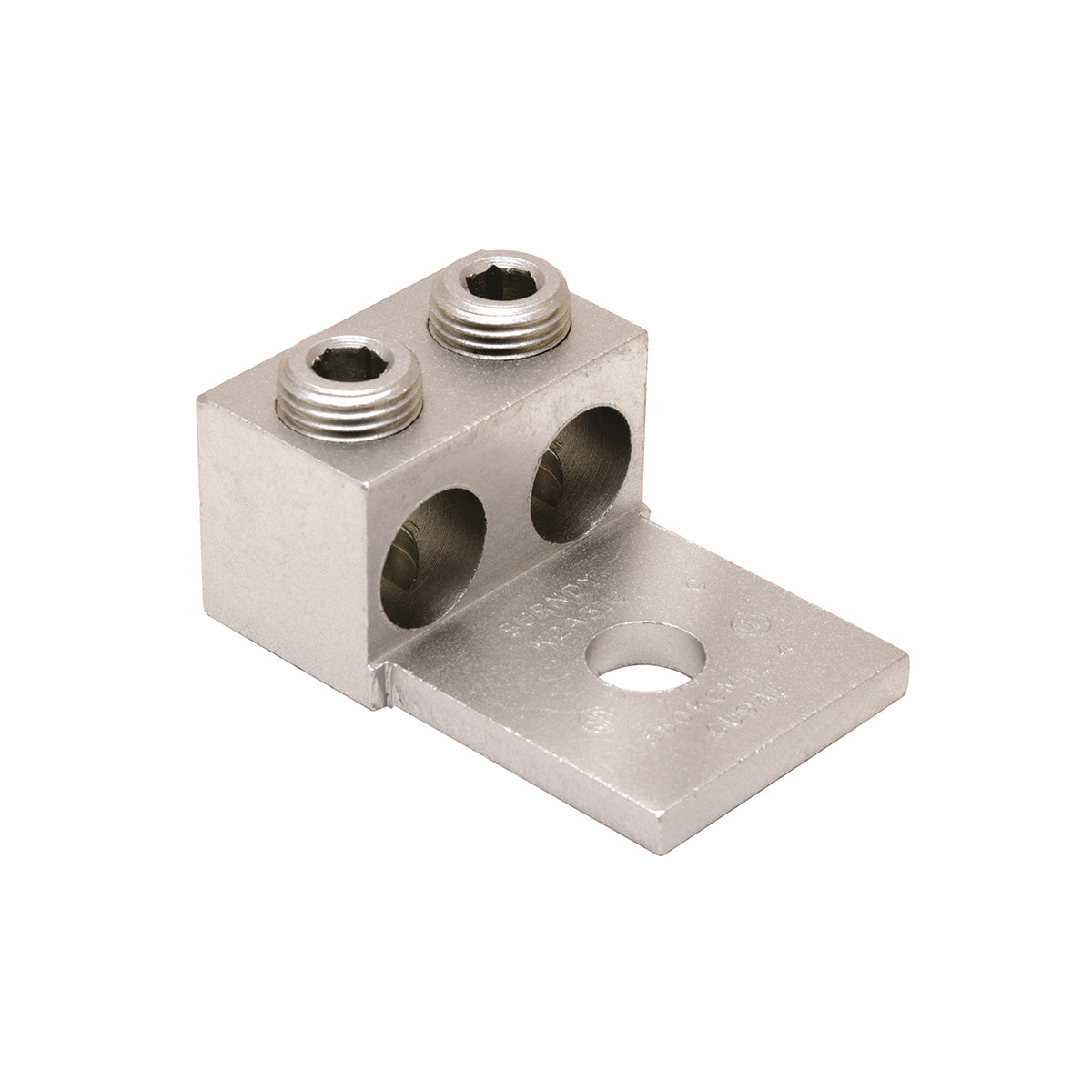

Hubbell K2A26U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal 14 to 2/0 AWG

Product Description

The Hubbell K2A26U is a dual rated universal mechanical bolted lug and terminal. It accommodates copper and stranded aluminum conductors ranging from fourteen to two aught AWG. This product includes a quarter-inch stud and one bolt hole, ensuring secure connections for various electrical applications.

• Constructed from high strength extruded aluminum alloy
• Electro-zinc plated for low contact resistance
• Temperature rating up to one hundred ninety-four degrees Fahrenheit

Product Highlights

The K2A26U is designed for reliable performance in electrical setups, ensuring compliance with industry standards.

Product Information

Standard Information

• Category: Electrical
• Type: Dual Rated Universal

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 14 to 2/0 AWG
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 1.47 inches L x 1.79 inches H
• Finish: Electro-Zinc Plated
• Manufacturer Part Number: K2A26U
• Material: Aluminum
• Number of Bolt Holes: 1
• Series: K2A-U
• Installation Torque: 50 in-lb
• Temperature Rating: 194 degrees Fahrenheit
• Tongue Size: 1.27 inches W x 0.19 inches THK
• Tongue Type: Straight
• Voltage Rating: 600 V
