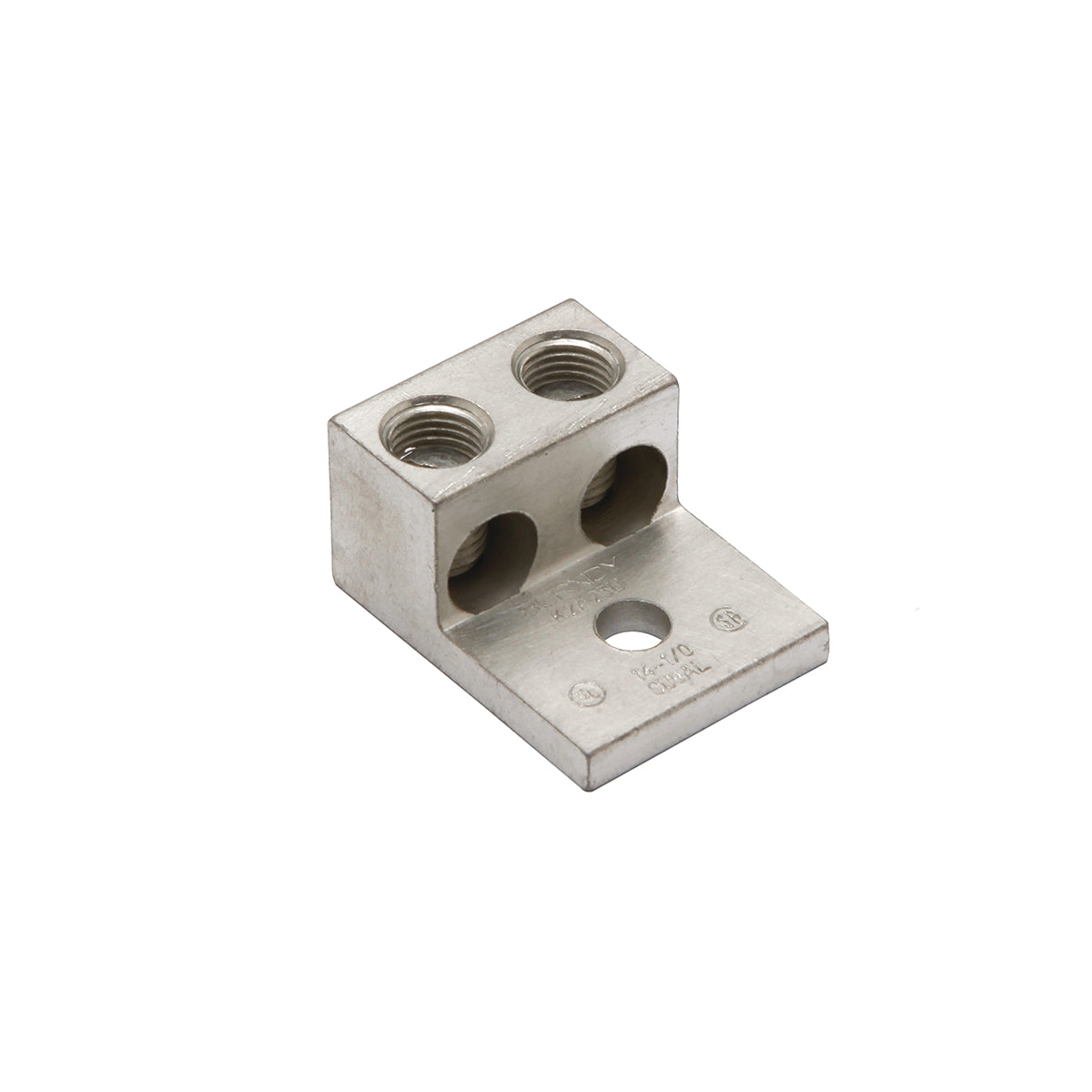

Hubbell K2A25U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 14 to 1/0 AWG Copper/Stranded Aluminum Conductor

Product Description

The Hubbell K2A25U is a dual rated universal mechanical bolted lug and terminal designed for copper and stranded aluminum conductors ranging from fourteen to one-aught American Wire Gauge (AWG). It features a quarter inch stud and one bolt hole. This product is built to ensure reliable electrical connections in various applications.

• Suitable for both copper and aluminum conductors
• Electro-zinc plated for low contact resistance
• Maximum temperature rating of one hundred ninety-four degrees Fahrenheit

Product Highlights

This lug and terminal supports efficient connections and installation in electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: K2A25U

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Copper/Stranded Aluminum
• Stud Size: 1/4 in
• Dimensions: 1.47 in L x 0.79 in H
• Temperature Rating: 194 deg F
• Tongue Size: 1.15 in W x 0.19 in THK
• Finish: Electro-Zinc Plated
