Product Description

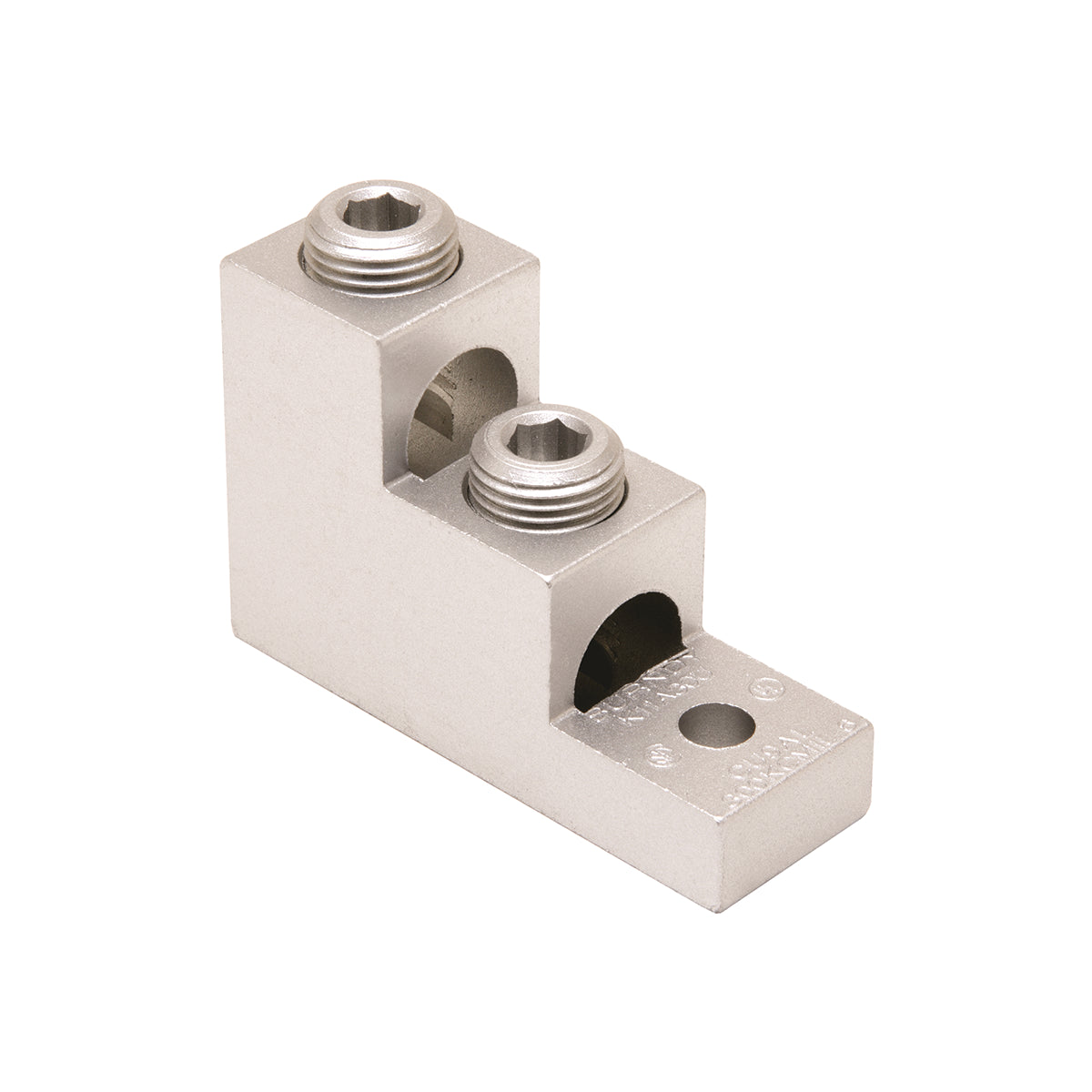

The Hubbell K11A30U is a mechanical bolted lug designed for dual rated use. This product accommodates aluminum and stranded copper conductors ranging from six AWG to three hundred kcmil sizes. It features a five-sixteenth inch stud and two bolt holes, making it easy to install in various applications.
- Durable aluminum construction
- Designed for aluminum and copper conductors
- Suitable for high torque installation
Product Highlights
The K11A30U offers flexibility for various wiring projects, allowing reliable connections for both aluminum and copper conductors, ensuring safety and effectiveness in electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: K11A30U
Technical Specifications
-
Application: For aluminum and copper conductors
-
Conductor Size: 6 AWG to 300 kcmil
-
Material: Aluminum
-
Finish: Electro-Zinc Plated
-
Stud Size: 5/16 in
-
Number of Bolt Holes: 2
-
Dimensions: 3 in L x 2.03 in H
-
Temperature Rating: 194 deg F
-
Specifications: (2) Hex Screw, 275 in-lb Installation Torque
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 468A/468B, Buy American Act Compliant
