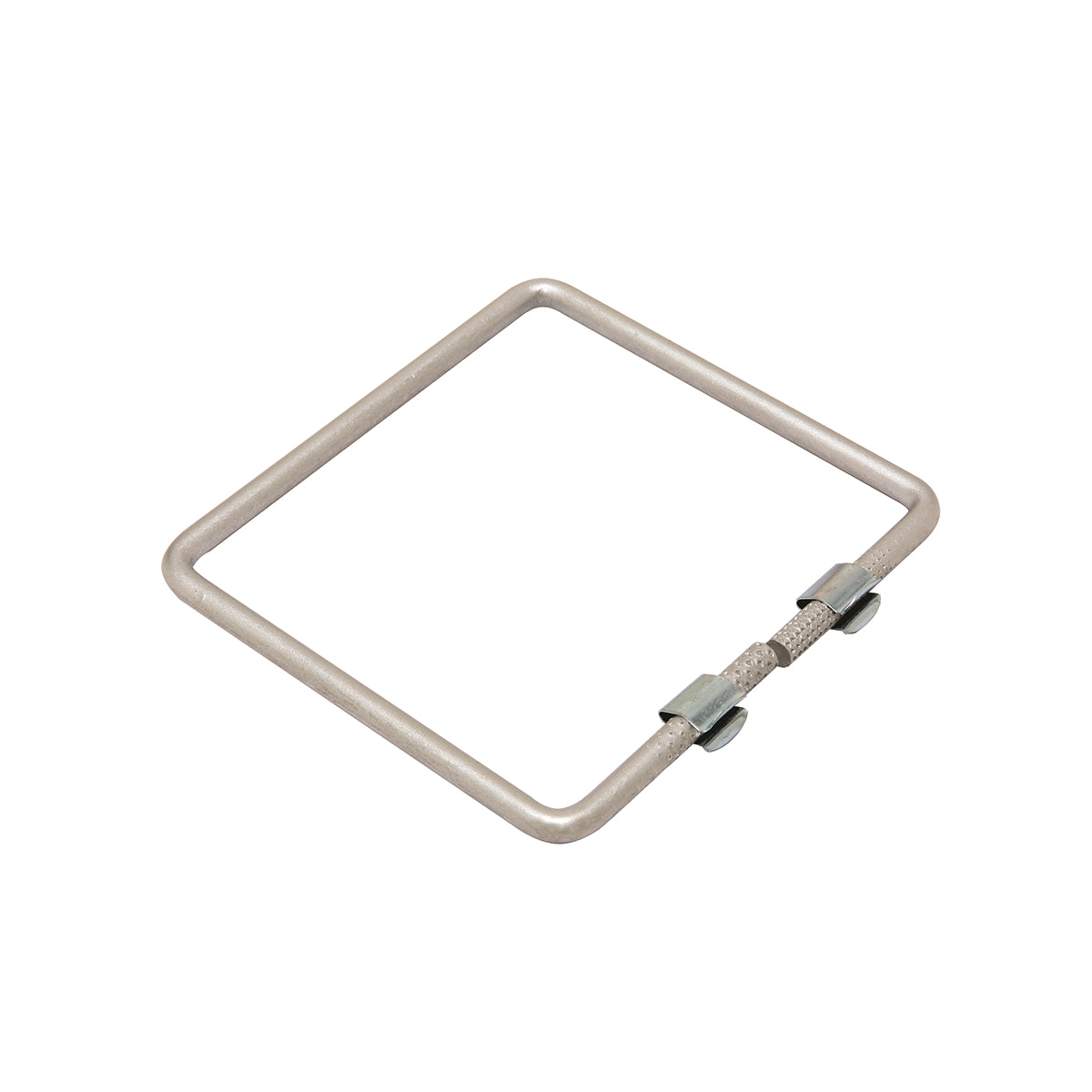

Hubbell J990 Burndy 2 Cu Bail (Only) TN

Product Description

The Hubbell J990 is a Burndy Hot-Line Clamp Bail designed for a specific range of applications in electrical work. This clamp bail accommodates 2 AWG bail and is capable of handling conductors from 6 AWG to 266.8 kcmil. Made from hard drawn copper and coated with TiN for durability, this product is suited for use with various connectors.

• Designed for hot-line applications
• Accommodates conductor sizes from 6 AWG to 266.8 kcmil
• Made from hard drawn copper with a TiN coating

Product Highlights

This clamp bail is essential for connecting overhead conductors and is designed for use with compression connectors like HYCRIMP and CABELOK.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181001408

Technical Specifications

• Application: For compression 'C' connector
• Bail Size: 2 AWG
• Conductor Size: 6 AWG to 266.8 kcmil
• Conductor Type: ACSR/Stranded/Solid Aluminum
• Dimensions: 4-1/4 in L x 4 in H
• Finish: TiN Coated
• Material: Hard Drawn Copper
• Standards/Approvals: ARRA Compliant, RoHS Compliant, Buy American Act Compliant
• Type: Hot-Line
