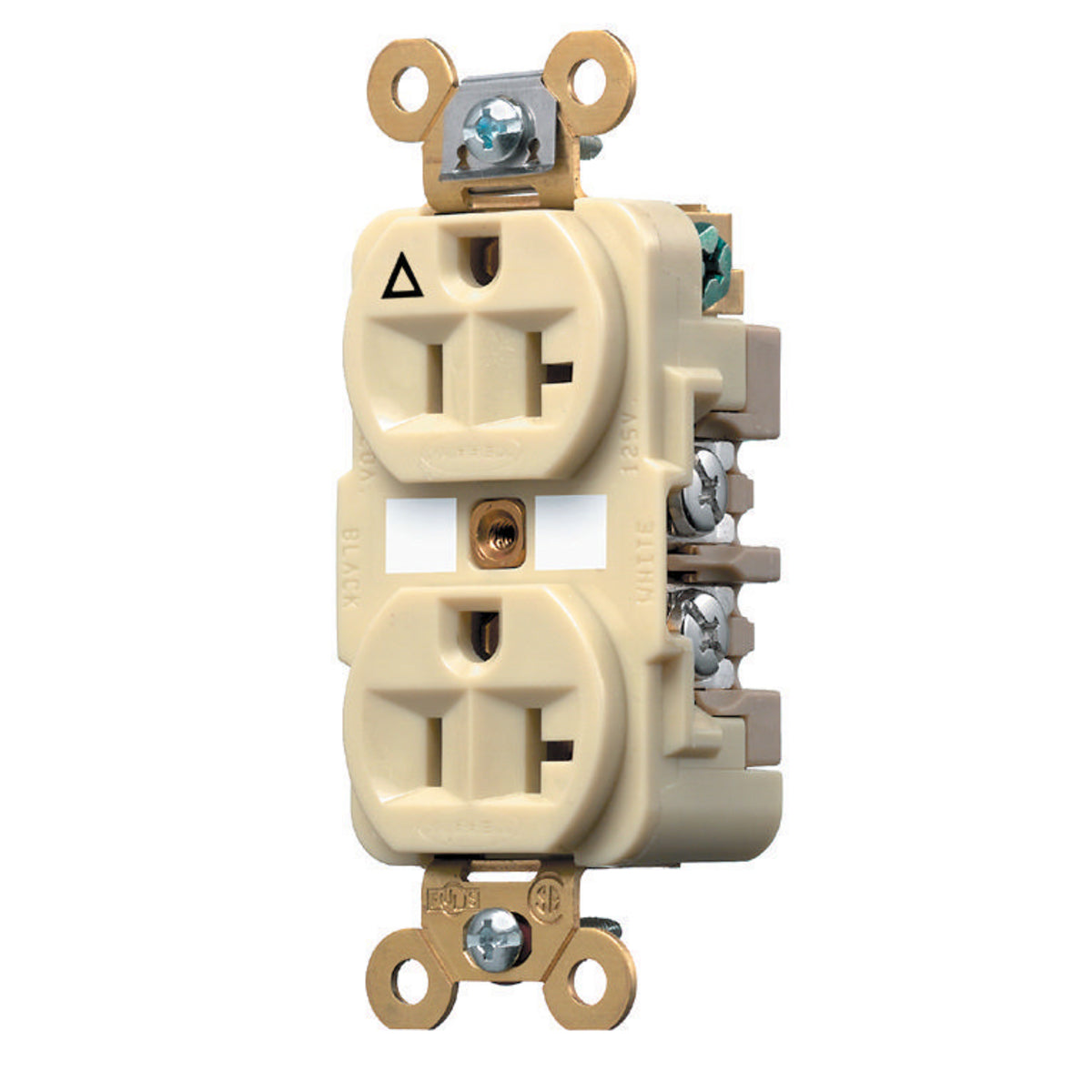

Hubbell IG5362I 20A 125V Ivory IG DPLX RCPT NEMA 5-20R

Product Description

The Hubbell IG5362I is a straight blade receptacle designed for heavy-duty applications. This receptacle operates at 125 volts and is rated for 20 amperes. It features a NEMA 5-20R rating, which makes it suitable for a variety of electrical needs. The product includes a duplex isolated ground and is designed for traditional screw mounting.

• Constructed with a 1-piece brass ground strap.
• Features a bypass contact design to minimize heat buildup.
• Durable nylon housing to withstand tough conditions.

Product Highlights

This receptacle is ideal for commercial and industrial applications where reliable and safe electrical connections are necessary.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358587688

Technical Specifications

• Amperage Rating: 20 A
• Color: Ivory
• Dimensions: 3.28 x 1.33 x 1.05 inches
• Grade: Industrial
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Voltage Rating: 125 VAC
• Temperature Rating: -40 to 75 degrees C
• Standards/Approvals: UL 498, CSA C22.2, RoHS Compliant
• Material: Nylon
• Terminal Type: Back and Side Wire/Screw
