Product Description

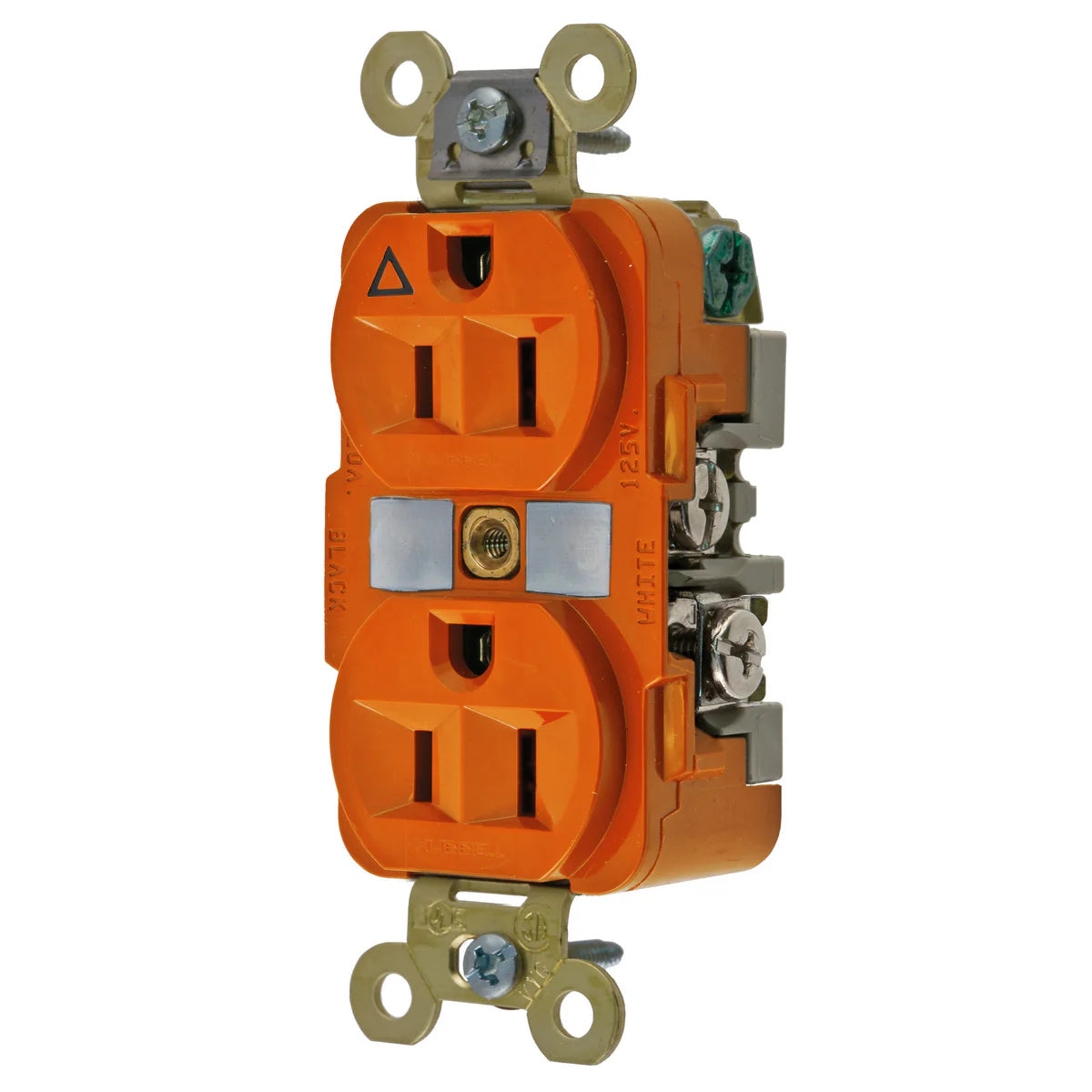

The Hubbell IG5262 is a wiring device designed for high-performance applications. This heavy-duty isolated ground receptacle features a traditional screw mount. It operates at one hundred twenty-five volts and fifteen amps with a two-pole and three-wire configuration. The receptacle is ideal for commercial, industrial, and specification-grade uses. Its robust construction ensures reliability in a variety of environments.
- Power Rating: 125 VAC
- Amperage Rating: 15 A
- NEMA Rating: 5-15R
Product Highlights
This isolated ground receptacle meets the needs of various electrical installations. It includes features like back and side wiring capability, ensuring easy installation with either stranded or solid wire. This product's design adheres to industry standards for safety and performance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358575653
Technical Specifications
-
Type: 1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional Screw Mount
-
Color: Orange
-
Application: Indoor Dry Environment
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Horsepower: 1/2 hp
-
Dimensions: 3.28 x 1.33 x 1.05 inches
-
Temperature Rating: -40 to 75 deg C
-
Material: Nylon
-
NEMA Rating: 5-15R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: RoHS Compliant, C22.2 No. 42, Federal Specification W-C-596, NEMA WD1/WD5, UL 498 File No. E2186
