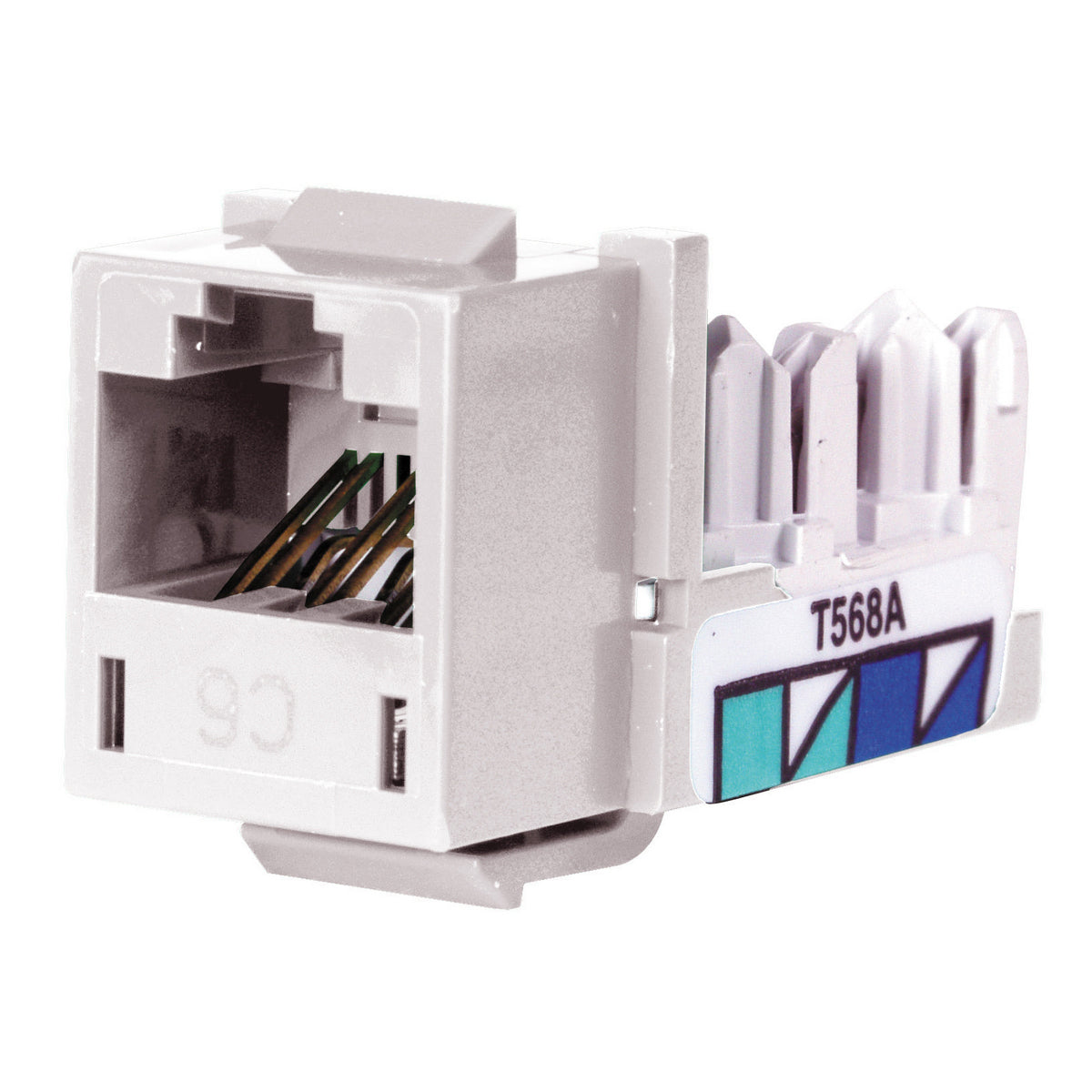

Hubbell HXJ6W24 HUBBELL 8-Position Standard Universal Xcelerator A/B Modular Jack Cat 6 Module

Product Description

The Hubbell HXJ6W24 is an eight-position standard universal Xcelerator A/B modular jack designed for data communication. This Cat 6 module is made from thermoplastic and is white in color. Each jack measures approximately zero point six seventy-nine inches in width, zero point nine eighty-two inches in depth, and zero point eight oh seven inches in height. The modular jack is suitable for telephone and data distribution, adhering to IEEE standards.

• Third-party verified category 6 component compliant
• Exclusive one-punch termination reduces termination time by seventy-five percent
• Mating cycles exceed industry standard by four times

Product Highlights

The HXJ6W24 modular jack enhances efficiency in network installations and supports high-speed data transmission.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 66262066390

Technical Specifications

• Application: For telephone and data distribution jack, IEEE 802.3ab 1000GBASE-T, IEEE 802.3bt 4PPoE, TIA TSB-155 10GbE over fifty-five meters
• Color: White
• Dimensions: zero point six seventy-nine inches width, zero point nine eighty-two inches depth, zero point eight oh seven inches height
• Material: Thermoplastic
• Module Type: Cat 6
• Series: HXJ
• Standards/Approvals: ANSI/TIA/EIA 568-C.2, CSA Certified, ISO 11801/60603-7-41, TIA-568-C.2, UL 1863
• Type: Eight-Position Standard Universal Xcelerator A/B
