Hubbell HXJ6BK HUB JACK, HXJ, CAT6, 8POS, UNI A/B, BK

Product Description

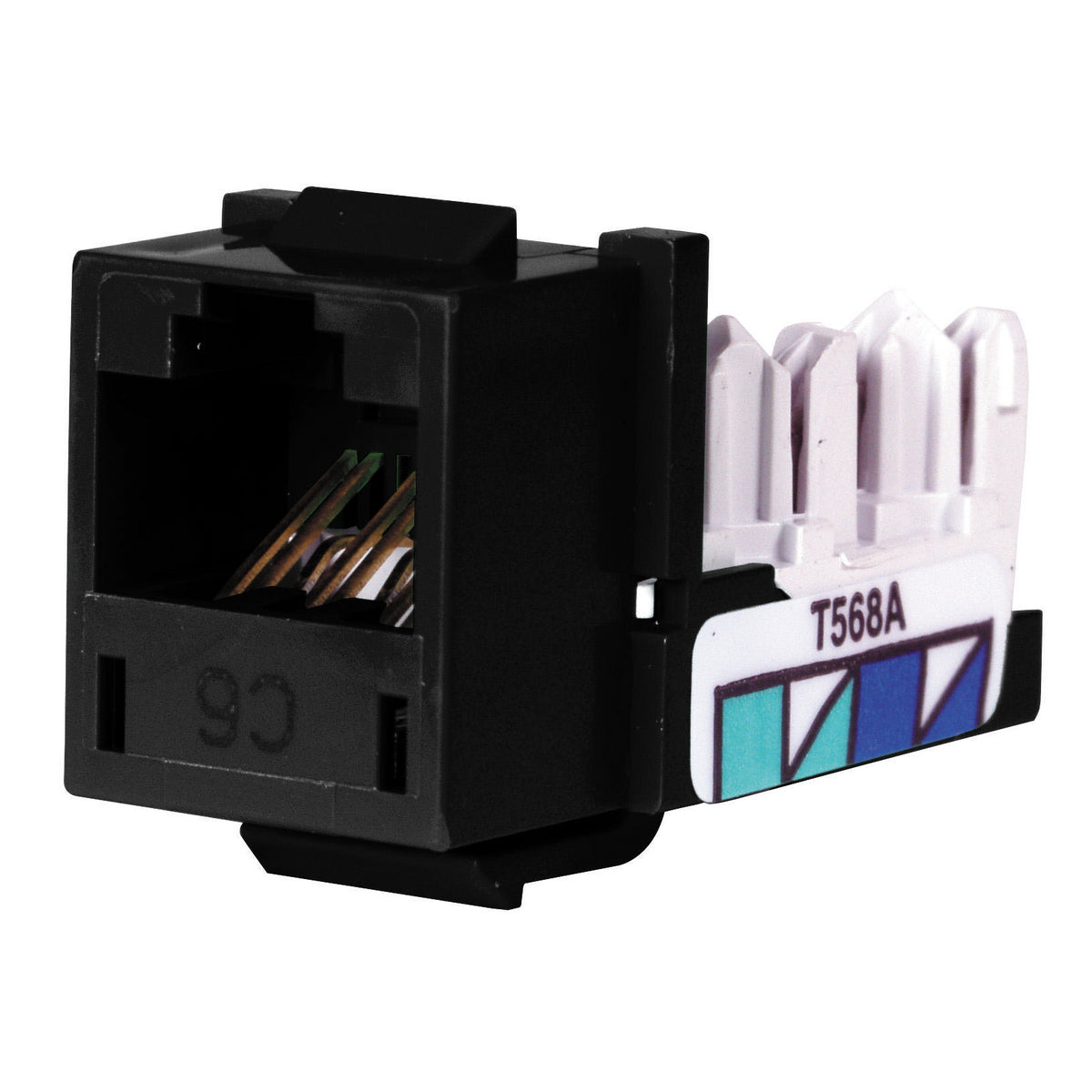

The Hubbell HXJ6BK is a standard universal modular jack designed for Cat 6 applications. This jack features keystone mounting and can accommodate one port. It is constructed from thermoplastic material and comes in black color, with dimensions of one point two nine three inches in height, zero point six seven nine inches in width, and zero point nine eight two inches in depth.

• First tested CAT 6 component compliant jack
• Supports up to four times the DTE power standard
• Fast termination process reduces labor time

Product Highlights

This modular jack is ideal for various networking applications including LAN, multimedia setups, and IP-Video. The QuickLace termination process, alongside the exclusive 1-Punch tool, allows for efficient installation into Hubbell iSTATION products.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Thermoplastic

Technical Specifications

• Module Type: Cat 6
• Mounting Type: Keystone
• Color: Black
• Dimensions: 1.293 inches H x 0.679 inches W x 0.982 inches D
• Application: Industrial, Computers and Networking
• Standards/Approvals: ANSI/TIA/EIA-568-B.2, UL 1863, CSA Certified, ETL Listed
• Type: 8-Position Standard Universal A/B
