Product Description

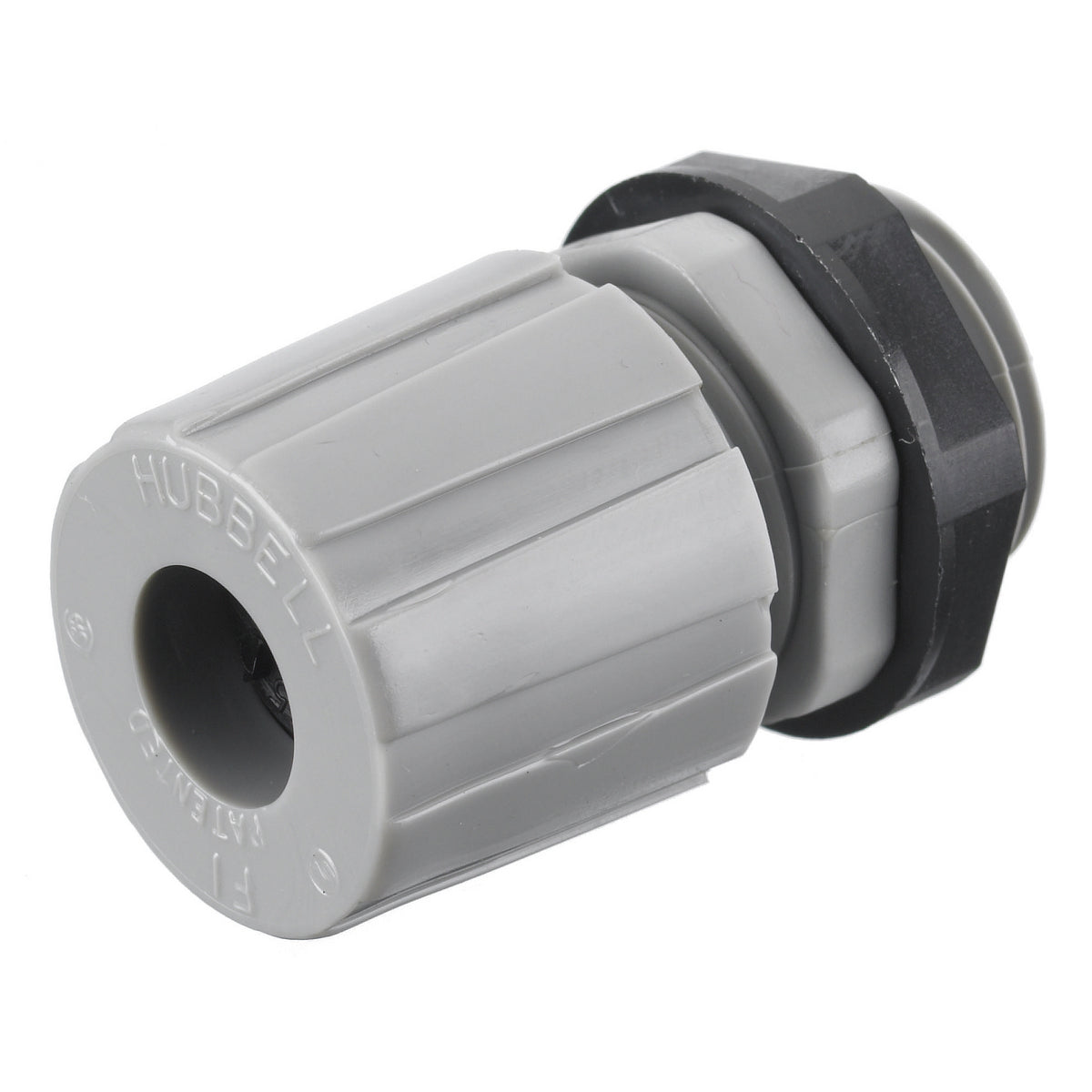

The Hubbell HJ1003GPK25 is a miniature flexible cord connector designed for reliable electrical connections. It accommodates cable openings from zero point two zero to zero point two seven inches. This connector is ideal for applications that involve jacketed cables where a robust and weather-resistant connection is necessary. It is suitable for use in wet locations when paired with a nylon washer.
- Offers a knockout hole size ranging from zero point five three to zero point five four inches.
- Works with jacketed cable types.
- Temperature rated for usage between negative thirty to two hundred twenty-five degrees Fahrenheit.
Product Highlights
The HJ1003GPK25 features a Miniature Standard Straight design and is constructed from durable nylon material.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358502292
Technical Specifications
-
Application: For wet location when used with a listed nylon washer between box and fitting
-
Cable Openings: 0.20 to 0.27 in
-
Cable Type: Jacketed
-
Color: Gray
-
Connection Type: MNPT
-
Dimensions: 0.65 in Dia x 1.3 in L
-
Manufacturer Part Number: HJ1003GPK25
-
Material: Nylon
-
Number of Conductors: 1
-
Standards/Approvals: CSA Certified, RoHS Compliant, UL 514B, UL 94 V-2 Flammability Rating
-
Temperature Rating: -30 to 225 deg F
-
Trade Size: 1/4 in
-
Type: Miniature Standard Straight
