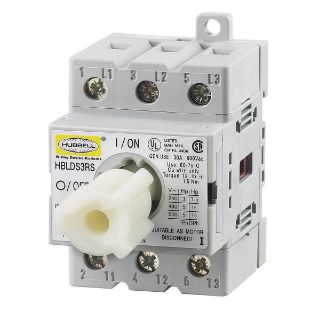

Hubbell HBLDS3RS HWD Standard Rotary Disconnect Switch 30 A Connectors

Product Description

The Hubbell Wiring Device-Kellems HBLDS3RS is a two-position rotary disconnect switch designed for 30 A connectors. It is suitable for both indoor and dry location applications. This switch operates at 60 Hz and is crafted to withstand temperatures from minus forty to seventy-five degrees Celsius without damage. The composite housing offers durability and protection against environmental factors.

• 3-pole design, ideal for various industrial applications
• Mechanical operation certified for 10,000 cycles
• Meets UL and CSA standards for safety and quality

Product Highlights

This product is built for reliability in motor control and load protection settings. The switch's robust construction makes it a reliable choice for HVAC applications and other electrical projects.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBLDS3RS

Technical Specifications

• Voltage Rating: 600V RMS
• Current Rating: 30 A
• Number of Poles: 3
• Dimensions: 2.6 inches x 2.4 inches x 4 inches
• Material: Composite
• Operating Temperature Range: -40 to 75 degrees Celsius
• Dielectric Voltage: Withstands 3000 VAC minimum
• Environmental Ratings: IP66 and UV stabilized
