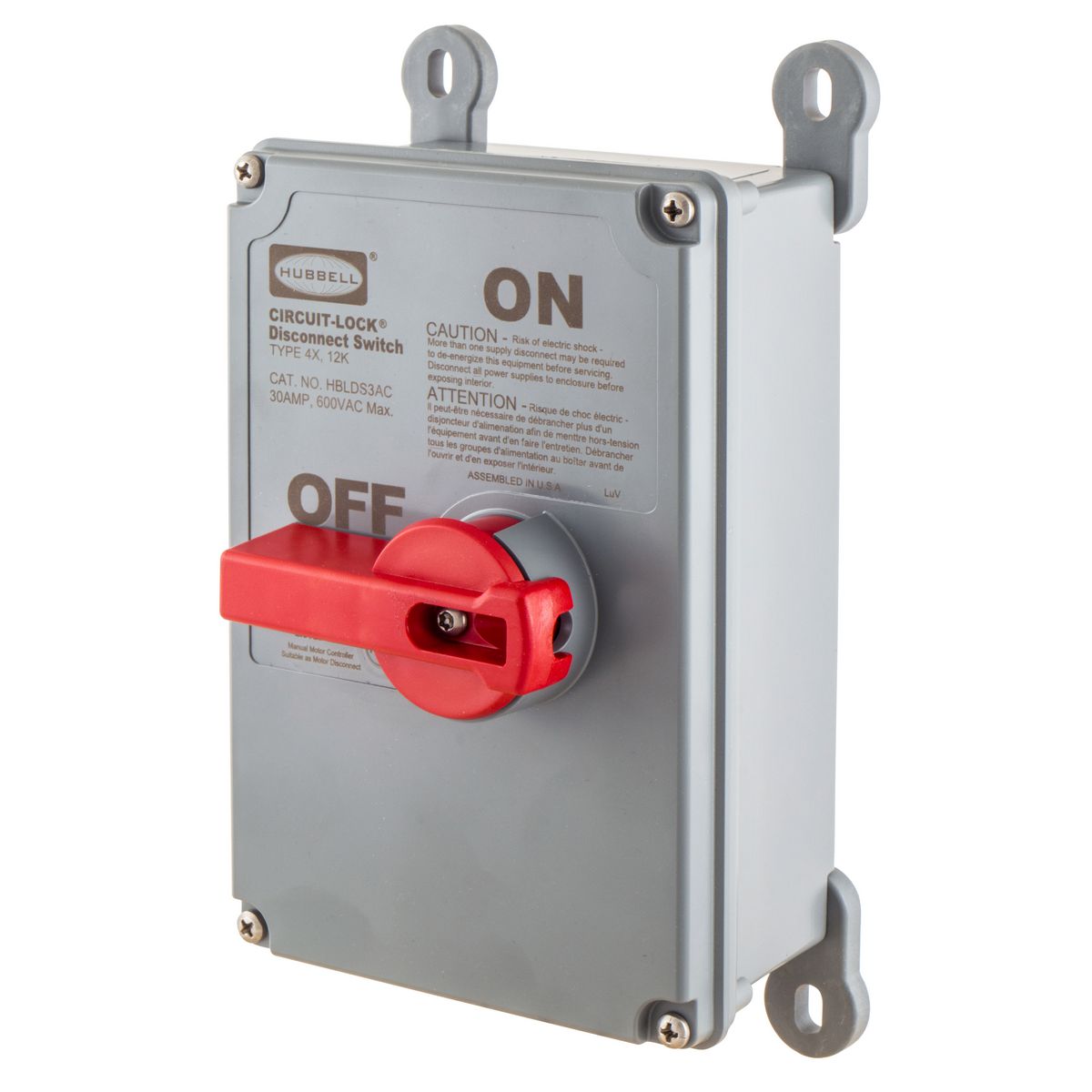

Hubbell HBLDS3AC HUB 30A NON-FUSED DISCONNECT W/AUX CONTACT

Product Description

The Hubbell HBLDS3AC is a 30 amp non-fused disconnect switch designed for safe operation in various industrial settings. This switch features a two-position contact and is rated for up to six hundred volts. It can handle fifteen horsepower and is suitable for three-phase applications. Constructed with a NEMA 4X enclosure, this model is durable and resistant to corrosion.

• Safety switch suitable for up to 30 amps
• NEMA 4X enclosure for protection against dust and water
• Lever actuator for easy operation

Product Highlights

This disconnect switch is ideal for extra heavy-duty industrial applications, ensuring a secure and reliable electrical disconnection.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358543060

Technical Specifications

• Actuator Type: Lever
• Amperage Rating: 30 A
• Application: Extra Heavy Duty Industrial Applications
• Enclosure: NEMA 4X
• Dimensions: 8.5 inches x 6 inches x 4.12 inches
• Frequency Rating: 60 Hz
• Horsepower: 15 hp
• Voltage Rating: 600 V
• Temperature Rating: -40 to 75 deg C
• Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
