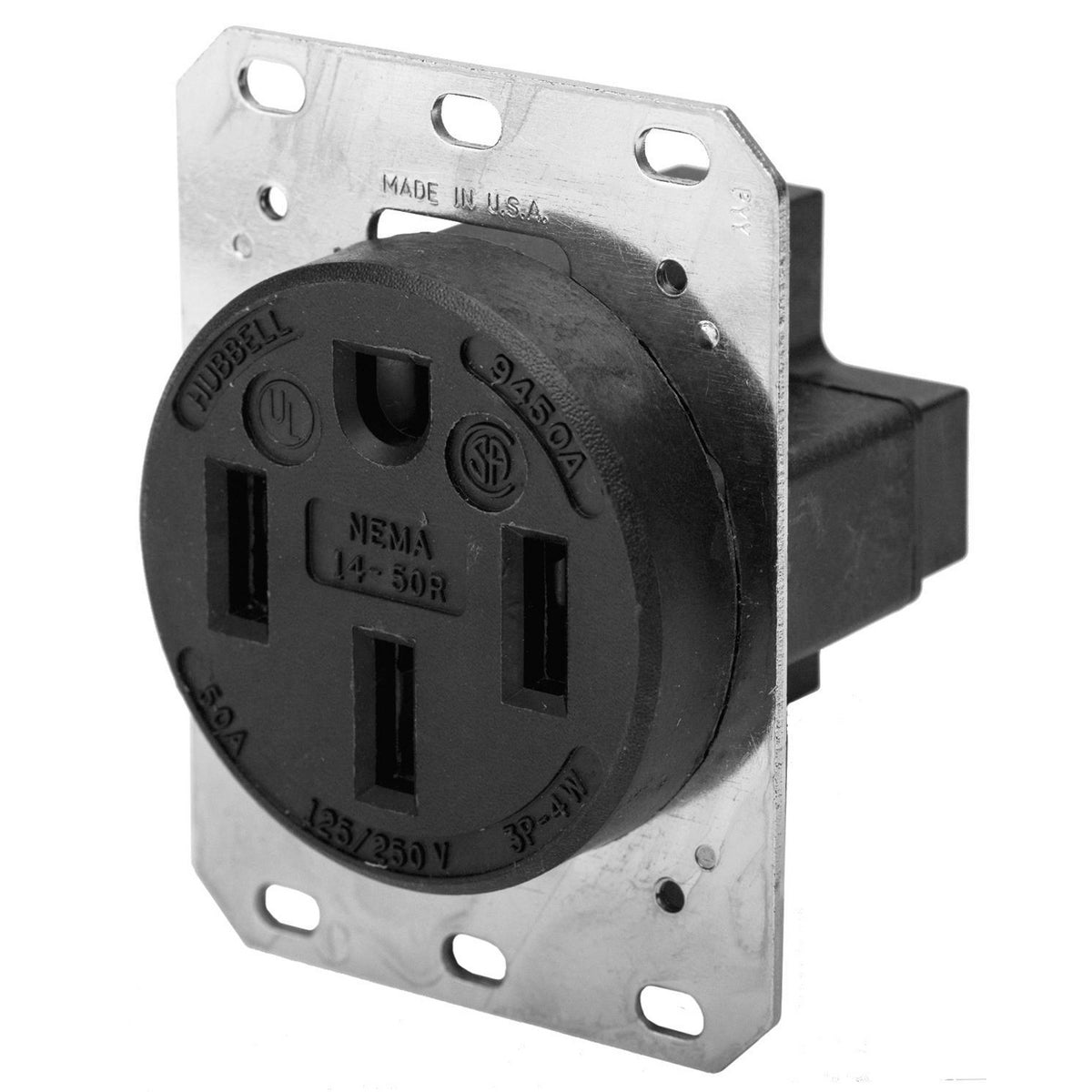

Hubbell HBL9450A HUB 3P-4W-50A 125/250V RCPT BLK

Product Description

The Hubbell HBL9450A is a straight blade receptacle designed for heavy-duty use in both indoor and dry locations. This receptacle operates at a voltage of one hundred twenty-five to two hundred fifty volts, with a current rating of fifty amps. The device features a three-pole and four-wire configuration, making it suitable for use in a variety of applications.

• Heavy-duty construction for reliability
• Designed for installation in industrial environments
• NEMA rating of 14-50R

Product Highlights

The HBL9450A receptacle offers a durable design with a glass-reinforced PET top and a stainless steel mounting strap. It ensures safety and functionality in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL9450A

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• Grade: Industrial
• NEMA Rating: 14-50R
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 degrees C
• Material: Thermoplastic/Composite
• Enclosure: IP20
• Dimensions: 3.28 x 2.75 x 2.44 inches
• Standards/Approvals: UL 498 Listed, CSA Certified, RoHS Compliant
