Product Description

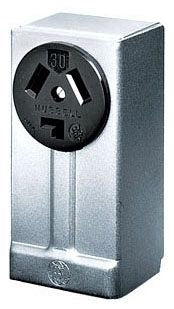

The Hubbell HBL9395 is a heavy-duty straight blade receptacle designed for industrial applications. This 1-phase, non-grounding model operates at 125/250 VAC and supports up to 30 amperes. It features a robust thermoplastic construction and an IP20 enclosure, making it suitable for dry locations.
- 30 A amperage rating
- 10-30R NEMA rating
- Back and side wire/screw terminal setup
Product Highlights
The HBL9395 receptacle is designed for easy installation and reliability in various industrial settings.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501555
Technical Specifications
-
Type: 1-Phase Heavy Duty Non-Grounding Standard Screw Mount
-
Amperage Rating: 30 A
-
Voltage Rating: 125/250 VAC
-
Number of Poles: 3
-
Number of Wires: 3
-
NEMA Rating: 10-30R
-
Temperature Rating: -40 to 75 deg C
-
Dimensions: 5.06 x 2.5 x 2.06 inches
-
Material: Thermoplastic/Composite
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 2 hp
-
Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1/WD5, UL 498 File No. E2186
