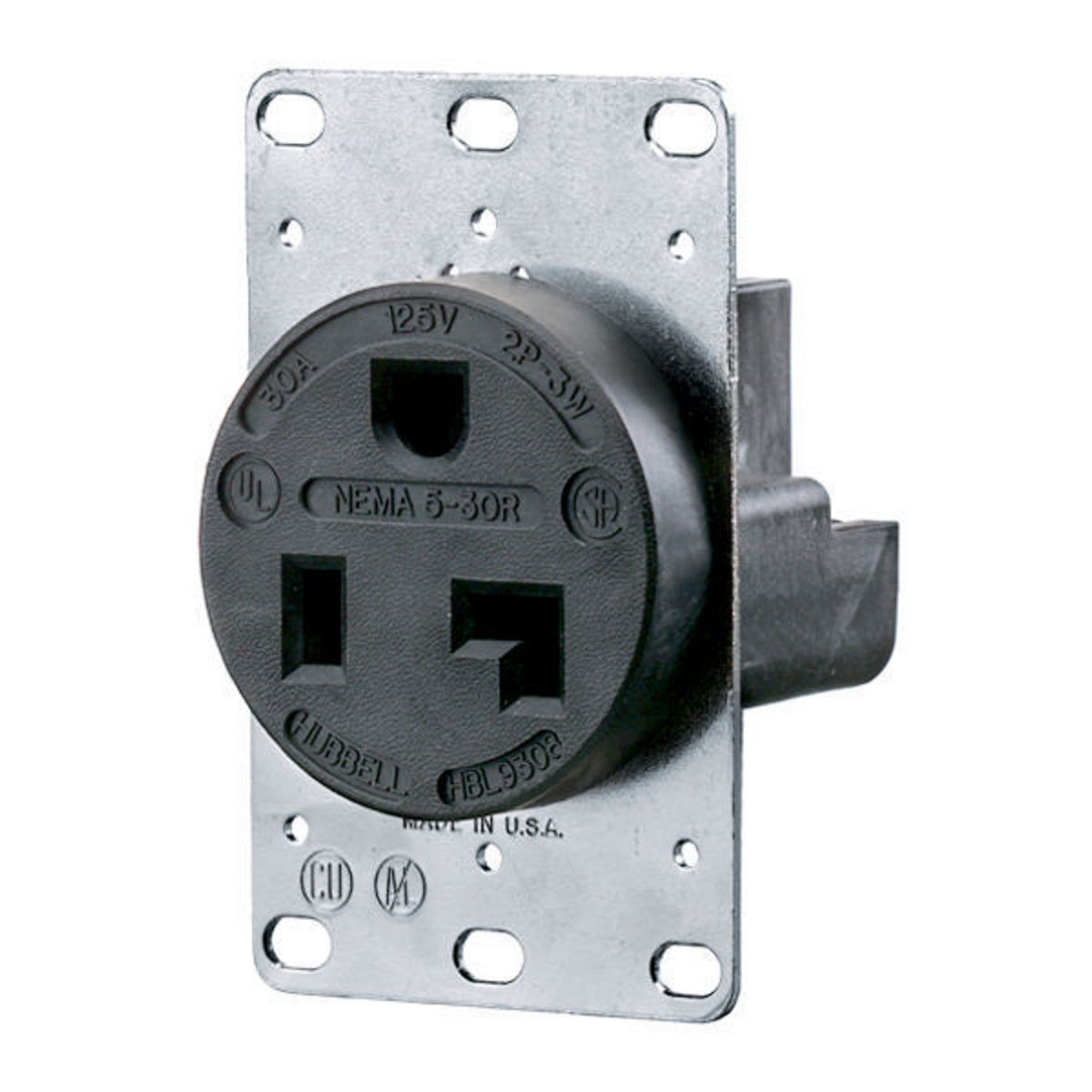

Hubbell HBL9308 HUB 2P-3W-30A-125V BLK RCPT

Product Description

The Hubbell HBL9308 is a straight blade receptacle that operates at one-phase. It features a heavy-duty, single self-grounding design and is a standard screw mount. The receptacle is rated for a voltage of one hundred twenty-five VAC and a current of thirty A. It is designed for use in two-pole and three-wire configurations, suited for environments that require robustness and reliability.

• Compatible with 10 to 4 AWG solid or stranded copper wire
• Meets the 5-30R NEMA rating
• Suitable for dry location and indoor applications

Product Highlights

This receptacle is suitable for heavy-duty applications. It is crafted for industrial use, with a temperature rating from negative forty to seventy-five degrees Celsius. Its thermoplastic and composite housing ensure durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: HBL9308

Technical Specifications

• Amperage Rating: 30 A
• Application: Dry Location and Indoor Applications
• Color: Black
• Dimensions: 2.25 in W x 2.23 in D x 3.28 in H
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 5-30R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: UL 498 File No. E2186 Listed, UL 94 V-0 Flammability Rating, CSA Certified, NEMA WD1/WD5/WD6, RoHS Compliant
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Back and Side Wire/Screw
• Type: 1-Phase Heavy Duty Single Self-Grounding Standard Screw Mount
• Voltage Rating: 125 VAC
