Product Description

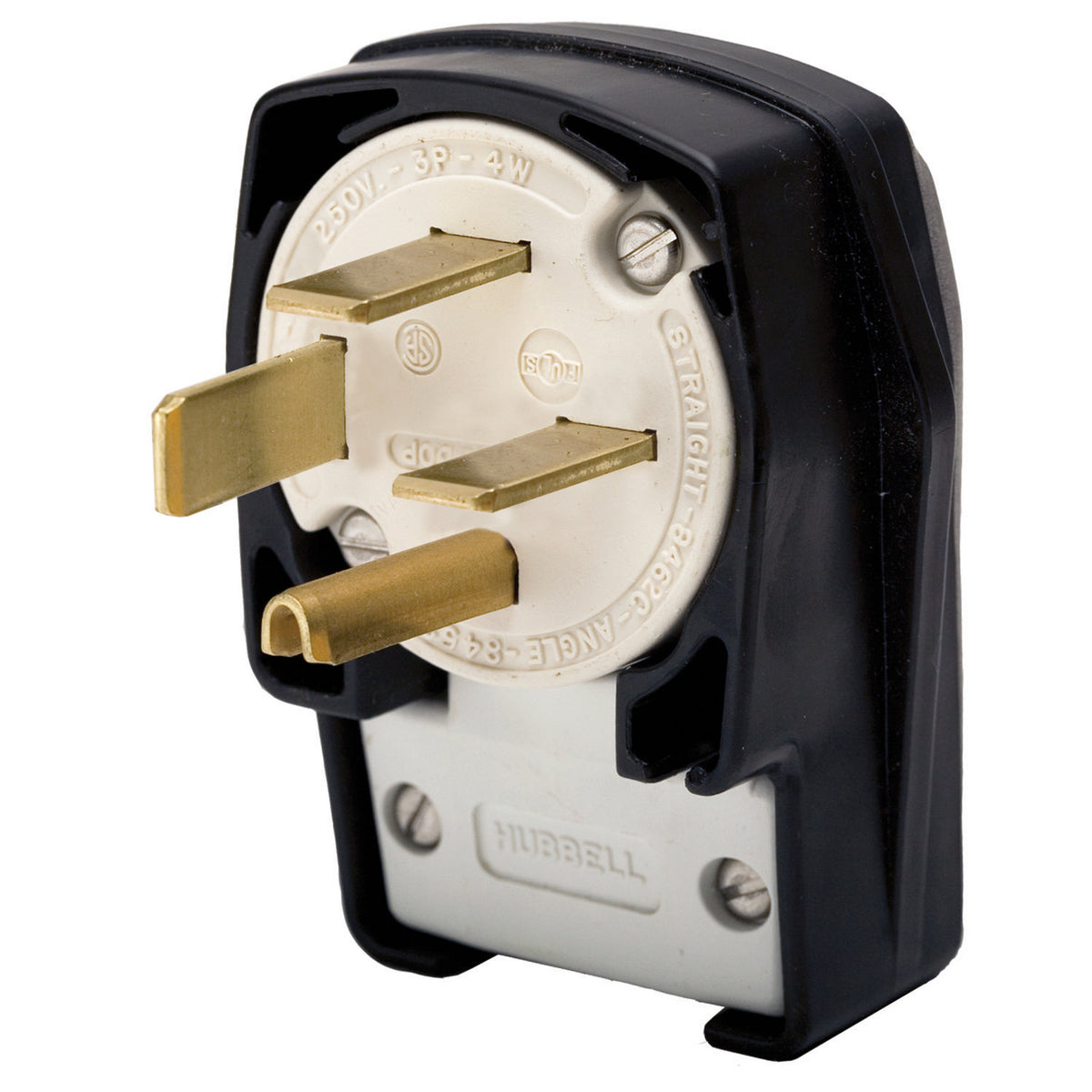

The Hubbell HBL8462C is a standard cord mount plug designed for heavy-duty use. This three-phase, four-position male plug operates at two hundred fifty Volts and a maximum of sixty Amperes, making it suitable for various commercial and industrial applications. It supports wire sizes from twelve to four AWG copper stranded or solid wire.
- Rated for indoor dry environments
- Constructed with durable nylon material
- Temperature range of -40 to 75 degrees Celsius
Product Highlights
This plug is ideal for reliable connections in demanding settings. It has a NEMA rating of fifteen to sixty P and an IP20 enclosure, ensuring protection against objects larger than twelve millimeters but not against water.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: HBL8462C
Technical Specifications
-
Amperage Rating: 60 A
-
Voltage Rating: 250 VAC
-
Horsepower: 10 hp
-
Enclosure: IP20
-
Color: Black
-
Material: Nylon
-
Dimensions: 4.5 x 2.72 x 2.38 in
-
NEMA Rating: 15-60P
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 75 deg C
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42, NEMA WD1/WD5
