Product Description

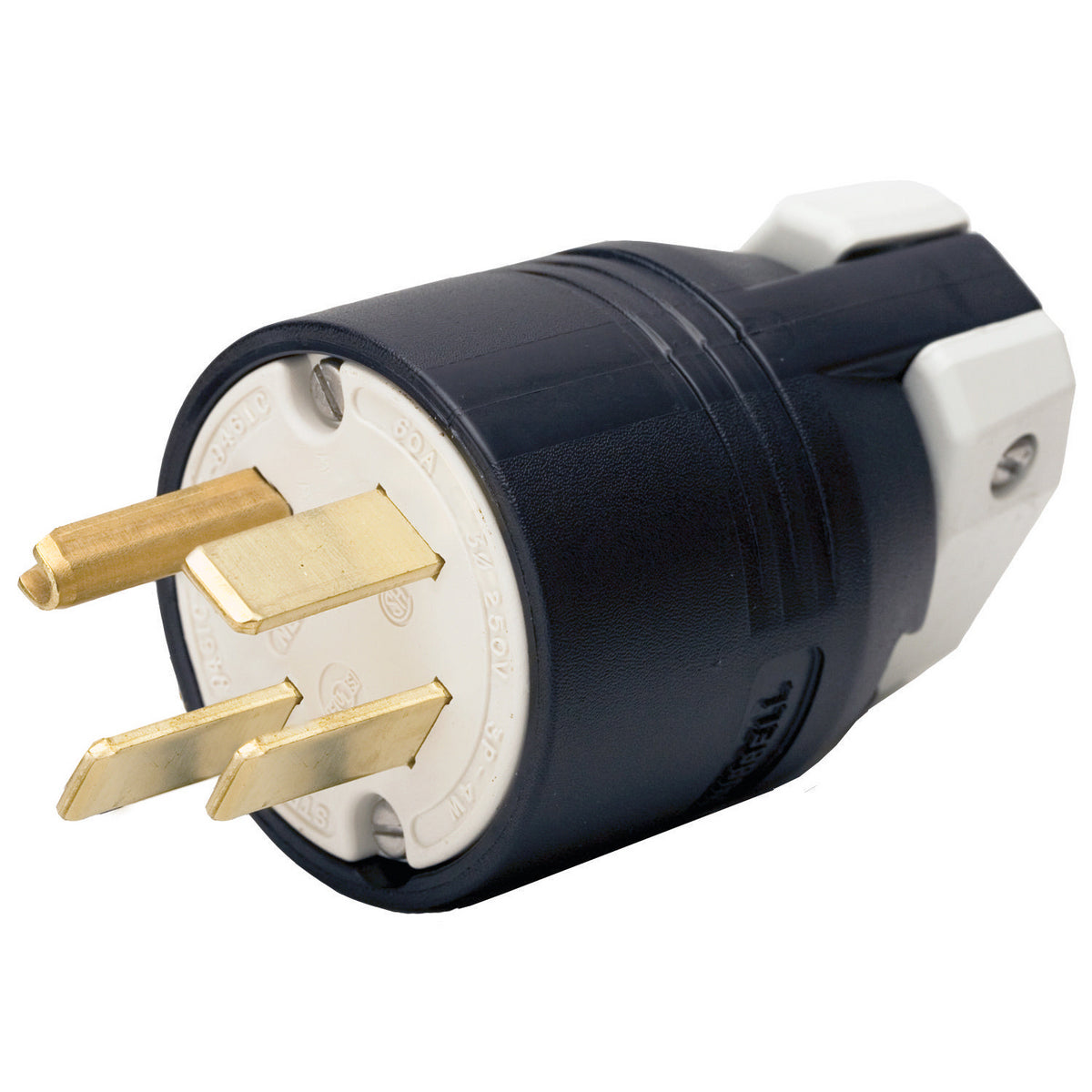

The Hubbell HBL8461C is a straight blade plug designed for 3-phase grounding applications. This connector operates at 250 VAC and is rated for 60 A with a NEMA 15-60P configuration. It is built for industrial and commercial use and features a nylon construction that withstands -40 to 75 degrees Celsius.
- Designed for 3-phase grounding.
- Suitable for cords with a diameter between 0.625 to 1.31 inches.
- IP20 enclosure for moderate environmental protection.
Product Highlights
This plug is essential for electrical professionals who need reliable connectivity for heavy-duty equipment.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501519
Technical Specifications
-
Amperage Rating: 60 A
-
Voltage Rating: 250 VAC
-
Horsepower: 10 hp
-
Number of Wires: 4
-
Number of Poles: 3
-
NEMA Rating: 15-60P
-
Temperature Rating: -40 to 75 degrees Celsius
-
Cord Diameter: 0.625 to 1.31 inches
-
Dimensions: 4.13 x 2.88 x 2.88 inches
-
Material: Nylon
-
Grade: Commercial/Industrial
-
Enclosure: IP20
-
Standards/Approvals: UL 498, UL 94-HB, CSA C22.2 No. 42
