Product Description

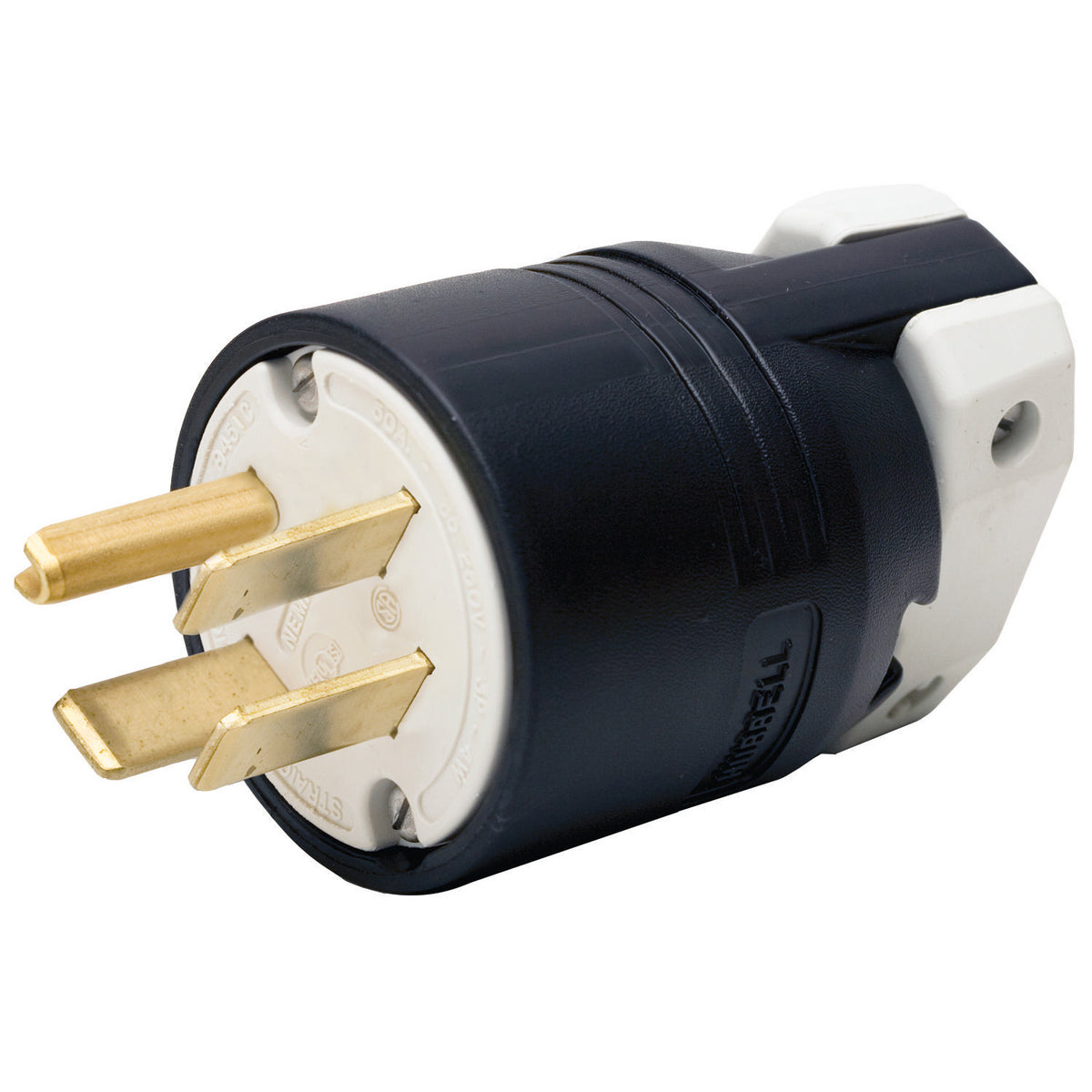

The Hubbell HBL8451C is a wiring device designed for three-phase applications. It features a straight blade plug rated for 250 VAC and 50 A. This device is suitable for commercial and industrial use with a NEMA rating of 15-50P.
- Rated for 250 VAC and 50 A
- IP20 enclosure for protection
- Suitable for cords with diameters from 0.625 to 1.31 inches
Product Highlights
The HBL8451C assures reliable connections with durable construction. It withstands harsh conditions and is built for long-term use.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501516
Technical Specifications
-
Amperage Rating: 50 A
-
Color: Black/White
-
Cord Diameter: 0.625 to 1.31 inches
-
Enclosure: IP20
-
Grade: Commercial/Industrial
-
Horsepower: 7.5 hp
-
Manufacturer Part Number: HBL8451C
-
Material: Composite
-
NEMA Rating: 15-50P
-
Number of Poles: 3
-
Number of Wires: 4
-
Standards/Approvals: UL 498, UL 94-HB, CSA C22.2 No. 42, RoHS Compliant
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Type: 3-Phase Grounding Standard Cord Mount
-
Voltage Rating: 250 VAC
