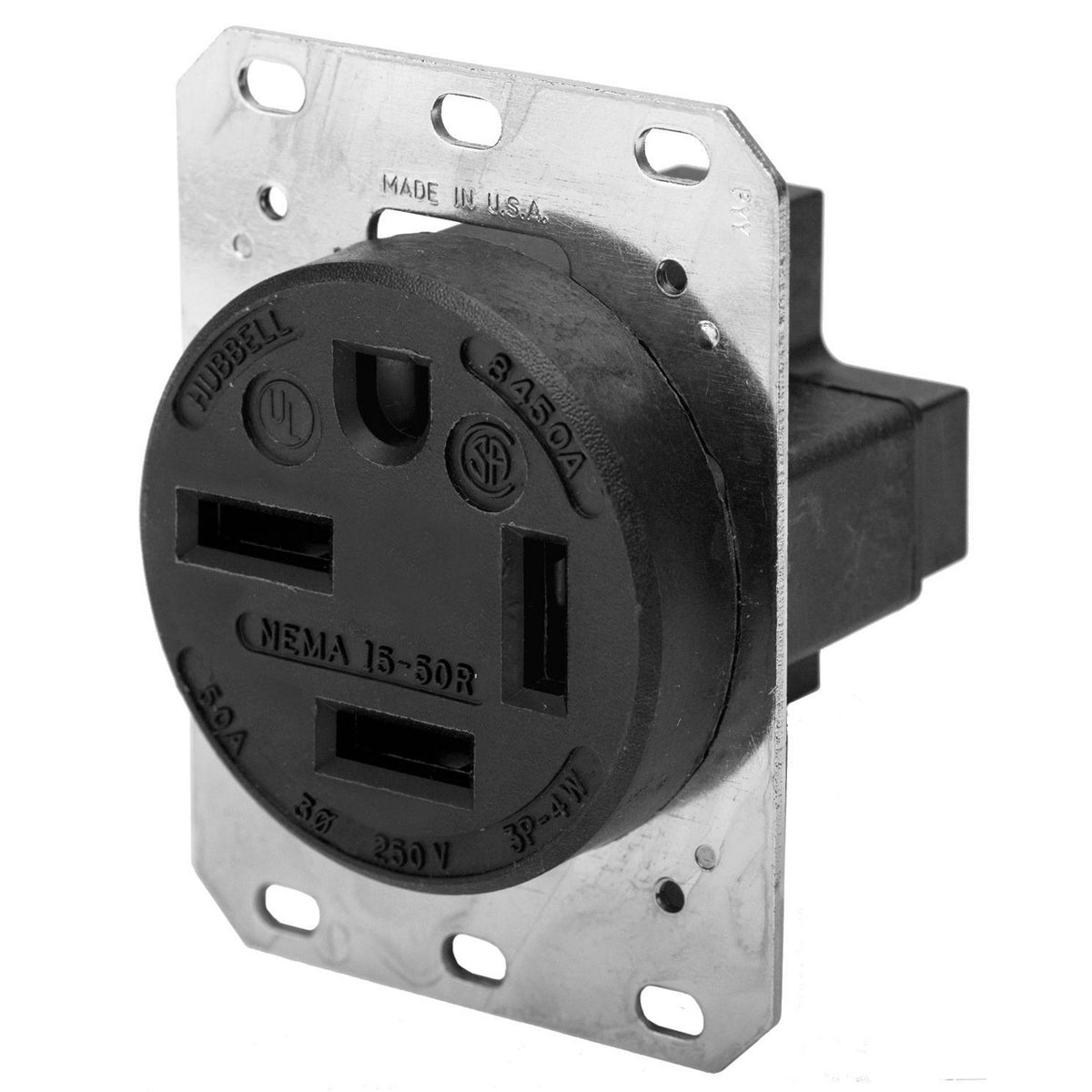

Hubbell HBL8450A 50 Amp 250 Volt 3-Pole 4-Wire NEMA 15-50R Black Single Straight Blade Receptacle

Product Description

The Hubbell HBL8450A is a 50 Amp, 250 Volt, 3-Pole, 4-Wire receptacle. This black single straight blade receptacle is ideal for heavy-duty applications. Use its robust design in industrial environments where safety and reliability are crucial. This receptacle conforms to NEMA 15-50R standards, ensuring compatibility with various plugs.

• 50 Amp maximum current capacity
• Built with thermoplastic material for durability
• Indoor use unless protected by additional means

Product Highlights

The Hubbell HBL8450A features sequenced contacts for enhanced protection and is designed for easy installation. It is ideal for use in demanding commercial and industrial applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Country of Origin: USA

Technical Specifications

• Voltage Rating: 250 Volt
• Current Rating: 50 Amp
• Material: Thermoplastic
• NEMA Rating: 15-50R
• Number of Poles: 3
• Number of Wires: 4-Wire Grounding

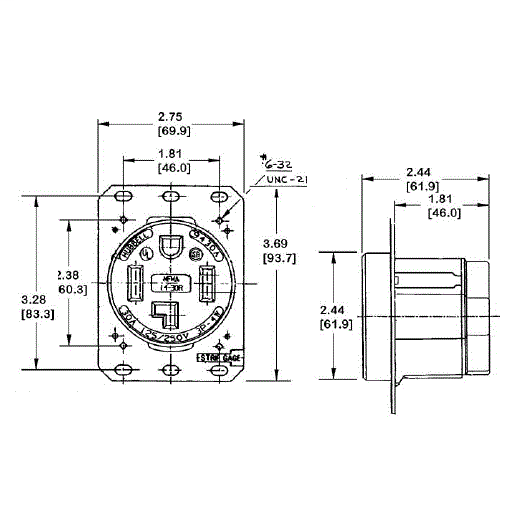

• Height: 2.678 inches
• Width: 3.300 inches
• Length: 3.28 inches
• Weight: 0.6 lbs
• Wire Size: 12-6 AWG
• Operating Temperature: -40 degrees C to 75 degrees C
• Dielectric Strength: Withstands 2,000V minimum
• Applications: Heavy Duty
