Hubbell HBL8432C 30 Amp 3-Phase 250 VAC 3-Pole 4-Wire NEMA 15-30P Black Nylon Straight Blade Plug

Product Description

The Hubbell Wiring Device-Kellems HBL8432C is a straight blade plug designed for industrial applications. This 30 Amp plug operates at 250 VAC and features three poles and four wires. The plug's NEMA configuration is 15-30P, suitable for heavy-duty use.

• 3-pole, 4-wire configuration for enhanced power distribution
• Rated for 30 Amps and 250 Volts
• Constructed with surefire nylon housing for superior durability

Product Highlights

This plug is ideal for commercial and industrial settings, ensuring secure connections for power tools and machinery.

Product Information

Standard Information

• Catalog Number: HBL8432C
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Current Rating: 30 Amps
• Voltage Rating: 250 Volts
• Wattage: 7.5 kW
• Material: Composite

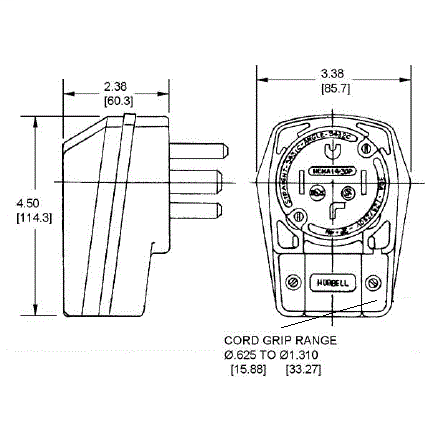

• Dimensions: 5.168 inches (Length) x 3.300 inches (Width) x 3.418 inches (Height)
• Weight: 0.85 lbs
• Connection Type: Terminal Screws
• Wire Size: 12-4 AWG
• Number of Poles: 3
• Number of Wires: 4
• Country of Origin: USA
