Hubbell HBL8430A HUB RECEPT 3-Phase Heavy Duty Grounding Single Standard Screw Mount Replacement MPN

Product Description

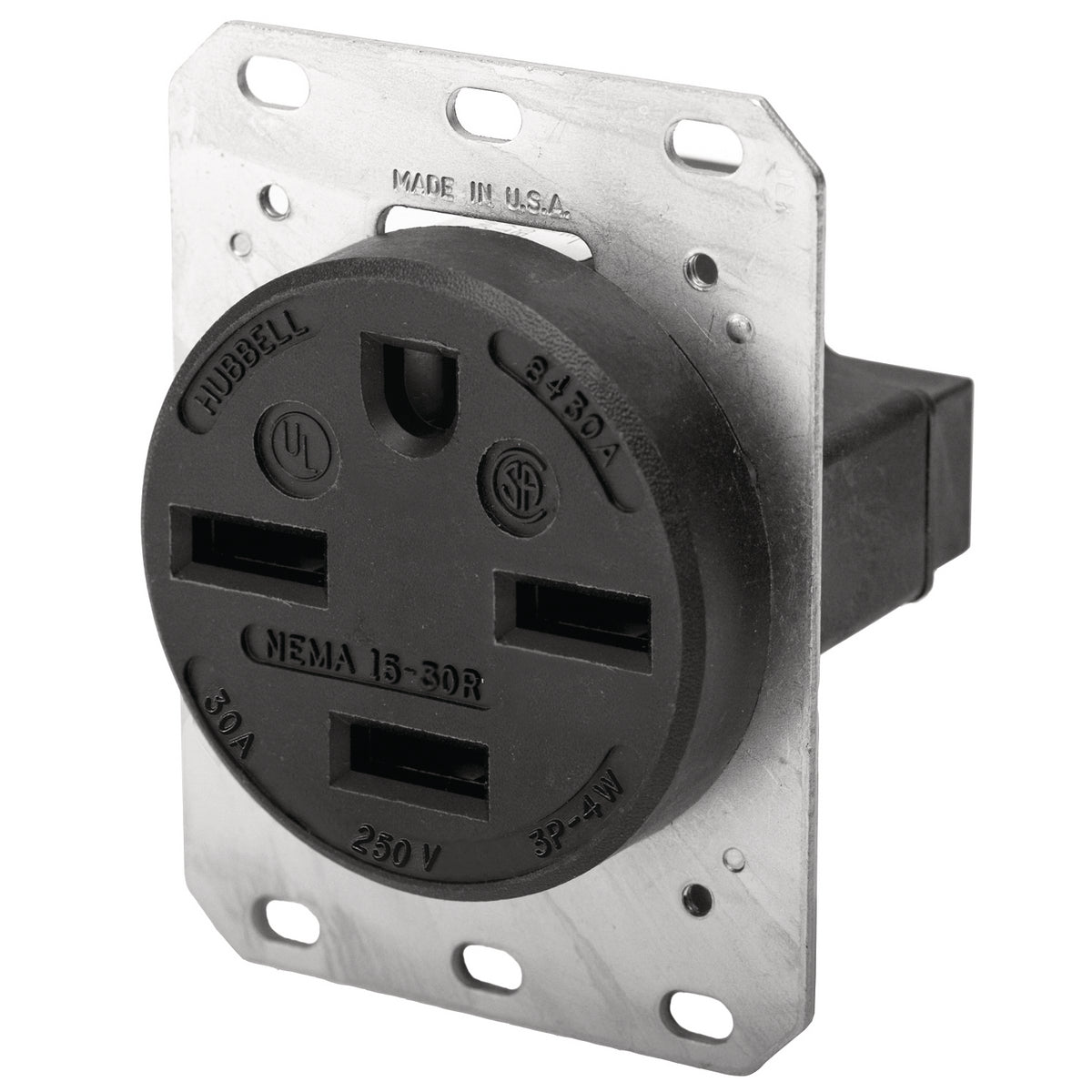

The Hubbell HBL8430A is a three-phase heavy-duty grounding single standard screw mount straight blade receptacle. This electrical device is rated for two hundred fifty volts alternating current and thirty amperes. The receptacle features three poles and four wires for versatile applications.

• Designed for dry location and indoor applications.
• Rated for industrial use with an IP20 enclosure.
• Temperature rated from negative forty to seventy-five degrees Celsius.

Product Highlights

Ideal for use in various industrial environments, this receptacle is built to withstand demanding conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL8430A

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Horsepower: 3 hp
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: 15-30R
• Material: Thermoplastic/Composite
• Dimensions: 2.75 in W x 2.44 in D x 3.69 in H
• Temperature Rating: -40 to 75 deg C
• Enclosure Rating: IP20
• Standards/Approvals: UL 498 File No. E2186 Listed, CSA Certified, NEMA WD1/WD5/WD6, RoHS Compliant
