Product Description

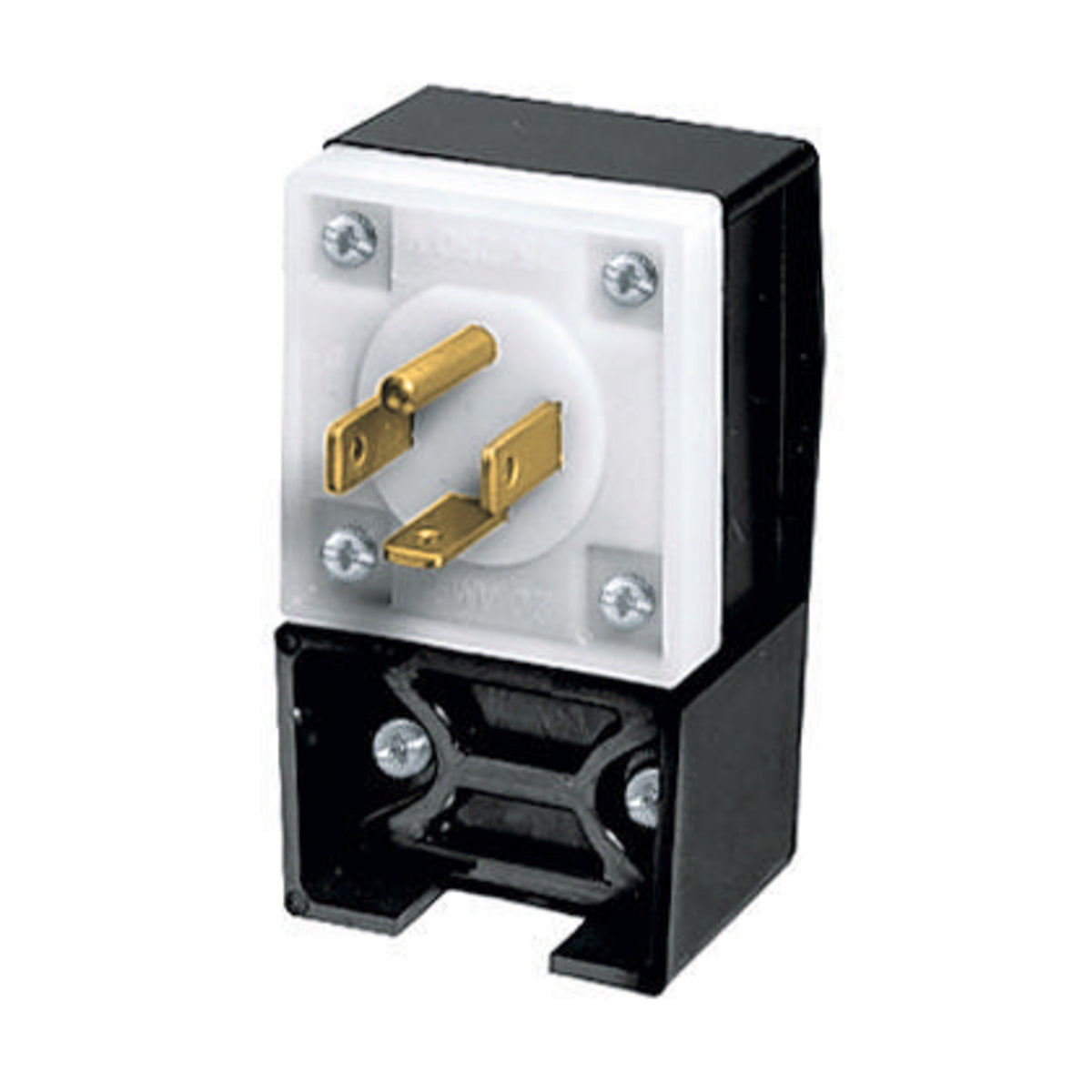

The Hubbell HBL8411C is a 4-wire angled plug designed for reliable electrical connections. It is rated for 125/250 VAC and can support up to 20 A of current. This product is suitable for commercial and industrial applications, offering durability and safety.
- 1-Phase grounding male standard cord mount
- IP20 enclosure protects against dust
- Compatible with NEMA 14-20P rating
Product Highlights
This wiring device is ideal for various settings where robust plug connections are needed. It features a composite body for durability and operates efficiently in a range of temperatures.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: HBL8411C
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 125/250 VAC
-
Horsepower: 2 hp
-
Number of Poles: 3
-
Number of Wires: 4
-
Enclosure: IP20
-
Temperature Rating: -40 to 75 deg C
-
Cord Diameter: 0.39 to 0.775 in
-
Material: Composite
-
NEMA Rating: 14-20P
-
Dimensions: 3.64 x 2.34 x 1.61 in
-
Standards/Approvals: UL 498, File No. E1706 Listed, CSA C22.2 No. 42, 280, RoHS Compliant
