Product Description

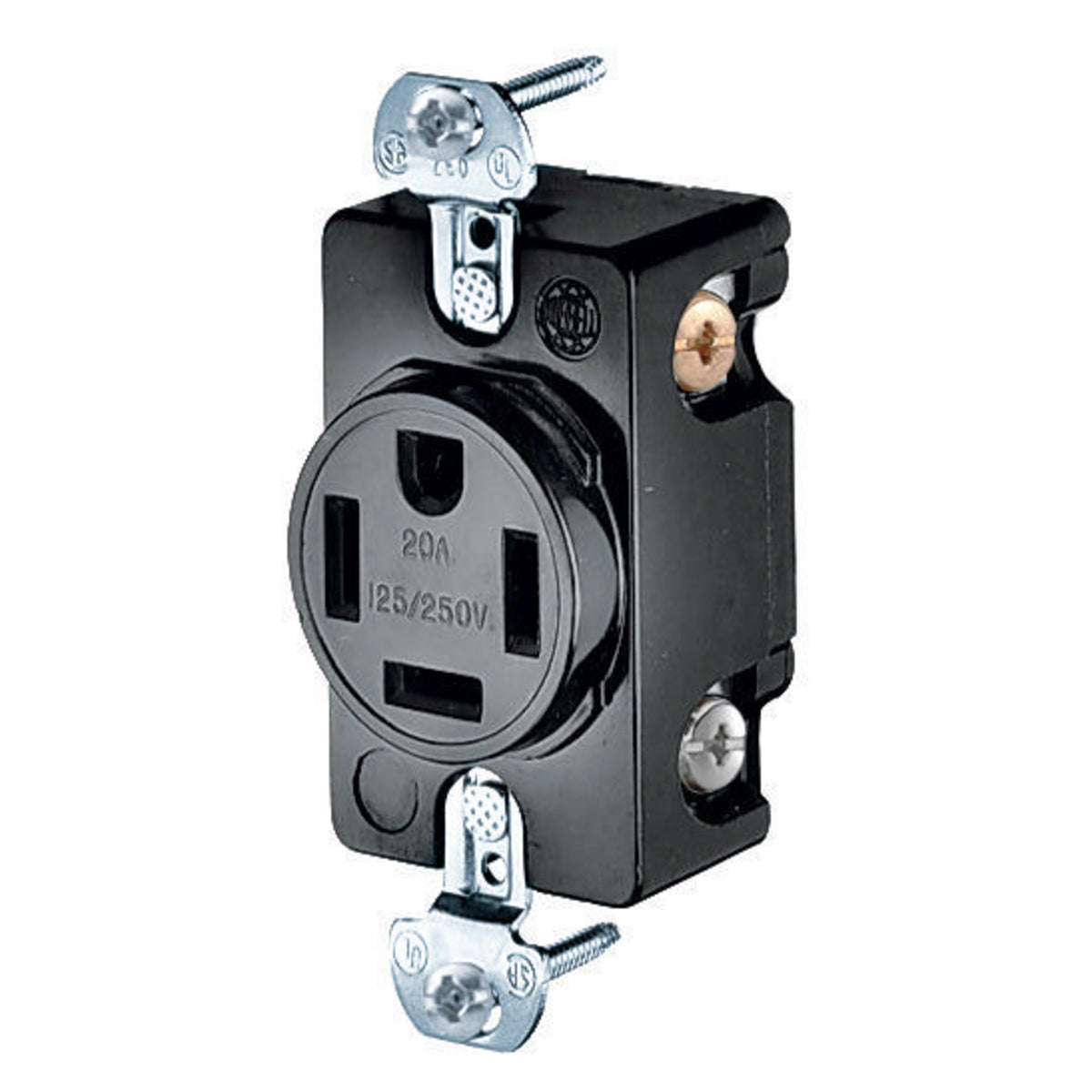

The Hubbell HBL8410 is a wiring device known as a straight blade receptacle designed for heavy-duty use. This device operates at 125/250 VAC and is rated for 20 Amps. It features a self-grounding design and a single standard screw mount. This receptacle is ideal for use in dry locations and indoor applications.
- Withstands 2000 VAC dielectric voltage
- Compatible with 14 to 12 AWG solid or stranded copper conductors
- Includes back and side wired screw terminal connections
Product Highlights
Hospitals and other demanding environments can rely on the HBL8410 for its durable construction and reliable performance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: HBL8410
Technical Specifications
-
Amperage Rating: 20 A
-
Application: Dry Location and Indoor Applications
-
Color: Black
-
Dimensions: 2.44 x 1.5 x 1.24 inches
-
Enclosure: IP20
-
Grade: Hospital
-
Horsepower: 2 hp
-
NEMA Rating: 14-20R
-
Number of Poles: 3
-
Number of Wires: 4
-
Standards/Approvals: UL 498 File No. E2186 Listed, CSA C22.2 No. 42, 280C, NEMA WD1/WD5/WD6, RoHS Compliant
-
Temperature Rating: -40 to 75 degrees C
-
Terminal Type: Back and Side Wire/Screw
-
Type: 1-Phase Extra Heavy Duty Self-Grounding Single Standard Screw Mount
-
Voltage Rating: 125/250 VAC
