Hubbell HBL8319C HUB 20A125V FEMALE HOSP CONN NEMA 5-20R

Product Description

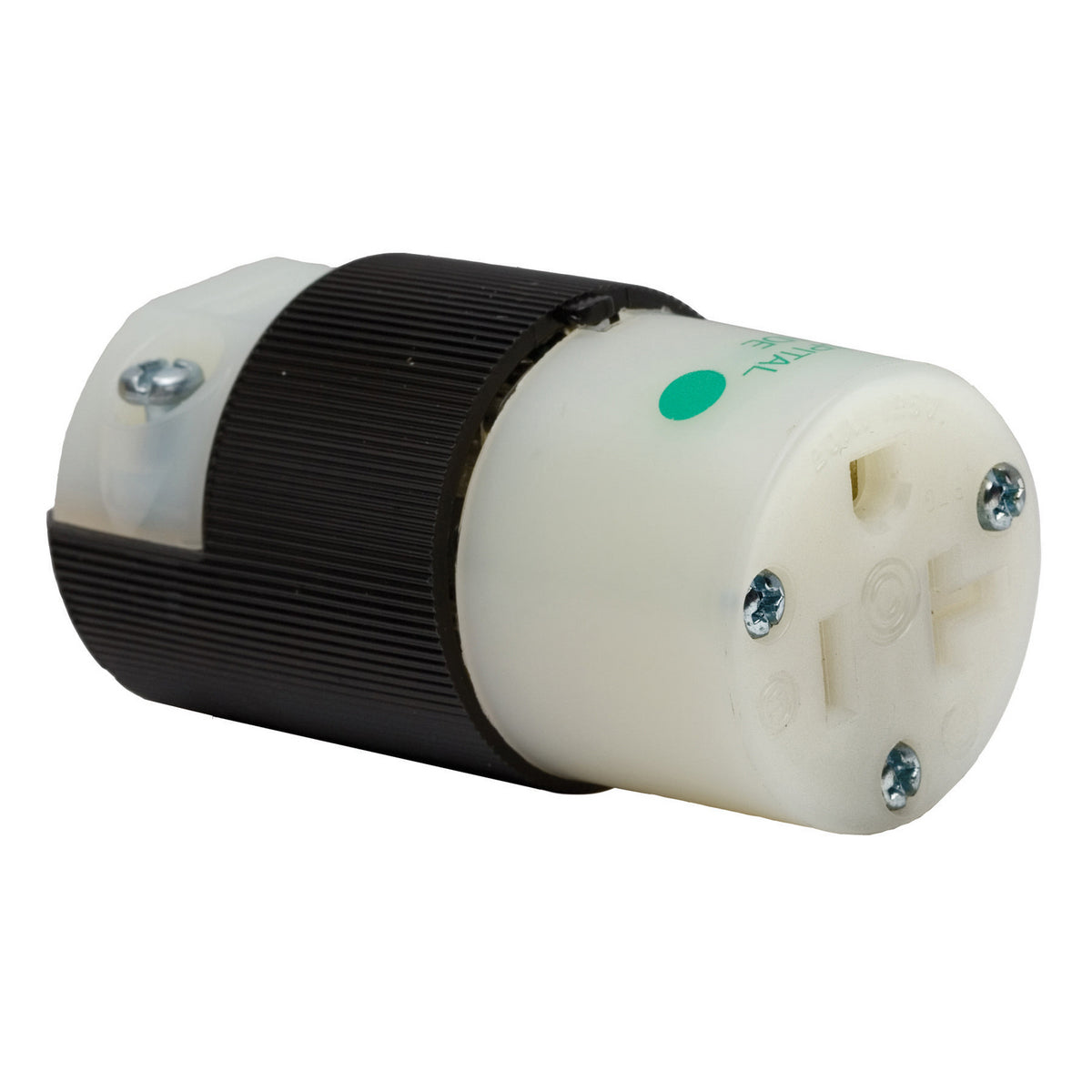

Hubbell HBL8319C is a straight blade connector designed for female standard cord mounting. This connector is rated for 125 VAC and 20 A. It features a 2 pole, 3 wire configuration with a 5-20R NEMA rating, suitable for hospital-grade applications. The IP20 enclosure ensures protection against solid objects. The connector accommodates cords with a diameter ranging from zero point twenty-three to zero point seventy-two inches. It operates effectively in temperatures from negative forty to seventy-five degrees Celsius.

• Beveled housing prevents snagging
• Powerful offsetting cord grips clamp on individual conductors
• Durable nylon construction

Product Highlights

Ideal for use in medical facilities where safety and reliability are paramount.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL8319C

Technical Specifications

• Amperage Rating: 20 A
• Color: Black/White
• Cord Diameter: 0.23 to 0.72 inches
• Dimensions: 2.78 x 1.53 x 1.53 inches
• Enclosure: IP20
• Grade: Hospital
• Material: Nylon
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 125 VAC
