Hubbell HBL8315C Insulgrip 20A 125V (Single Pack)

Product Description

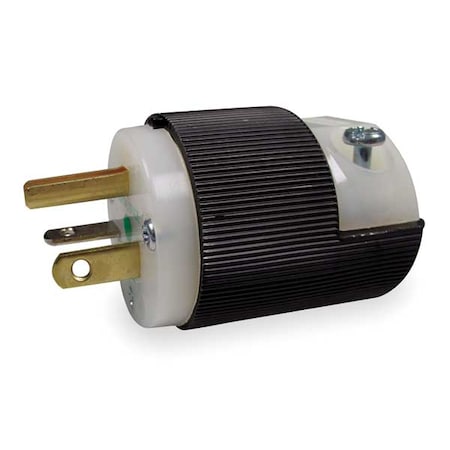

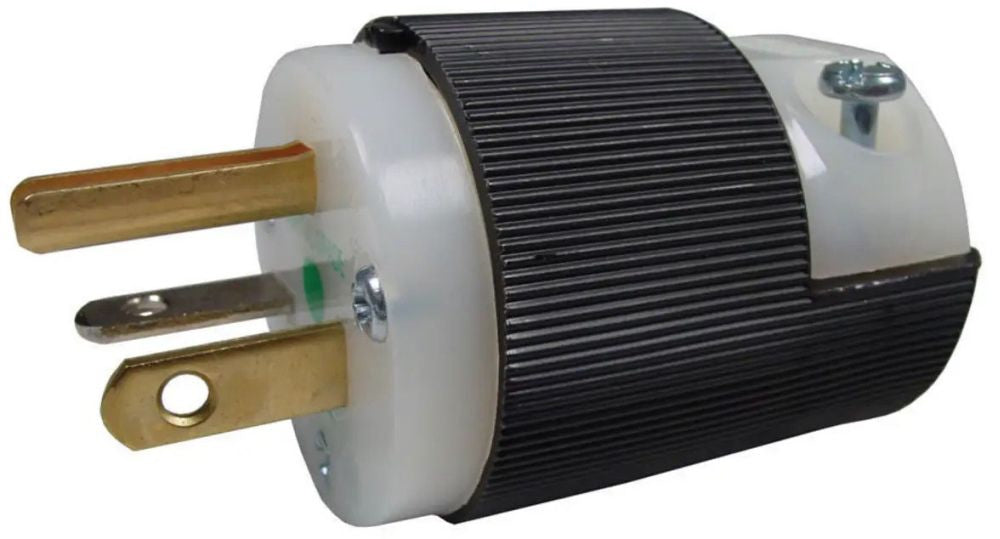

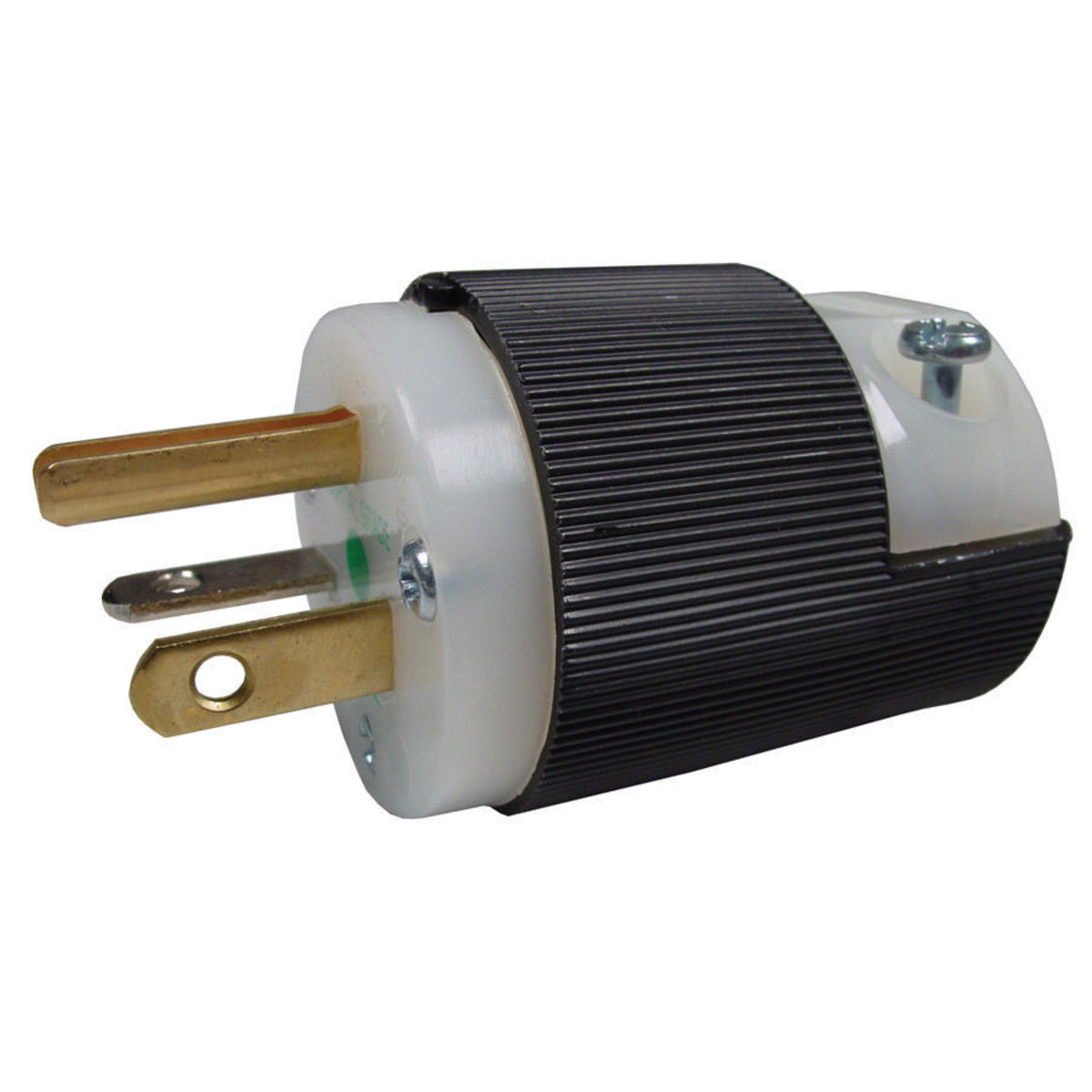

The Hubbell HBL8315C is a hospital-grade Insulgrip straight blade male cord-mount plug rated 20 A at 125 VAC (NEMA 5-20P). It is a 2-pole, 3-wire grounding device with screw terminals and accepts 0.23 to 0.72 inch cord diameters, supporting 18 AWG to 10 AWG conductors. Constructed of nylon with an IP20 enclosure, it is rated for continuous operation from -40 to 75 °C and includes beveled housing and offsetting cord grips.

• Rated 20 A, 125 VAC (NEMA 5-20P); 2 poles, 3 wires, grounding configuration; 1 hp rating
• Cord acceptance 0.23 to 0.72 in; terminal accommodation #18 AWG to #10 AWG; screw terminal connections
• Nylon Insulgrip construction with IP20 enclosure, beveled housing, offsetting cord grips; temperature -40 to 75 °C

Product Highlights

Hospital-grade NEMA 5-20P Insulgrip plug, 20A/125V, screw terminal cord-mount design with IP20 rating

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL8315C
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: HBL8315C
• Brand: Hubbell
• Product Name: Insulgrip straight blade male plug
• NEMA Configuration: 5-20P
• Voltage Rating: 125 VAC
• Current Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Cord Diameter: 0.23 to 0.72 in
• Wire Size: 18 AWG to 10 AWG
• Terminal Type: Screw
• Material: Nylon
• Enclosure Rating: IP20
• Operating Temperature: -40 to 75 °C
• Dimensions: 1.97 x 1.53 x 1.53 in
• Mounting Type: Cord mount
• Dielectric Voltage: Withstands 2000 V AC minimum
• Flammability Rating: UL 94 HB
• Certifications: RoHS compliant; Federal Specification W-C-596; NEMA WD1/WD5; UL 498 File No. E2186; CSA C22.2 No. 42/285
• Wattage: 2000 W
• Terminal Retainer Material: PBT
• Terminal Clamp Material: Plated steel
• Terminal Screw Material: Brass
• Blade Material: Brass / copper alloy contacts
• Grade: Hospital
