Product Description

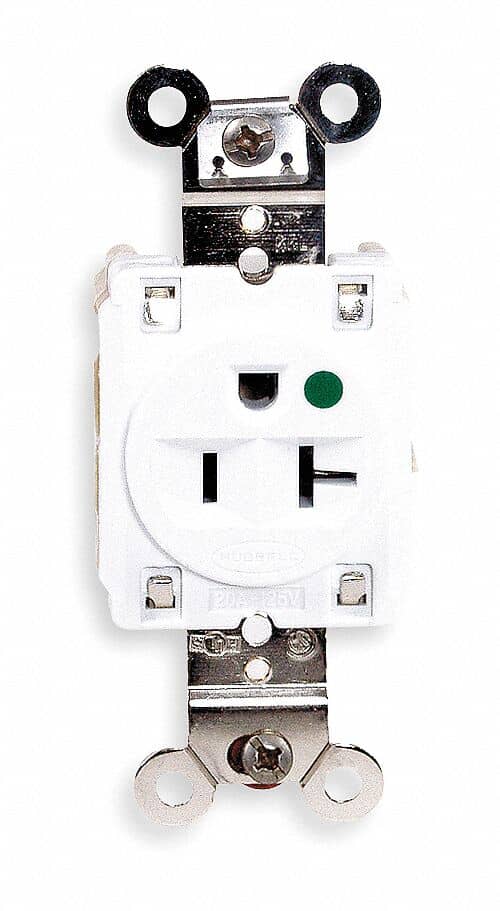

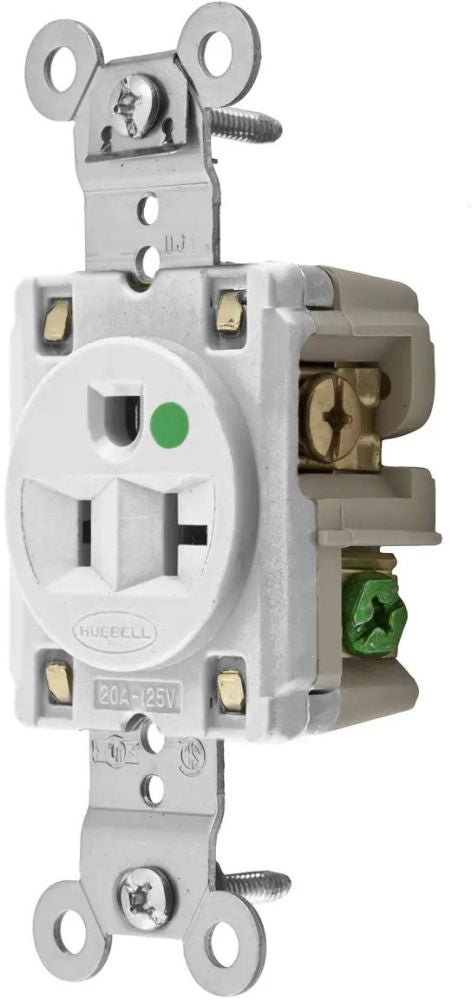

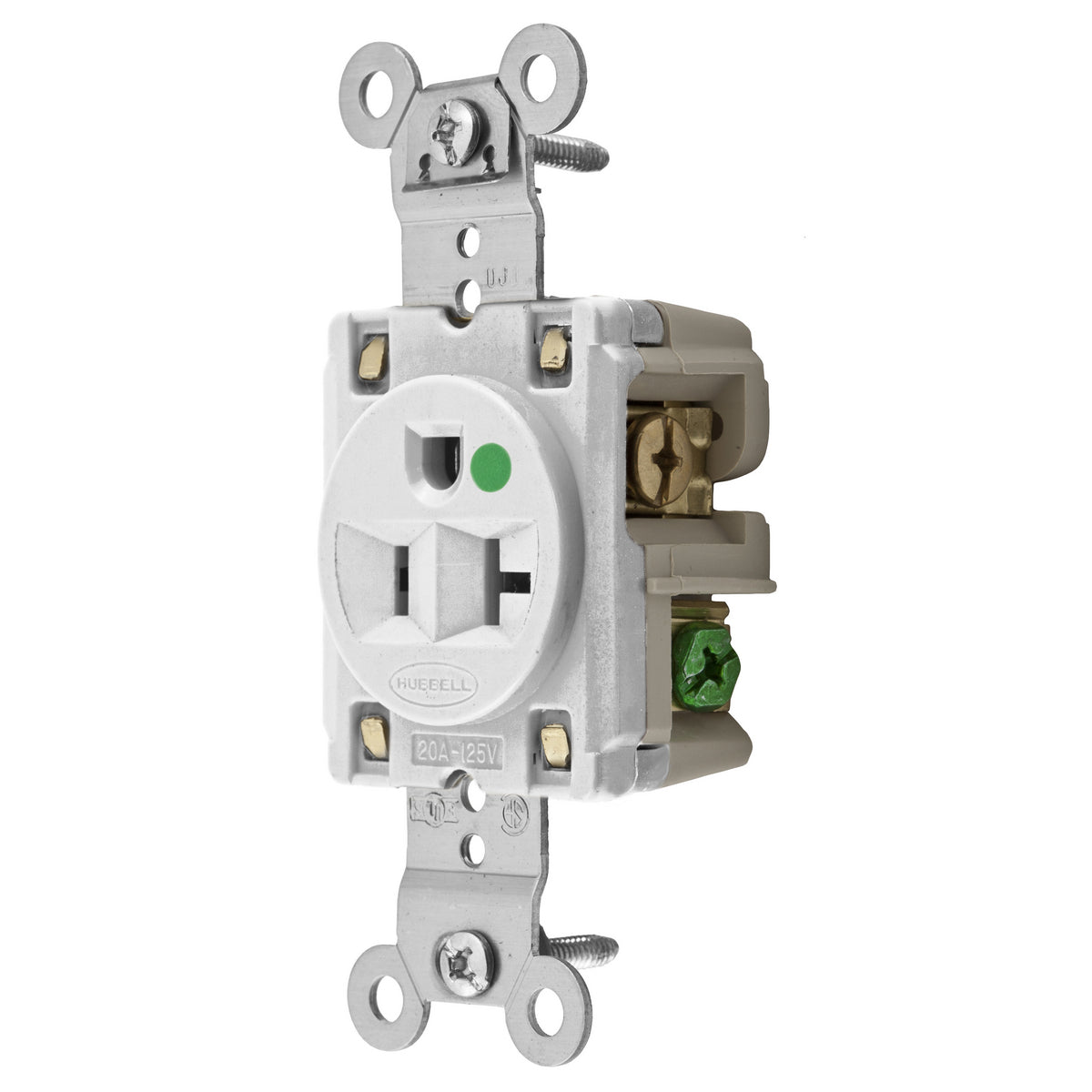

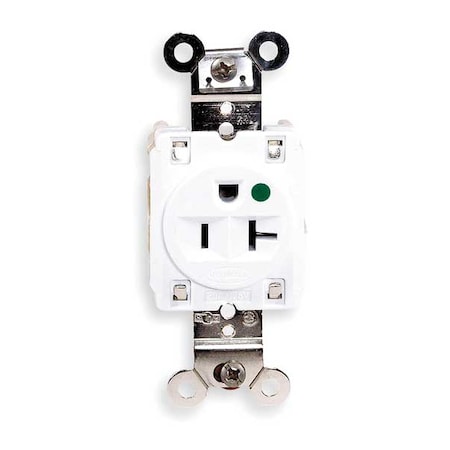

Hubbell HBL8310W is a single 20 A, 125 V straight-blade receptacle configured to NEMA 5-20R standards. It is hospital-grade extra heavy-duty with 2-pole, 3-wire grounding and back-and-side screw terminals accepting #12 to #10 AWG conductors. The device has a nylon face and PBT base, a one-piece nickel-plated brass ground strap, IP20 rating, UL and CSA certifications, dielectric withstand of 2,000 V, and an operating range of -40 to 75 degrees C.
- Rated 20 A, 125 V AC; NEMA 5-20R single straight-blade outlet
- Hospital-grade design with one-piece nickel-plated brass integral ground strap and four-point/self-grounding system
- Back and side wired screw terminals; accepts #12â#10 AWG; rated 1 hp and withstands 2,000 V dielectric
Product Highlights
Hospital-grade 20A 125V NEMA 5-20R single receptacle; nylon face, PBT base; back/side wiring; UL/CSA certified; IP20.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: HBL8310W
-
Country of Origin: Puerto Rico
Technical Specifications
-
Brand: Hubbell
-
Manufacturer Part Number: HBL8310W
-
Product Type: Single receptacle
-
Grade: Hospital grade; extra heavy duty
-
NEMA Configuration: 5-20R
-
Amperage: 20 A
-
Voltage Rating: 125 V AC
-
Poles: 2
-
Wires: 3
-
Grounding: Grounding (self-grounding clip; grounding clip included)
-
Wiring: Back and side wired
-
Terminal Type: Screw terminals (back and side)
-
Face Material: Nylon
-
Base Material: Polybutylene terephthalate (PBT)
-
Contact/Strap Material: Nickel-plated brass (one-piece integral ground strap)
-
Grounding System: Four-point grounding system; automatic self-grounding clip (stainless steel)
-
Wire Size / Terminal Accommodation: #12 - #10 AWG (stranded or solid copper)
-
Horsepower: 1 hp
-
Wattage: 2500 W
-
Dimensions: 3.28 x 1.63 x 1.19 in
-
Operating Temperature: -40 to 75 deg C
-
IP Rating: IP20
-
Flammability Rating: UL 94: Top V-2; Base V-0 and 5VA
-
Standards/Certifications: UL 498 File No. E2186; CSA C22.2 No. 42 File 285; NEMA WD-1/WD5/WD6; Federal Specification W-C-596; RoHS compliant
-
Dielectric Voltage: Withstands 2,000 V minimum
-
Mounting Type: Screw mounting, flush mount
-
Polarized: Yes
-
Tamper Resistant: No
-
Weather Resistant: No
-
UPC: 783585016313
-
Country of Origin: PRI
