Product Description

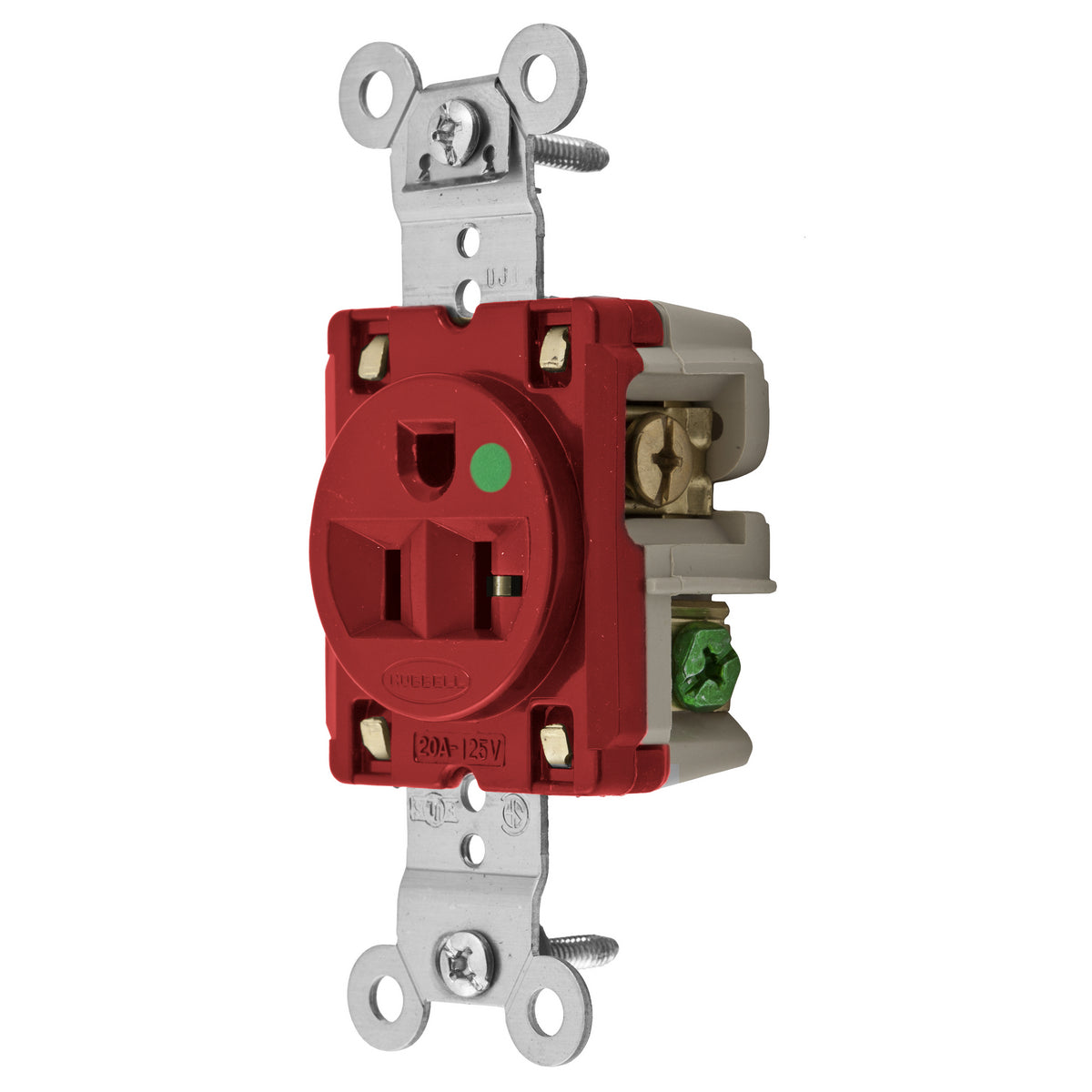

The Hubbell HBL8310R is a hospital-grade straight blade receptacle designed for demanding environments. This device features a one-phase, extra heavy-duty self-grounding mount with a nylon construction. It operates at one hundred twenty-five volts, handling up to twenty amperes and is rated for one horsepower. The NEMA rating is five-twenty R, ensuring compatibility with standard medical equipment.
- Constructed with a brass mounting strap and stainless steel self-grounding clip
- Designed for easy installation with back and side wire/screw terminals
- Meets UL standards with exclusive ground contact design
Product Highlights
This receptacle is engineered to withstand the rigors of hospital use, featuring a reinforced thermoplastic base and unique terminal design to reduce heat build-up.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501595
Technical Specifications
-
Amperage Rating: 20 A
-
Color: Red
-
Dimensions: 3.28 x 1.63 x 1.19 inches
-
Enclosure: IP20
-
Grade: Hospital
-
Horsepower: 1 hp
-
Material: Nylon
-
NEMA Rating: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Series: HBL®
-
Standards/Approvals: CSA C22.2 No. 42 | UL 498
-
Temperature Rating: -40 to 75 degrees C
-
Terminal Type: Back and Side Wire/Screw
-
Type: 1-Phase Extra Heavy Duty Self-Grounding Straight Blade
-
Voltage Rating: 125 VAC
