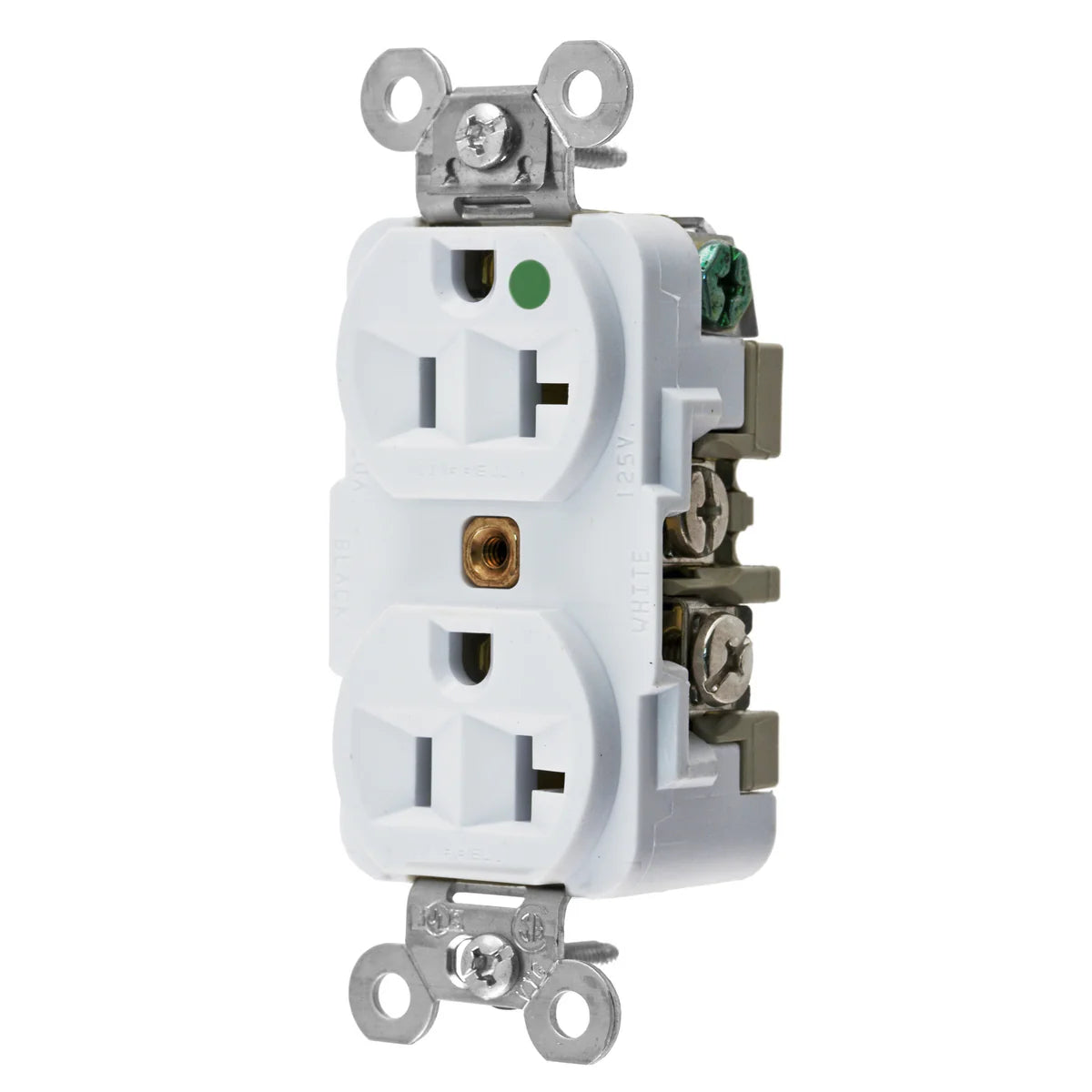

Hubbell HBL8300W HUB 20A125V WHITE HOSP DPLX RCPT NEMA 5-20R

Product Description

The Hubbell HBL8300W is a straight blade receptacle designed for heavy-duty use. This duplex receptacle is rated for twenty amps and operates at one hundred twenty-five volts. It features a hospital-grade design suitable for medical and commercial applications.

• Durable thermoplastic construction
• Compatible with fourteen to twelve AWG solid or stranded copper conductors
• Back and side wire/screw terminal for easy installation

Product Highlights

The HBL8300W ensures reliable power delivery in crucial environments. It is ideal for healthcare settings and any location requiring extra heavy-duty electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL8300W

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Thermoplastic
• Dimensions: 3.28 x 1.65 x 1.19 inches
• Enclosure: IP20
• Temperature Rating: -40 to 75 degrees Celsius
• Grade: Hospital
• Standards/Approvals: UL 498, CSA 22.2 No. 42, RoHS Compliant
• Terminal Type: Back and Side Wire/Screw
