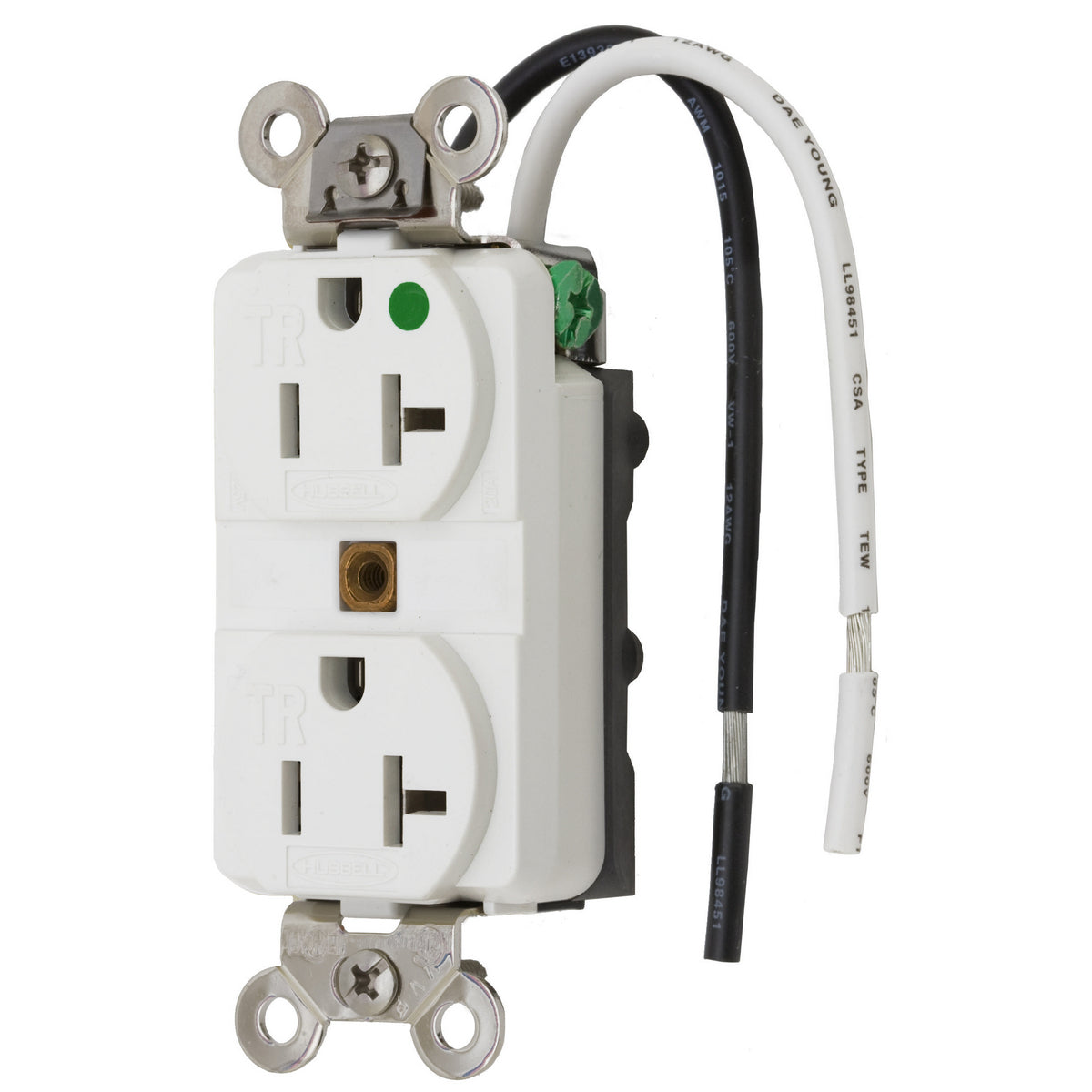

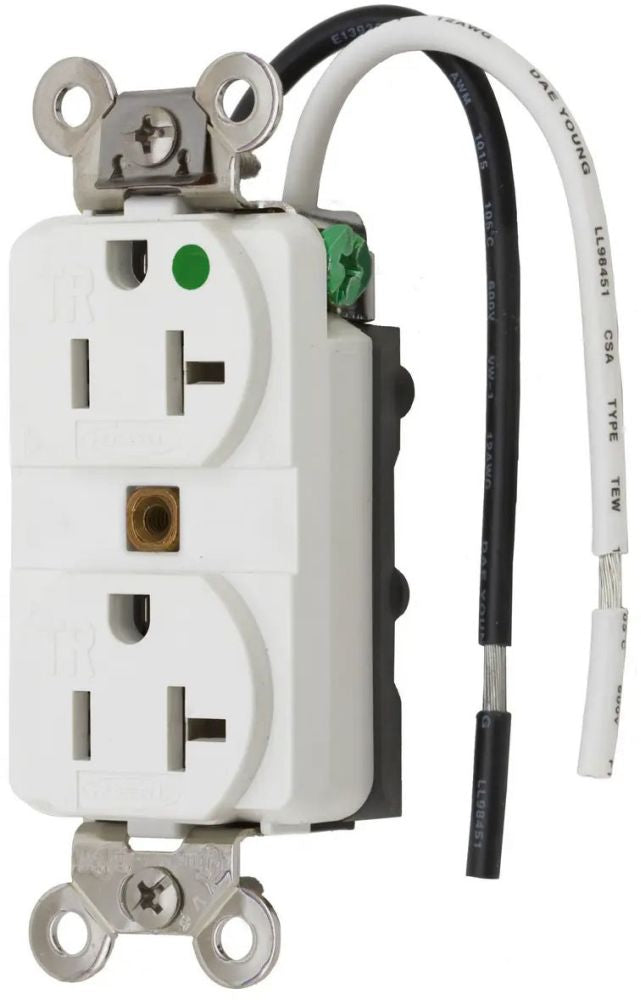

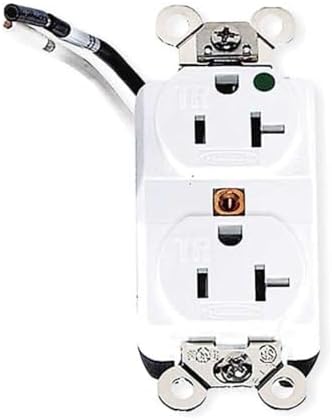

Hubbell HBL8300SGWA Tamper-Resistant Hospital Grade Receptacle 20A/125V (Duplex) HBL8300SGWA

Product Description

Hubbell HBL8300SGWA is a 20A, 125V tamper-resistant hospital-grade duplex receptacle designed for healthcare and commercial installations. It provides NEMA 5-20R configuration, tamper-resistant shutters, a one-piece nickel-plated brass ground strap and integral wire leads for safe termination. The device features back and side wire/screw terminals, thermoplastic/PBT construction, IP20 suitability, dielectric strength of 2,000V minimum, and an operating range of -40 to 75 C.

• Rated 20 A at 125 V, NEMA 5-20R, certified to UL 498 and CSA C22.2
• Tamper-resistant shutters, nickel-plated bypass contacts, and four-point grounding with one-piece nickel-plated brass ground strap
• Back and side wire/screw terminals, integral 6 in #12 AWG lead wires, thermoplastic/PBT deep body design

Product Highlights

Hospital-grade tamper-resistant duplex receptacle with back/side wiring and integral leads

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL8300SGWA
• Country of Origin: China

Technical Specifications

• Brand: Hubbell
• Manufacturer Part Number: HBL8300SGWA
• Electrical Rating: 20 A / 125 V
• NEMA Rating: 5-20R
• Type: Tamper-Resistant Duplex Receptacle
• Grade: Hospital / Extra Heavy Duty
• Material: Thermoplastic / Polybutylene Terephthalate (PBT)
• Mounting Type: Screw mount
• Terminal Type: Back and side wire / screw
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: #12 AWG to #10 AWG
• Lead Wires: 6 in, #12 AWG 65/30 stranded copper
• Contacts: 0.037 in (0.9 mm) nickel-plated brass
• Ground Strap: One-piece nickel-plated brass
• Grounding System: Four-point grounding system with self-grounding clip
• Dielectric Strength: Withstands 2,000 V minimum
• Current Interrupting: Certified for current interrupting at full rated current
• Operating Temperature: -40 to 75 C
• IP Rating: IP20
• Dimensions (L x W x H): 3.29 in x 1.65 in x 1.27 in
• Weight: 0.35 lb
• Wattage: 2500 W
• Approvals / Certifications: UL 498; CSA C22.2; NEMA WD-6; Fed Spec W-C-596; UL Listed File No. E2186
• Flammability: UL 94V-0
• Configuration: Duplex (2 outlets)
• Applications: Hospital and commercial extra heavy duty environments; indoor dry unless additional protection provided
• UPC: 783585152318
• Country of Origin: CHN
