Product Description

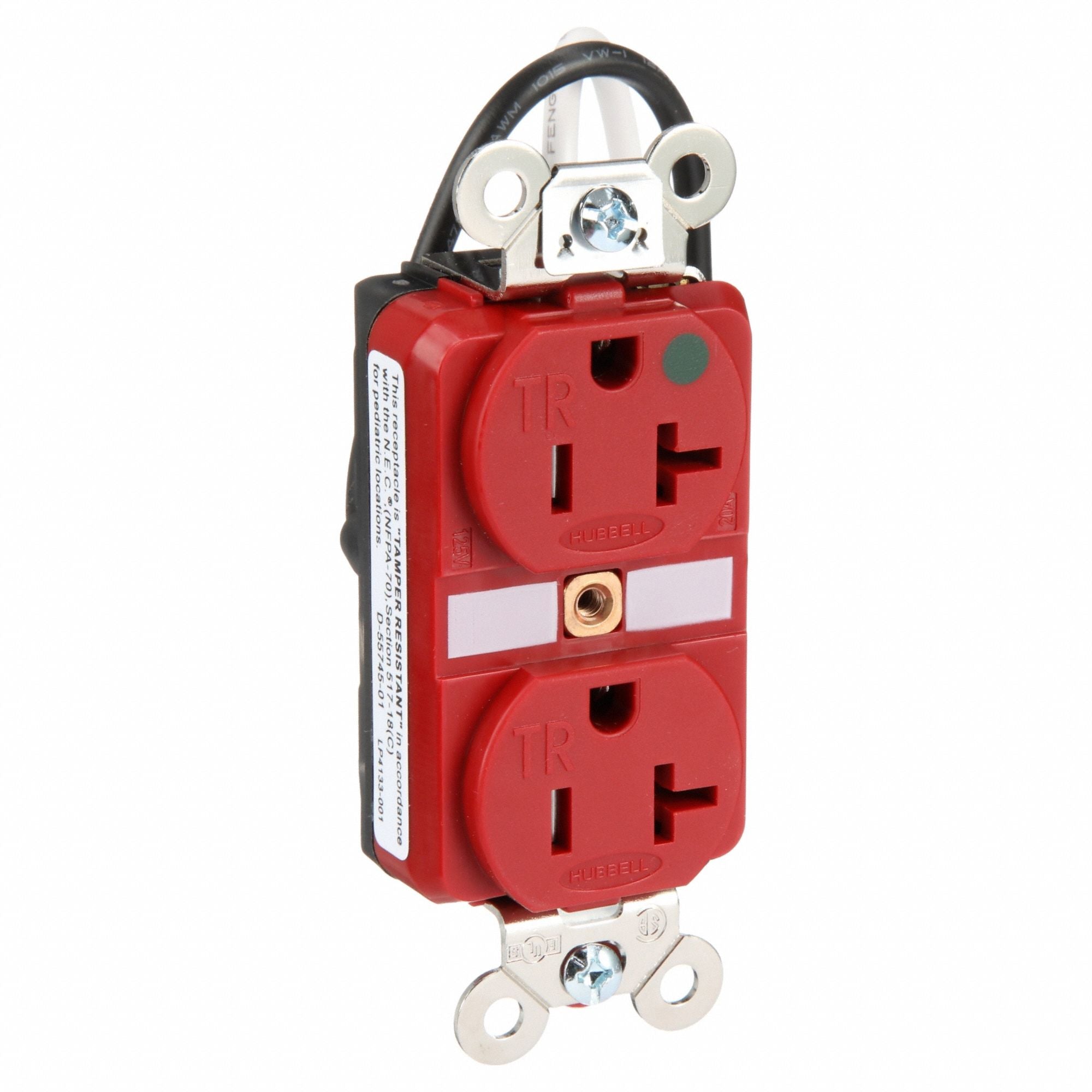

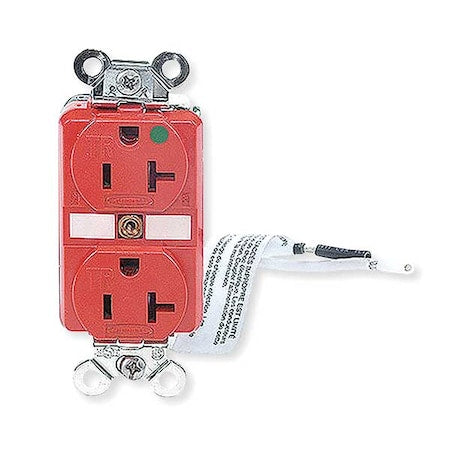

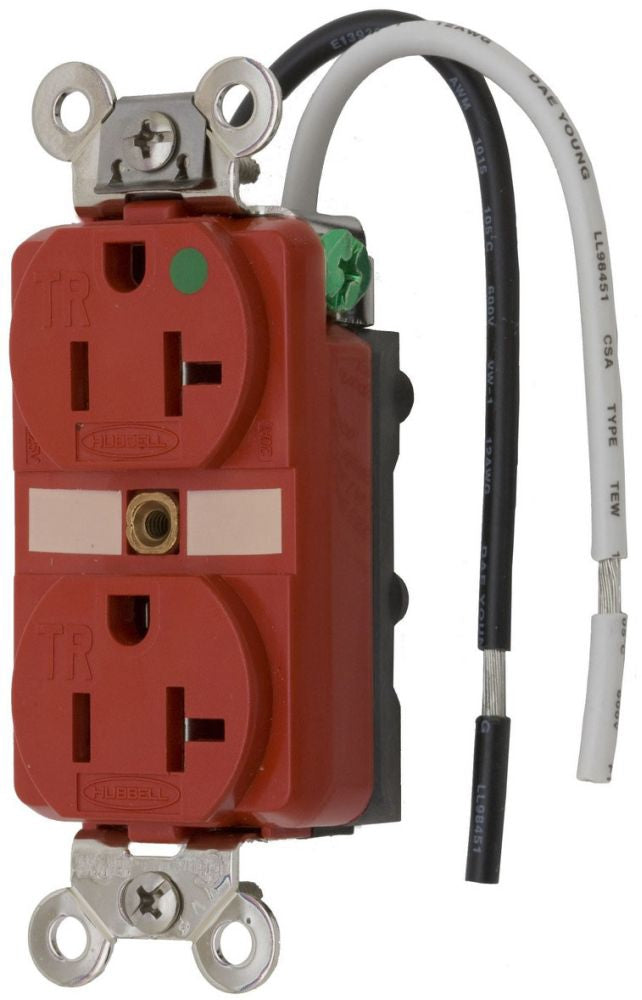

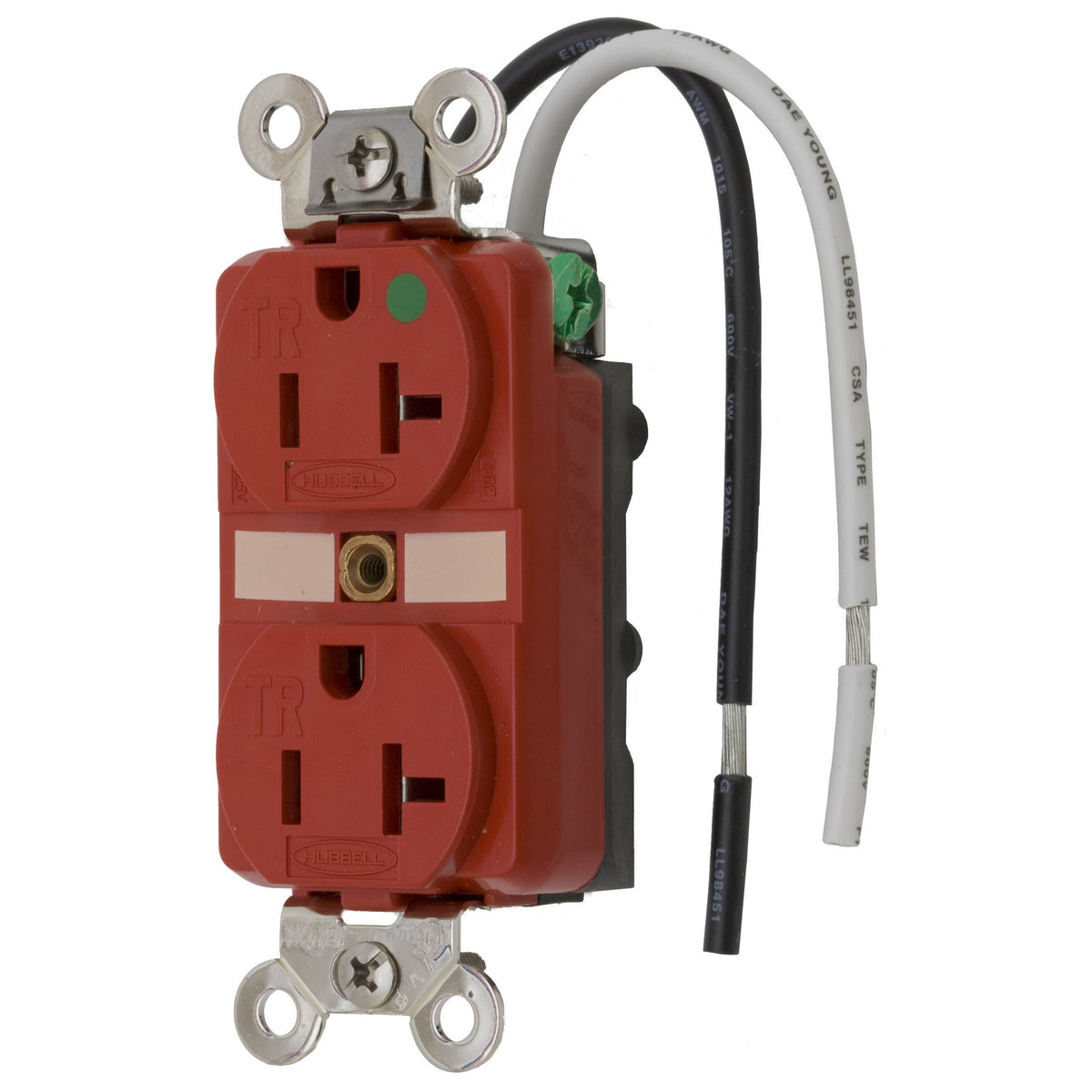

Hubbell HBL8300SGRA is a hospital-grade, tamper-resistant straight-blade duplex receptacle rated 20 A, 125 VAC with NEMA 5-20R configuration. The device features thermoplastic/PBT construction with nickel-plated brass contacts, a one-piece nickel-plated brass ground strap, and back or side screw terminals that accept #12 to #10 AWG. It is IP20 rated, operates from -40 to 75 deg C, and meets applicable UL and federal standards for hospital use.
- Rated 20 A, 125 VAC; NEMA 5-20R configuration; 2-pole, 3-wire grounding device (1 hp).
- Thermoplastic/PBT construction with nickel-plated brass contacts and one-piece nickel-plated brass ground strap.
- Back and side screw terminals; accepts #12 to #10 AWG; tamper-resistant mechanism; IP20, operating -40 to 75 deg C.
Product Highlights
Hospital-grade tamper-resistant 20 A 125 VAC duplex receptacle with NEMA 5-20R, back/side wiring, nickel-plated brass contacts, and IP20 rating.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: HBL8300SGRA
-
Country of Origin: China
Technical Specifications
-
Brand: Hubbell
-
Manufacturer Part Number: HBL8300SGRA
-
Receptacle Type: Duplex straight blade
-
NEMA Configuration: 5-20R
-
Amperage: 20 A
-
Voltage Rating: 125 VAC
-
Horsepower: 1 hp
-
Poles: 2
-
Wires: 3
-
Grade: Hospital / Extra Heavy Duty
-
Tamper Resistant: Yes
-
Material: Thermoplastic (PBT face/base)
-
Contact Material: Nickel-plated brass
-
Ground Strap: One-piece nickel-plated brass
-
Grounding: Grounding / self-grounding clip
-
Wire Size: #12 AWG to #10 AWG
-
Wiring Method: Back and side wiring; integral wire leads (6 in., #12 AWG) where provided
-
Terminal Type: Screw terminals (back and side)
-
Mounting Type: Screw mount, flush/recessed
-
Dimensions: 3.29 x 1.65 x 1.27 in
-
Wattage: 2500 W
-
Dielectric Withstand: Withstands 2,000 V minimum
-
Operating Temperature: -40 to 75 deg C
-
Enclosure / IP Rating: IP20
-
Flammability Rating: UL 94 V-0 and 5VA
-
Certifications: UL 498; CSA C22.2 No. 42; Federal Specification W-C-596; NEMA WD-6; NEMA WD1/WD5; UL498 File E2186
-
Standards: Meets UL 498, CSA, Federal Specification W-C-596, NEMA WD-6
-
Number Of Gangs: 1
-
Mount Hole Center-to-Center Height: 3.3 in
-
Face Plate Height: 2.75 in
-
Overall Depth: 1.27 in
