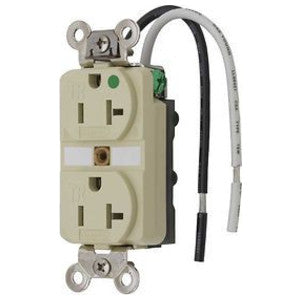

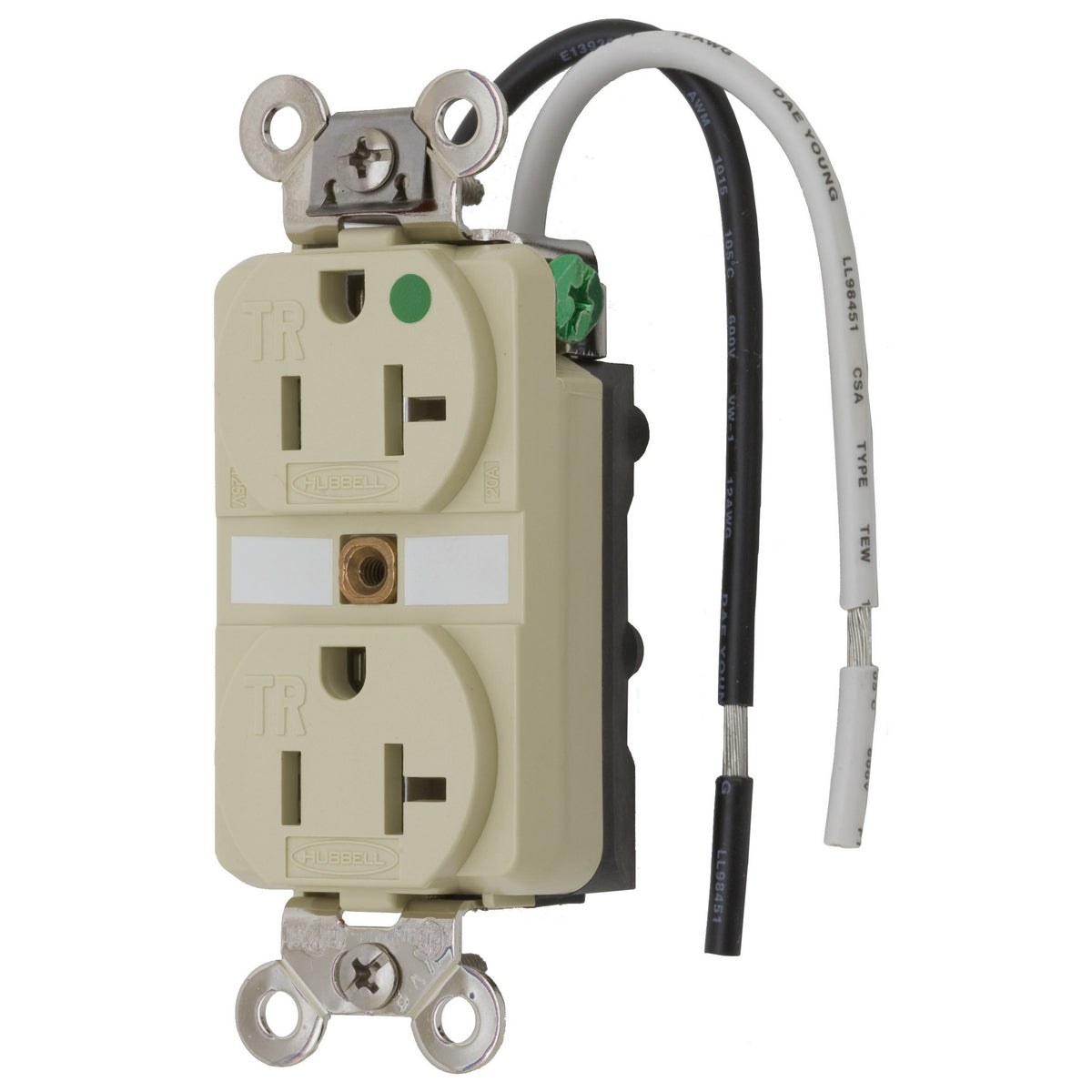

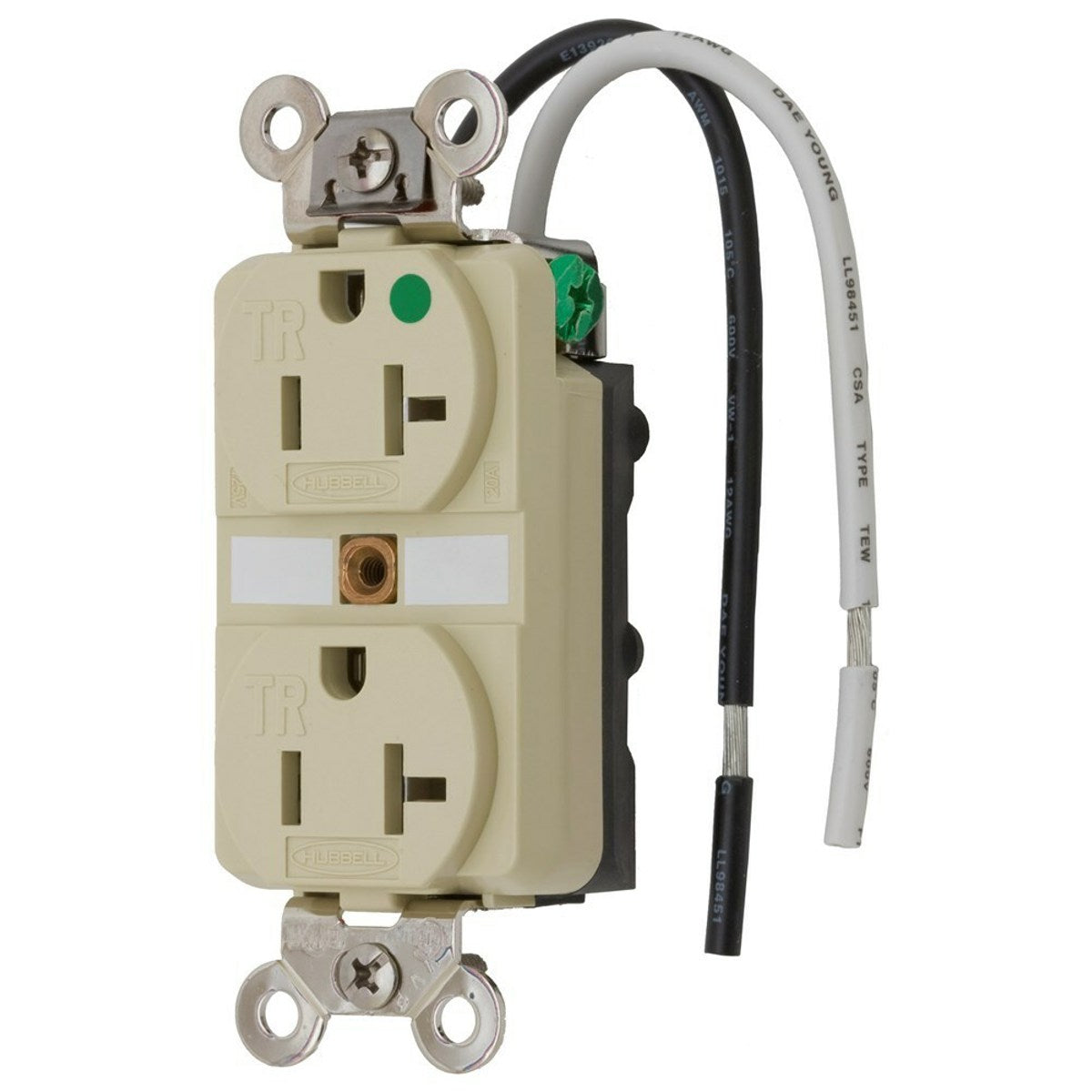

Hubbell HBL8300SGIA Straight Blade Duplex Receptacle 20A 125V 5-20R

Product Description

The Hubbell HBL8300SGIA is a straight blade duplex receptacle designed for hospital grade applications. This device meets and exceeds the UL requirements for safety and performance. Key features include a unique tamper-resistant contact mechanism, integral wire leads for fast installation, and a nickel-plated brass ground strap that enhances reliability.

• 20 Amp, 125 Volt rating
• Tamper-resistant for added safety
• Back and side wired screw terminals for versatile installation

Product Highlights

This receptacle is suitable for heavy-duty applications, making it ideal for healthcare facilities requiring consistent and secure electrical connections.

Product Information

Standard Information

• Catalog Number: HBL8300SGIA
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 20
• Voltage Rating: 125
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Size: 3.29 inches x 1.65 inches x 1.27 inches
• Color: Ivory
• Material: Thermoplastic
• Wire Size: #12 AWG to #10 AWG
• Environmental Conditions: Indoor Dry Unless Protected
