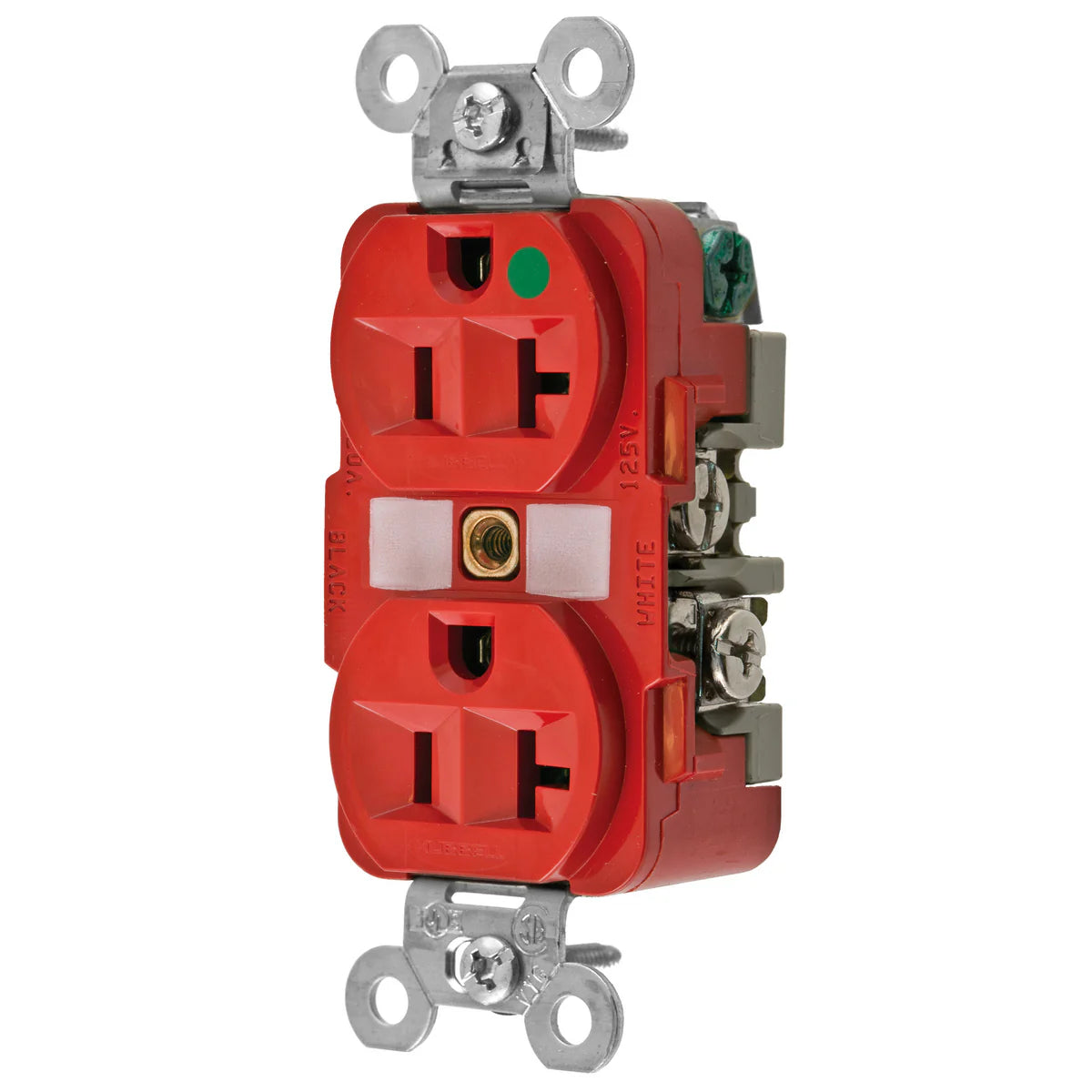

Hubbell HBL8300RED DUP RCPT, HG, 20A 125V, 5-20R, RD

Product Description

The Hubbell HBL8300RED is a one-phase duplex receptacle designed for heavy-duty applications. Rated for twenty amps and one hundred twenty-five volts, this receptacle is suitable for commercial and industrial use. Its construction includes a thermoplastic body and a hospital-grade rating, making it ideal for environments with higher safety requirements.

• Deep body design with circuit ID face
• Patented ground contact for improved safety
• Durable thermoplastic material

Product Highlights

This receptacle features a hospital-grade designation, a NEMA five-twenty R rating, and operates efficiently in a temperature range of negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358524753

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Temperature Rating: -40 to 75 deg C
• Colors: Red
• Dimensions: 3.28 x 1.65 x 1.19 inches
• Material: Thermoplastic
• Number of Wires: 3
• NEMA Rating: 5-20R
