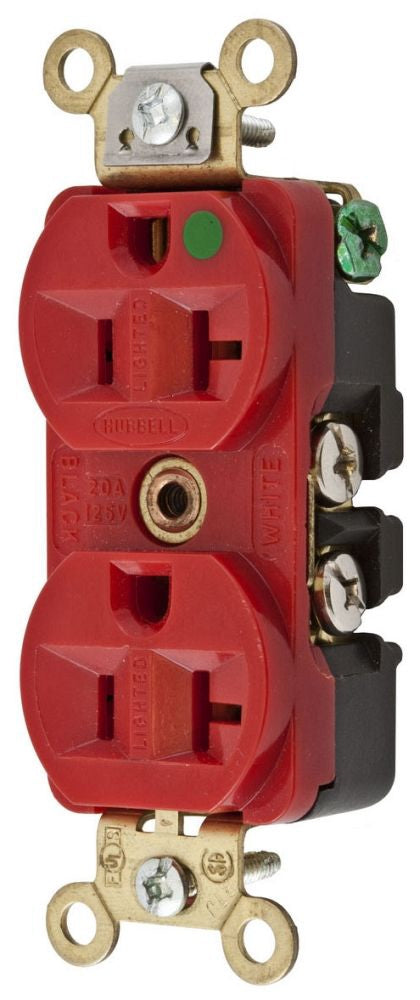

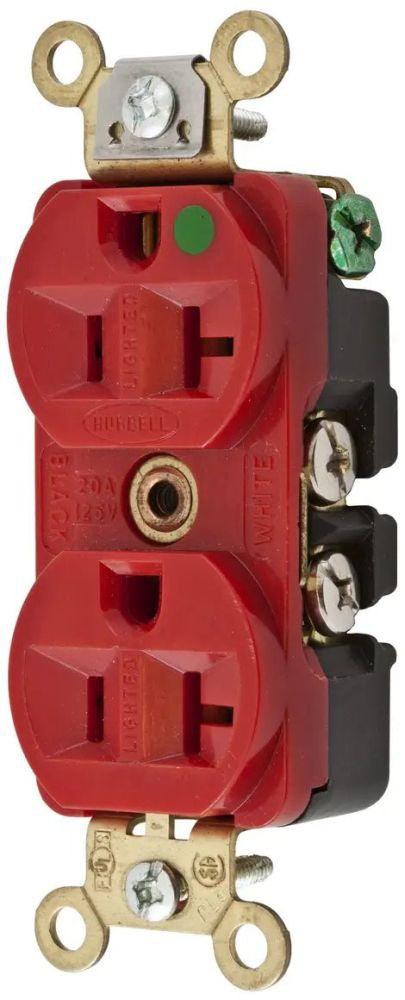

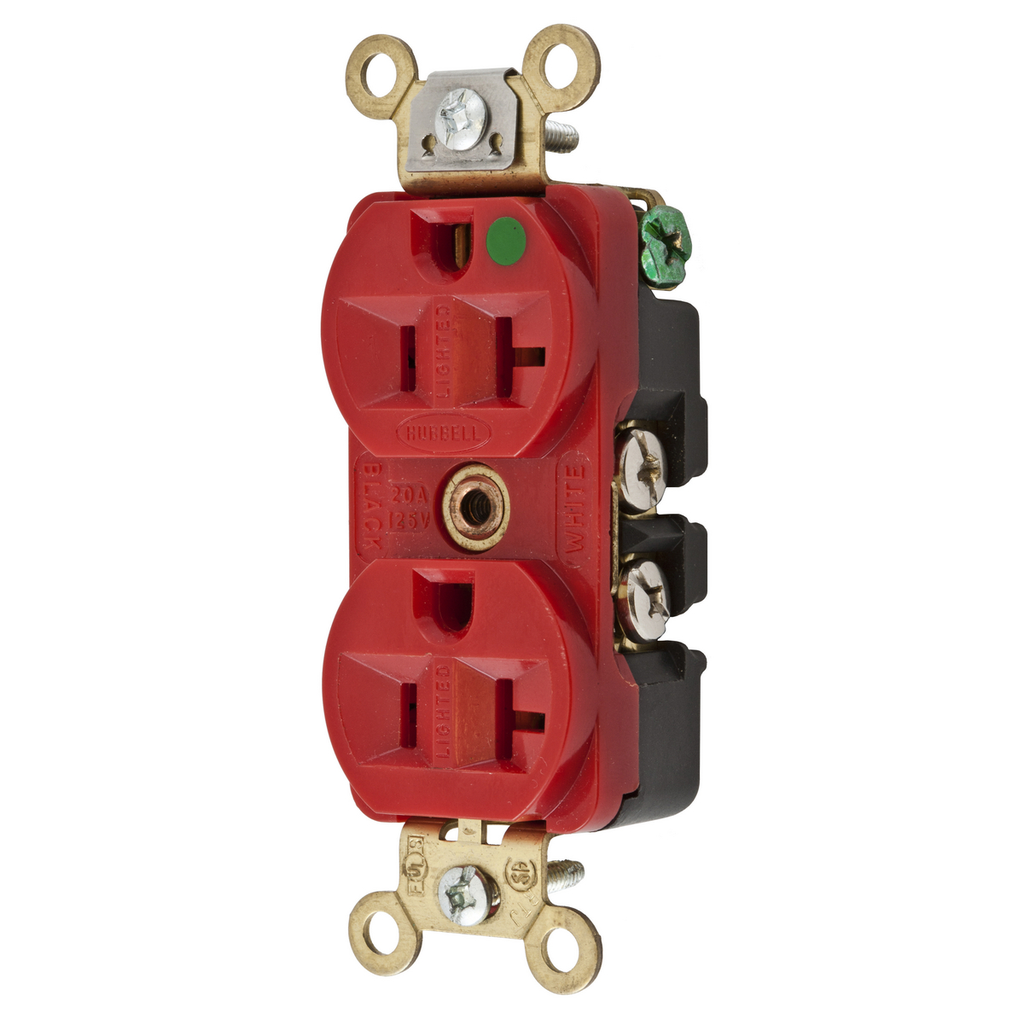

Hubbell HBL8300ILR HUBBELL DUP RCPT, HG, 20A 125V, 5-20R, IL, RD 78358501650

Product Description

The Hubbell HBL8300ILR is a durable straight blade receptacle designed for various applications. This 1-phase duplex receptacle is suitable for both professional and residential use.

• Rated for 20 amps and 125 volts
• Made from polycarbonate material
• Features back and side wire/screw terminals

Product Highlights

The receptacle is hospital grade and has a NEMA 5-20R rating, making it ideal for medical facilities and areas requiring high standards of safety.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL8300ILR

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 deg C
• Material: Polycarbonate
• Enclosure: IP20
• Grade: Hospital
• Dimensions: 3.28 inches x 1.33 inches x 1.05 inches
• Standards/Approvals: UL 498, CSA C22.2, Federal Specification W-C-596
