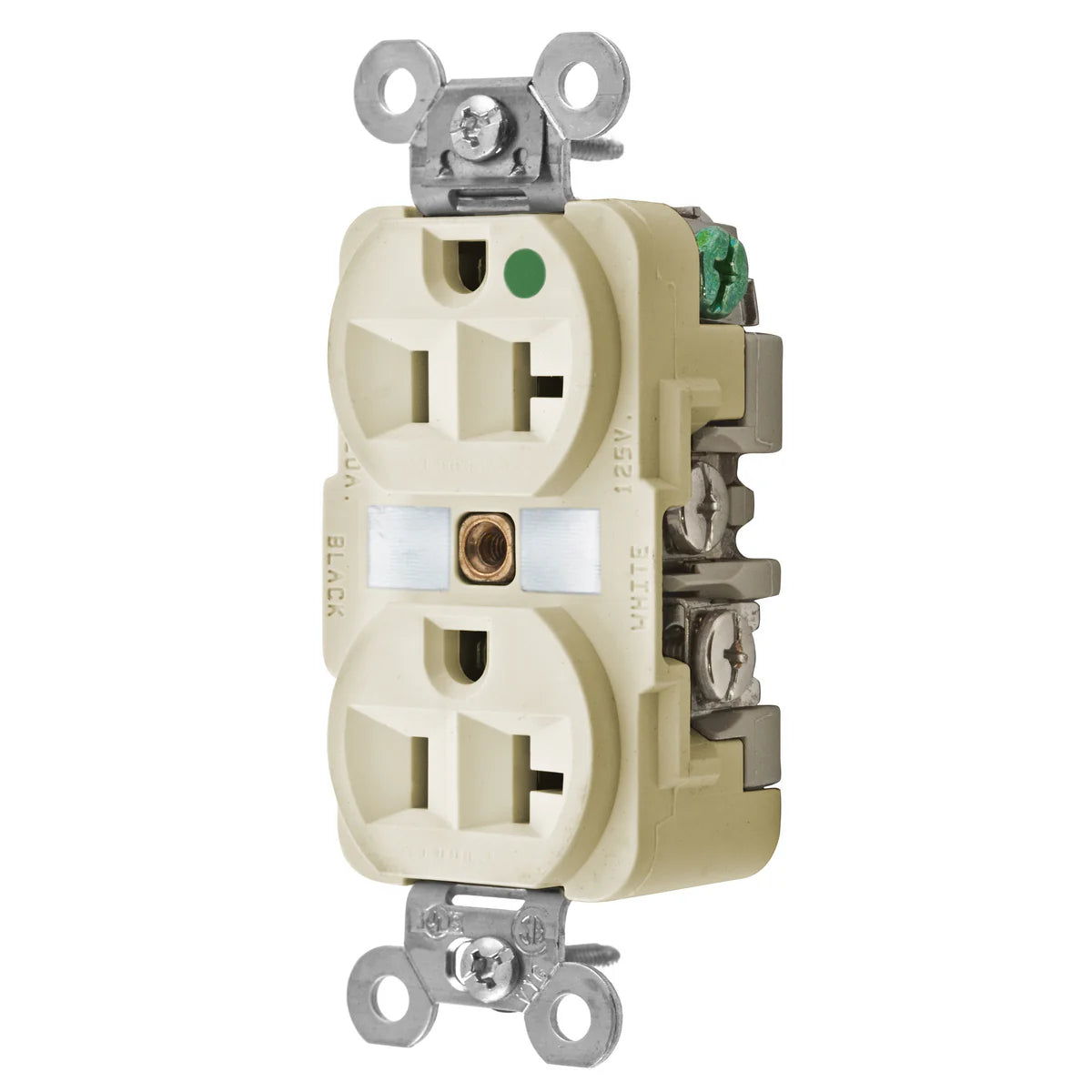

Hubbell HBL8300I HUB IVORY RECEPT HOSPITAL 125 VAC 20 A

Product Description

The Hubbell HBL8300I is a straight blade receptacle designed for hospital use. It is a one-phase duplex, extra heavy-duty, self-grounding receptacle suited for demanding environments. This model operates at 125 VAC and supports a maximum current of 20 A. It features two poles and three wires, along with a 5-20R NEMA rating, making it ideal for various hospital applications.

• Hospital grade designation
• Designed for extra heavy-duty use
• Temperature rating from negative forty to seventy-five degrees Celsius

Product Highlights

This receptacle ensures safety and durability in hospital settings, meeting the highest standards for electrical components.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL8300I

Technical Specifications

• Amperage Rating: 20 A
• Color: Ivory
• Dimensions: 3.28 x 1.65 x 1.19 inches
• Enclosure: IP20
• Grade: Hospital
• Horsepower: 1 hp
• Material: Thermoplastic
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Voltage Rating: 125 VAC
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Back and Side Wire/Screw
• Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42, UL 94-V-0, NEMA WD1/WD5/WD6
