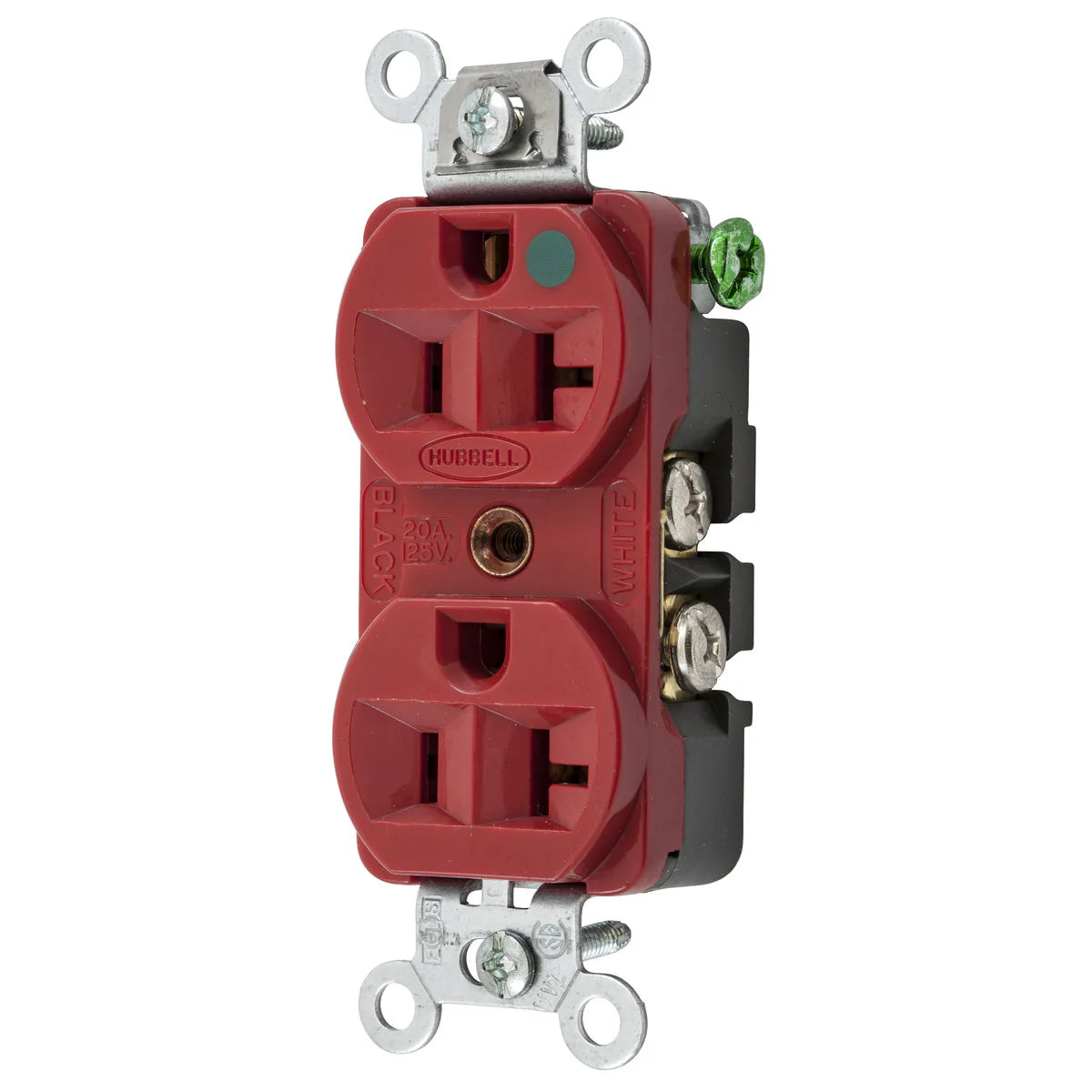

Hubbell HBL8300HRED DUP RCPT, COM/HG, 20A 125V, 5-20R, RD

Product Description

The Hubbell HBL8300HRED is a 1-phase duplex extra heavy duty grounding straight blade receptacle. It is designed for reliable use in indoor dry environments. This receptacle operates at 125 VAC and has a current rating of 20 A.

• Features a hospital grade design.
• Rated for 1 horsepower and compatible with 14 to 12 AWG wire sizes.
• Includes back and side wire/screw terminals for easy installation.

Product Highlights

This receptacle is ideal for use in healthcare and commercial settings where durable and reliable electrical connections are necessary.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: HBL8300HRED

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 3.28 x 1.33 x 1.05 inches
• Temperature Rating: -40 to 75 degrees C
• NEMA Rating: 5-20R
• Material: Nylon
• Enclosure: IP20
• Series: HBL®
• Standards/Approvals: UL 498 File No. E2186, CSA C22.2 No. 42/285, NEMA WD1/WD5
