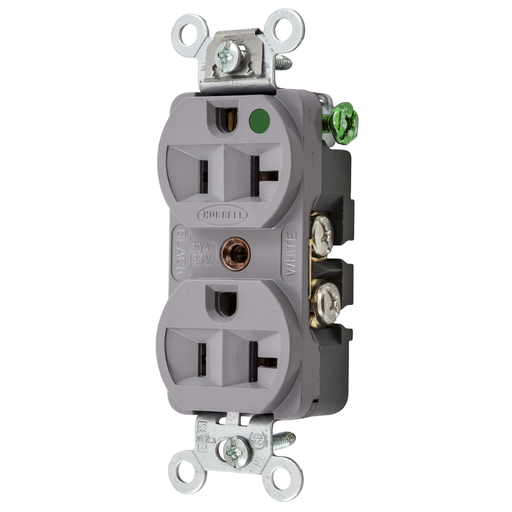

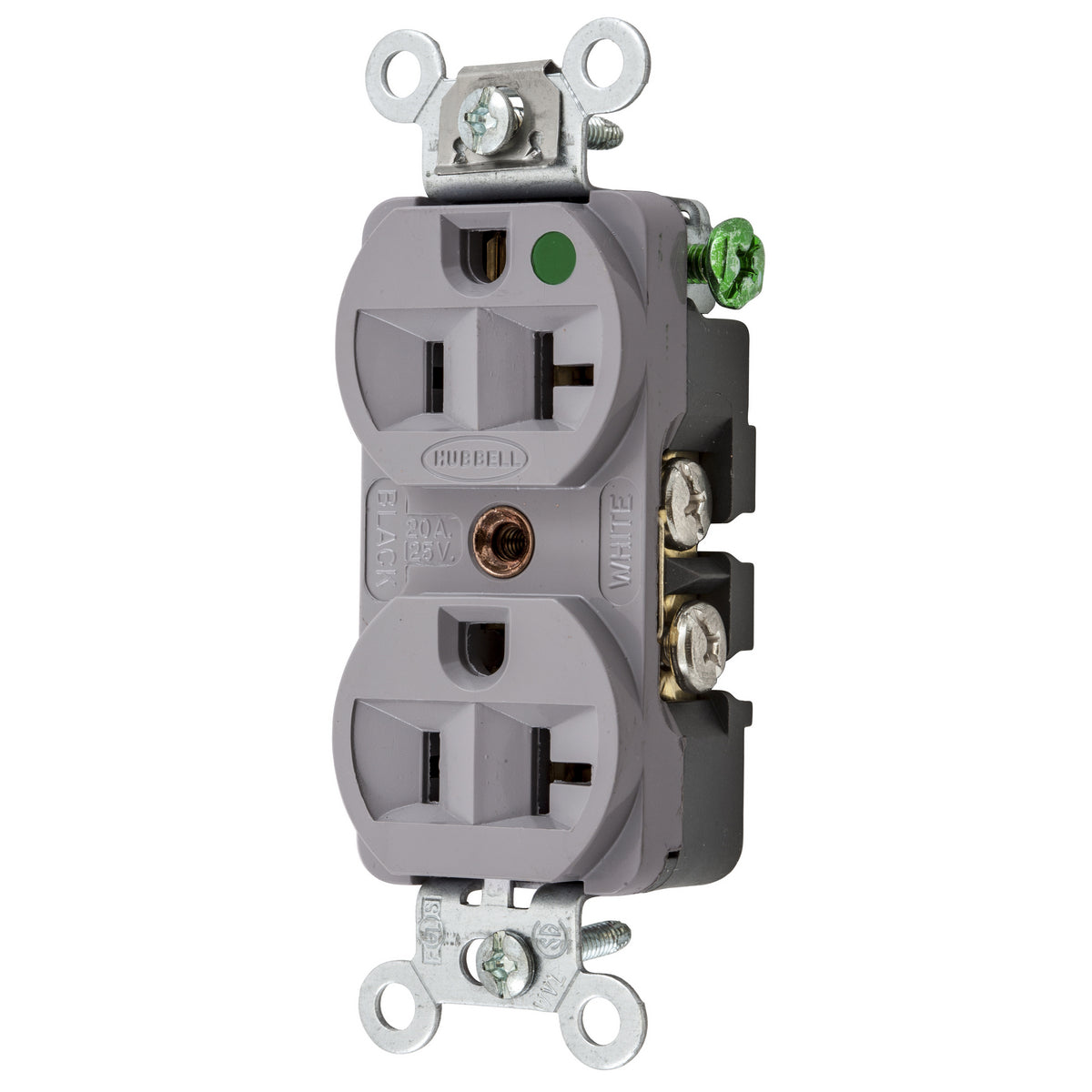

Hubbell HBL8300HG 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Gray Straight Blade Duplex Receptacle

Product Description

The Hubbell HBL8300HG is a 20 Amp, 125 Volt duplex receptacle designed for demanding environments, particularly in healthcare facilities. This hospital-grade receptacle features a compact design and meets stringent UL standards for safety and reliability.

• 20 Amp, 125 Volt rating for heavy-duty applications.
• Compact hospital-grade construction ensures durability and performance.
• NEMA 5-20R configuration suitable for various electrical needs.

Product Highlights

This receptacle is equipped with a self-grounding feature for safety. It incorporates triple wipe contacts for improved electrical performance and has an impact-resistant design that helps prevent damage in high-use settings.

Product Information

Standard Information

• Catalog Number: HBL8300HG
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 20 Amp
• Voltage Rating: 125 Volt
• NEMA Rating: 5-20R
• Number of Wires: 3 Wire
• Number of Poles: 2 Pole
• Wire Size: #12 AWG to #10 AWG
• Environmental Conditions: Indoor dry unless protected by additional means
• Dimensions: 3.28 in length x 1.33 in width x 1.05 in height
• Weight: 0.25 lb
• Material: Thermoplastic
• Style: Finder Groove Face
• Mounting Type: Screw
• Dielectric Strength: Withstands 2,000V minimum
• Grade: Hospital Grade
• Country of Origin: USA
