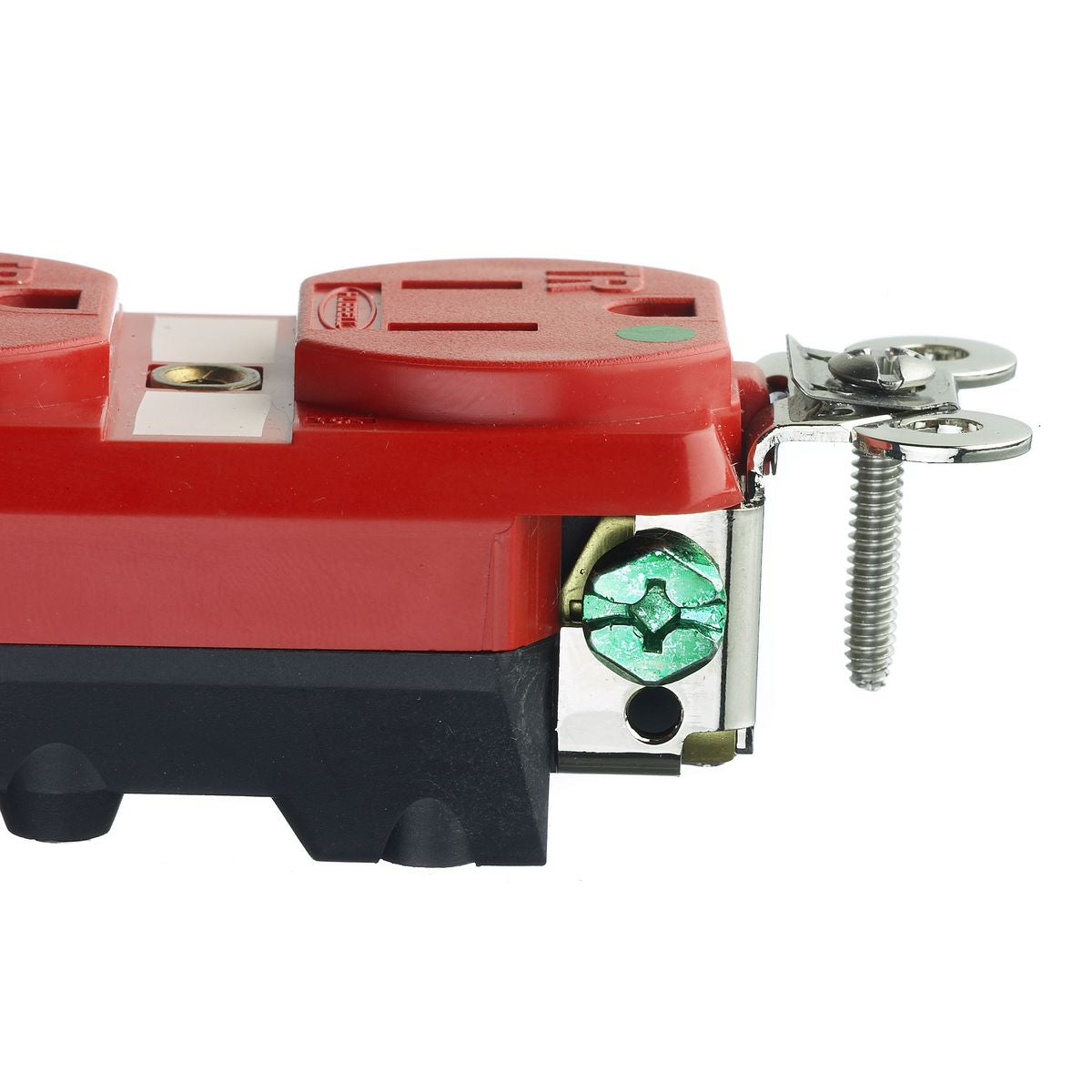

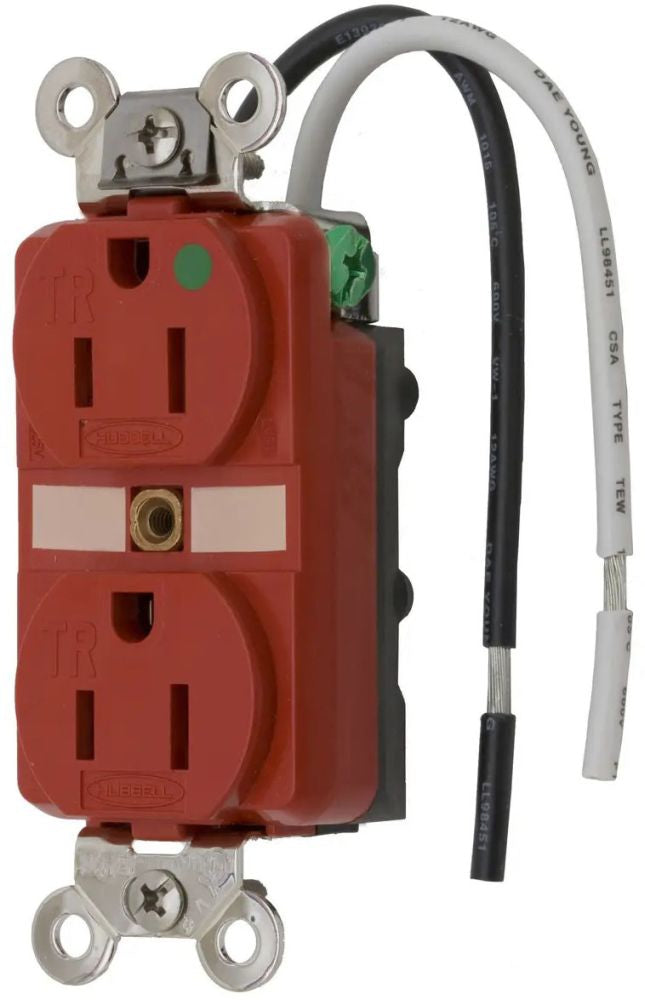

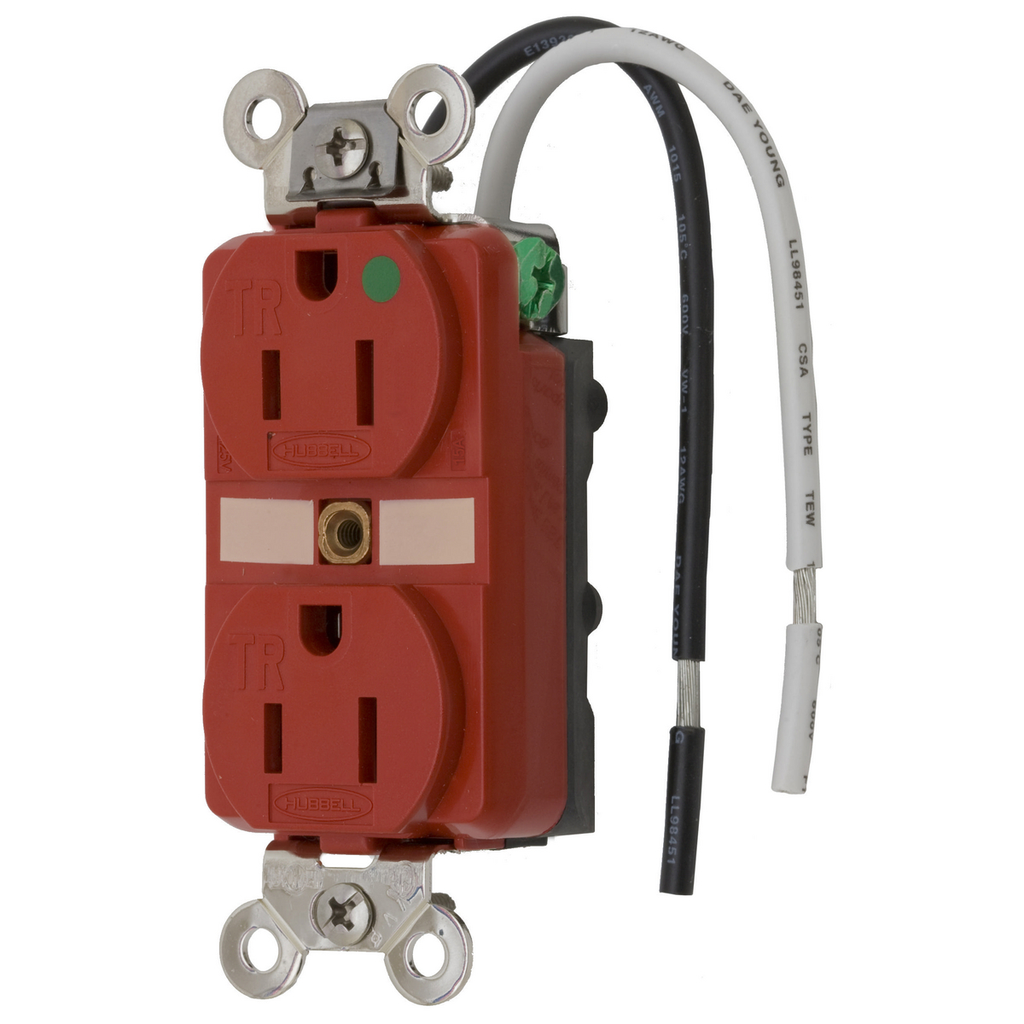

Hubbell HBL8200SGRA Duplex Receptacle 15A 125V (Straight)

Product Description

The Hubbell HBL8200SGRA is a tamper-resistant, hospital-grade duplex receptacle rated 15 A at 125 V (NEMA 5-15R) designed for flush-mount installations. It features a polybutylene terephthalate face and base, brass contact/strap, and integral wire lead for installation. The device is rated for -40 to 75 °C operation, meets UL and CSA standards, and is intended for extra heavy-duty hospital or heavy-use environments.

• Rated 15 A, 125 V (NEMA 5-15R) tamper-resistant duplex receptacle with 2 poles and 3 wires
• Extra heavy-duty hospital grade construction with PBT face/base and brass contacts; operating temperature -40 to 75 °C
• Includes wire leads; supports #12 to #10 AWG and meets UL 498, CSA C22.2, Fed. Spec. W-C-596, and NEMA standards

Product Highlights

Tamper-resistant hospital-grade duplex receptacle, integral wire leads, UL/CSA certified

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL8200SGRA
• Country of Origin: China

Technical Specifications

• Brand: Hubbell
• MPN: HBL8200SGRA
• Type: Duplex Receptacle
• NEMA Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 A
• Wattage: 1875 W
• Maximum Horsepower: 0.5 hp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Tamper Resistant: Yes
• Device Grade: Extra heavy-duty, Hospital Grade
• Material: Polybutylene Terephthalate (PBT) face/base; thermoplastic housing
• Contact/Strap Material: Brass
• Wire Connection Type: Wire leads; screw terminals (back/side)
• Wire Size: #12 AWG to #10 AWG
• Mounting Type: Flush (screw mounting)
• IP Rating: IP20
• Operating Temperature: -40 to 75 °C
• Dielectric Withstand Voltage: Withstands 2,000 V minimum
• Flammability Rating: UL 94 V-0; 5VA
• Dimensions: 3.29 in x 1.65 in x 1.27 in
• Individual Weight: 0.35 lb
• Country Of Origin: China
• Approvals/Certifications: UL 498; CSA C22.2 No. 42; Federal Specification W-C-596; NEMA WD-6; UL Listed File E2186; NEC
