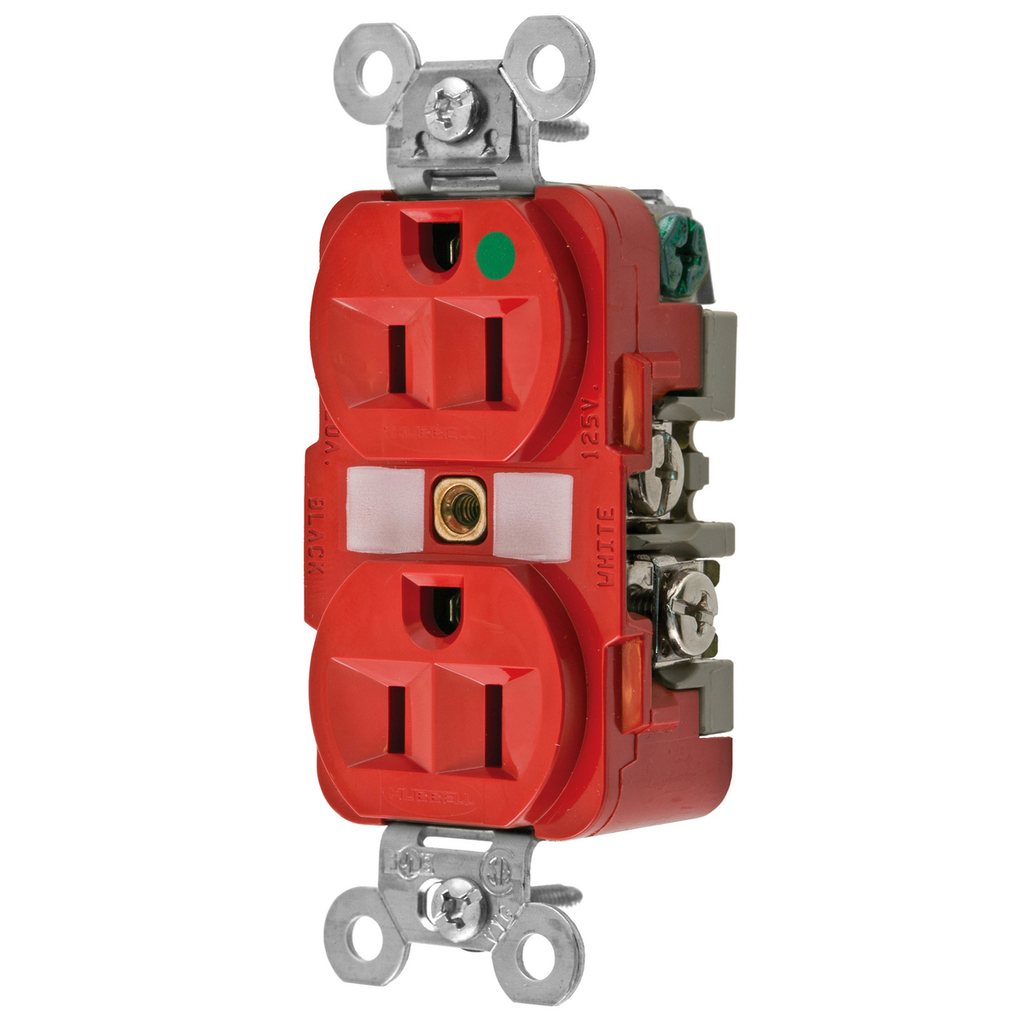

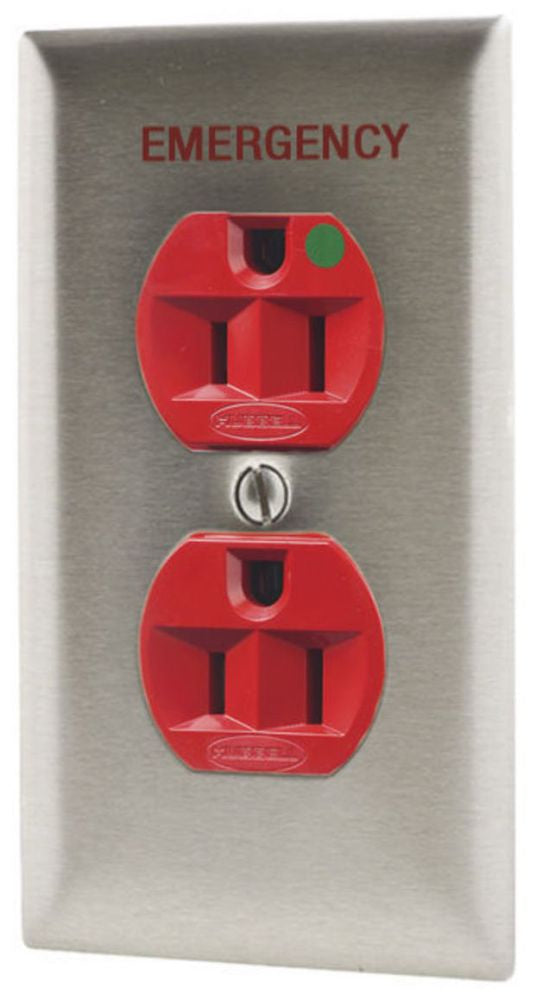

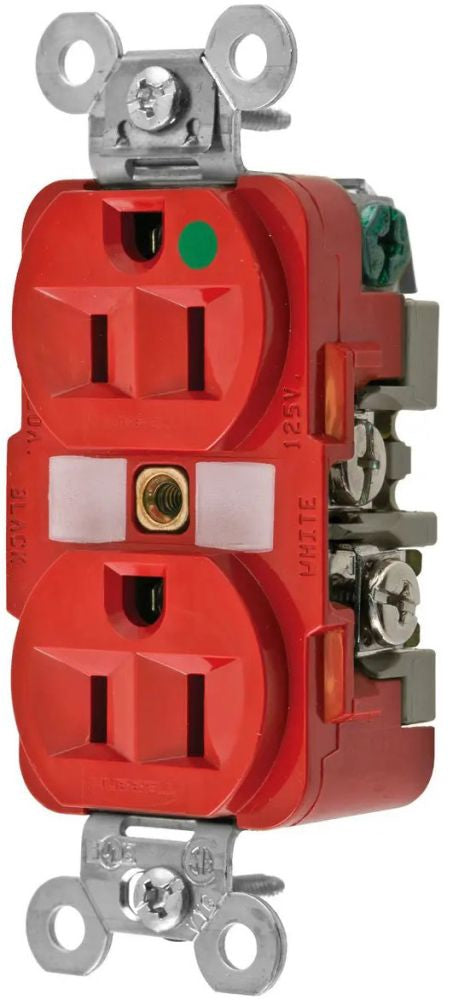

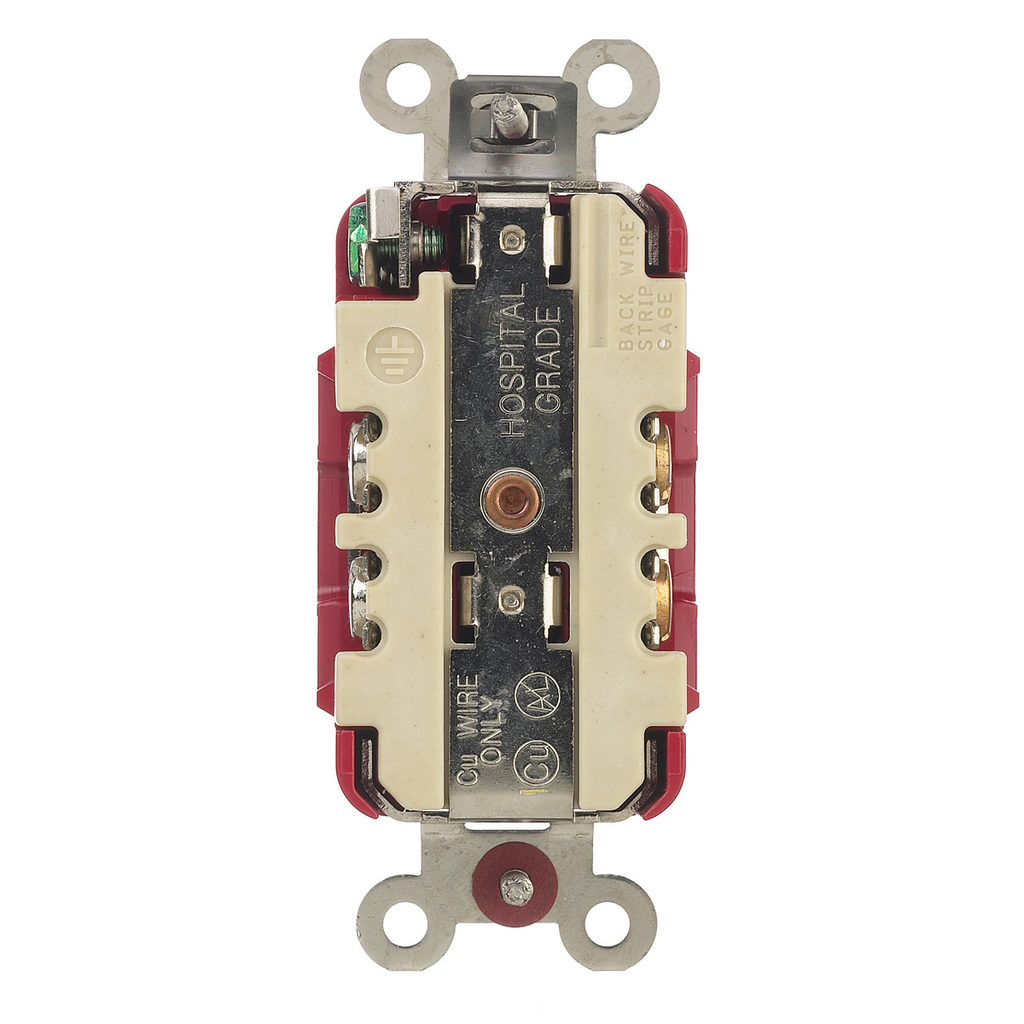

Hubbell HBL8200RED Hubw Dup Rcpt, Hg, 15A

Product Description

The Hubbell HBL8200RED is a straight blade receptacle designed for reliable power connection. It features a traditional duplex configuration and is rated for 125 Volt AC. This receptacle handles up to 15 Amps and is suitable for a variety of electrical applications.

• Rated for 125 Volt AC
• 15 Amp current rating
• UL and CSA approved for hospital applications

Product Highlights

This receptacle has been constructed using thermoplastic polyester to ensure durability and safety in various environments. It is designed for heavy-duty use, making it ideal for hospitals and other critical settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358524752

Technical Specifications

• Type: Flush Face Duplex
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Power Rating: 0.5 HP, 1875 Watt
• Dielectric Voltage: 2000 Volt
• Wire Size: 14 to 10 AWG
• Temperature Rating: -40 to 75 Deg C
• Applicable Standards: Federal Specification W-C-596, NEMA WD-6
